2002 Buell P3: Electrical 7-19
HOME

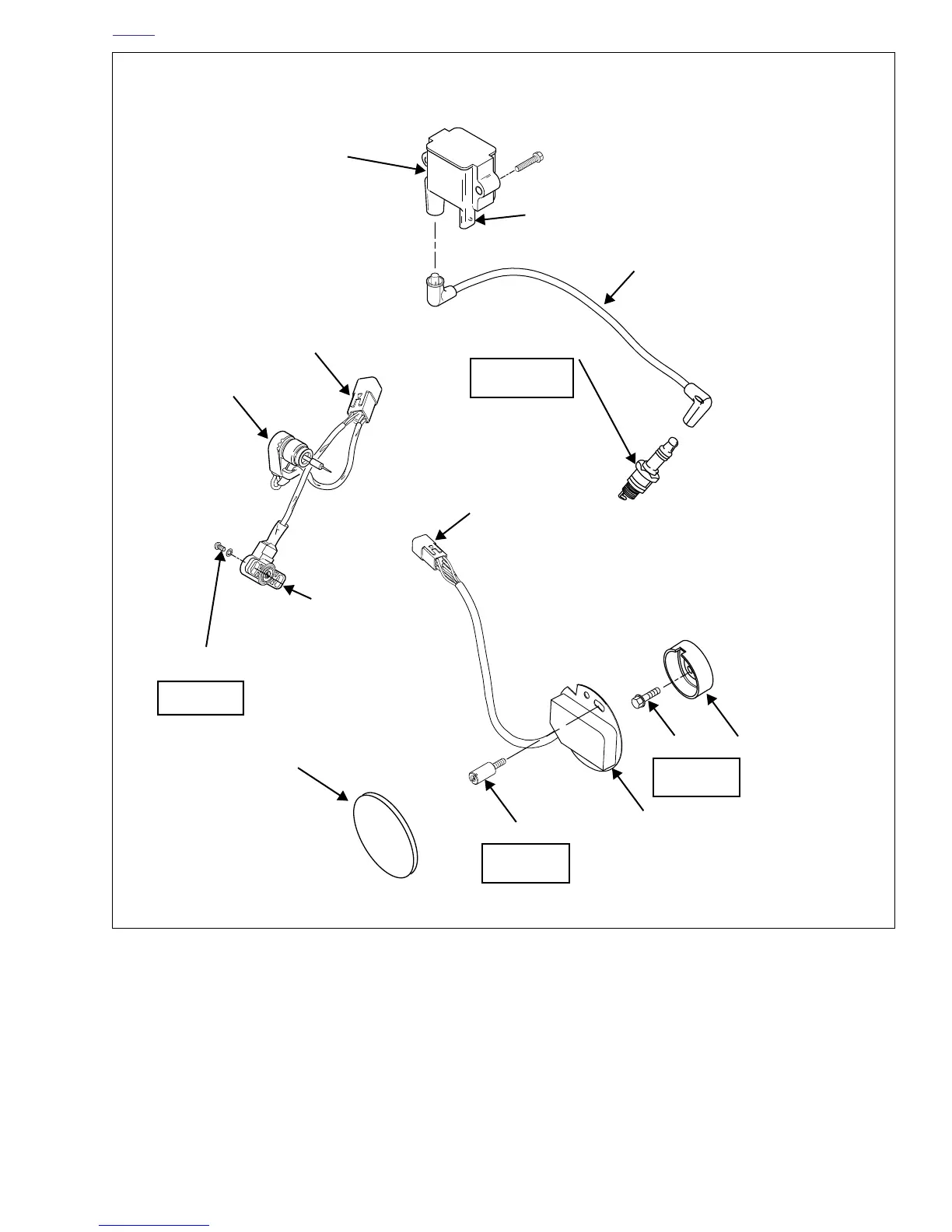

Figure 7-19. Ignition Module/Cam Position Sensor
a0277x7x
10R12 Spark Plug
11-18 ft-lbs
(14.9-24.4 Nm)
Spark Plug Cable
Rotor Cup
Integrated Ignition Module
with Cam Position Sensor
(Module Plate)
Ignition Coil
Timer Cover
Throttle
Position
Sensor (TP Sensor)
Connector [10]
Connector [88]
Auto Enrichener
Module Plate Screws (2)
15-30 in-lbs
(1.7-3.4 Nm)
43-53 in-lbs
(4.9-6.0 Nm)
Screw
Tamper-Resistant
T20 TORX Screws
13-23 in-lbs
(1.5-2.6 Nm)
Connector [83A]
