1 Power LED
The power LED glows white while the LinkStation is on.
The power LED blinks white while the LinkStation is booting or shutting down.
If an error occurs, the power LED glows red.
If there is a status message, the power LED glows amber.
2 Function LED
This LED glows white when USB devices have been dismounted, or while waiting for Direct Copy. It blinks
white while the LinkStation is being initialized, while dismounting USB devices, and during Direct Copy.
3 Function Button
Use this button for Direct Copy, dismounting USB devices, and waking up from sleep mode.
4 Fan
Spins to prevent overheating inside. Do not block the fan.
5 Init Button
Press and hold down this button for about 10 seconds to initialize the LinkStation’s admin username and
password, IP settings, and SSL to their factory default values. The effects of this button can be changed in
Settings.
6 Power Switch
Move the switch up and down to power the device on and off.
7 USB 3.2 Gen 1 Port
Compatible USB drives, USB memory devices, digital cameras, and USB UPS devices can be connected. USB
hubs are not supported.
8 USB 2.0 Port
Compatible USB drives, USB memory devices, digital cameras, and USB UPS devices can be connected. USB
hubs are not supported.
9 LAN Port
Connect an Ethernet cable to use this port for your network. It is available for communicating at max. 2.5 Gbps.
10 Link/Act LED
Glows amber when the LinkStation is connected to a network at 10/100 Mbps, or 2.5 Gbps. It blinks when the
connection is experiencing activity.
11 Link/Act LED
Glows green when the LinkStation is connected to a network at 1000 Mbps. It blinks when the connection is
experiencing activity.

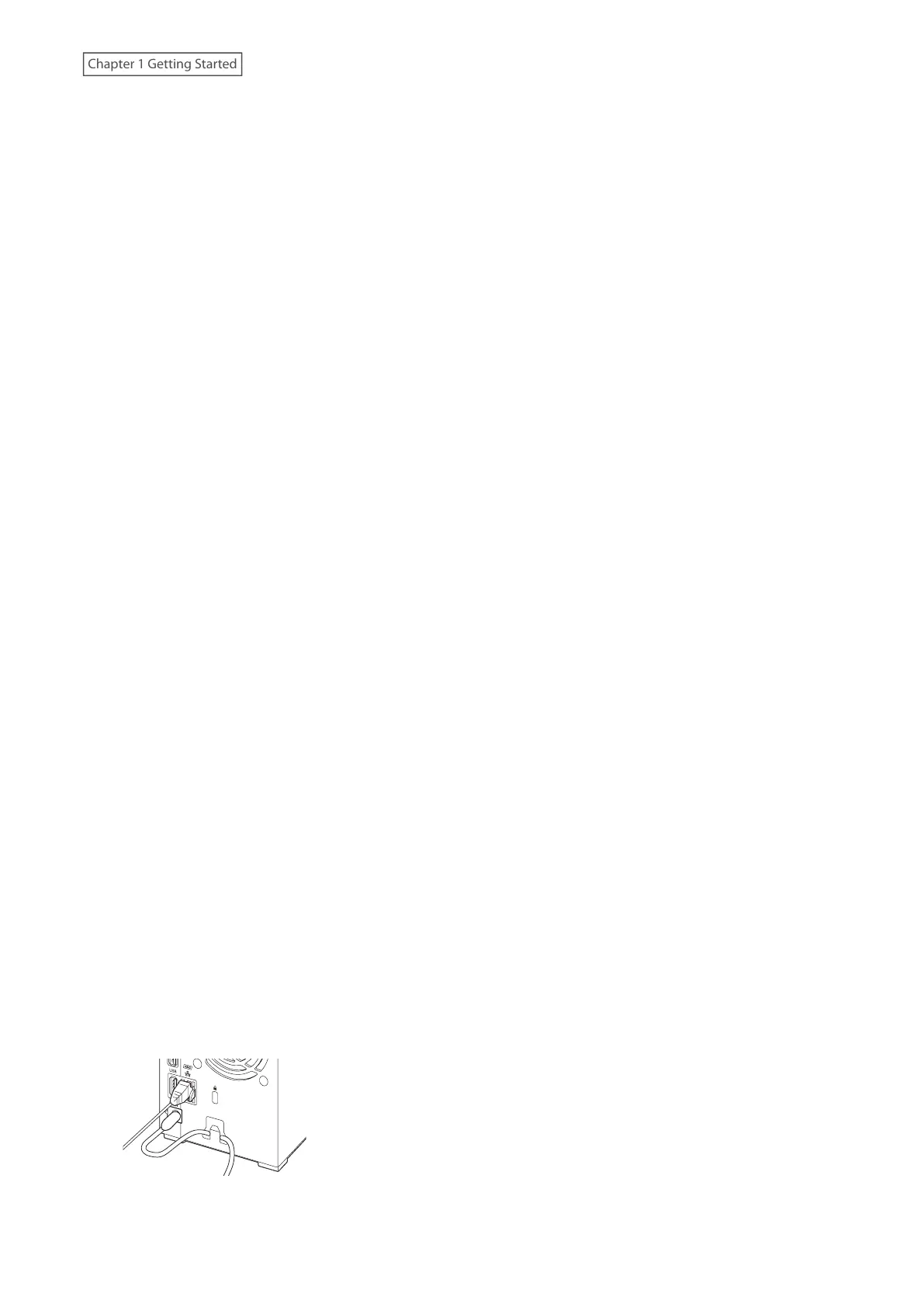

12 Power Connector
Use the included power cable to connect to a UPS, surge protector, or outlet. To prevent disconnecting the AC
adapter accidentally, use a hook when connecting the power cable to the LinkStation as illustrated below:
