Burkert 8681 - Page 121

121

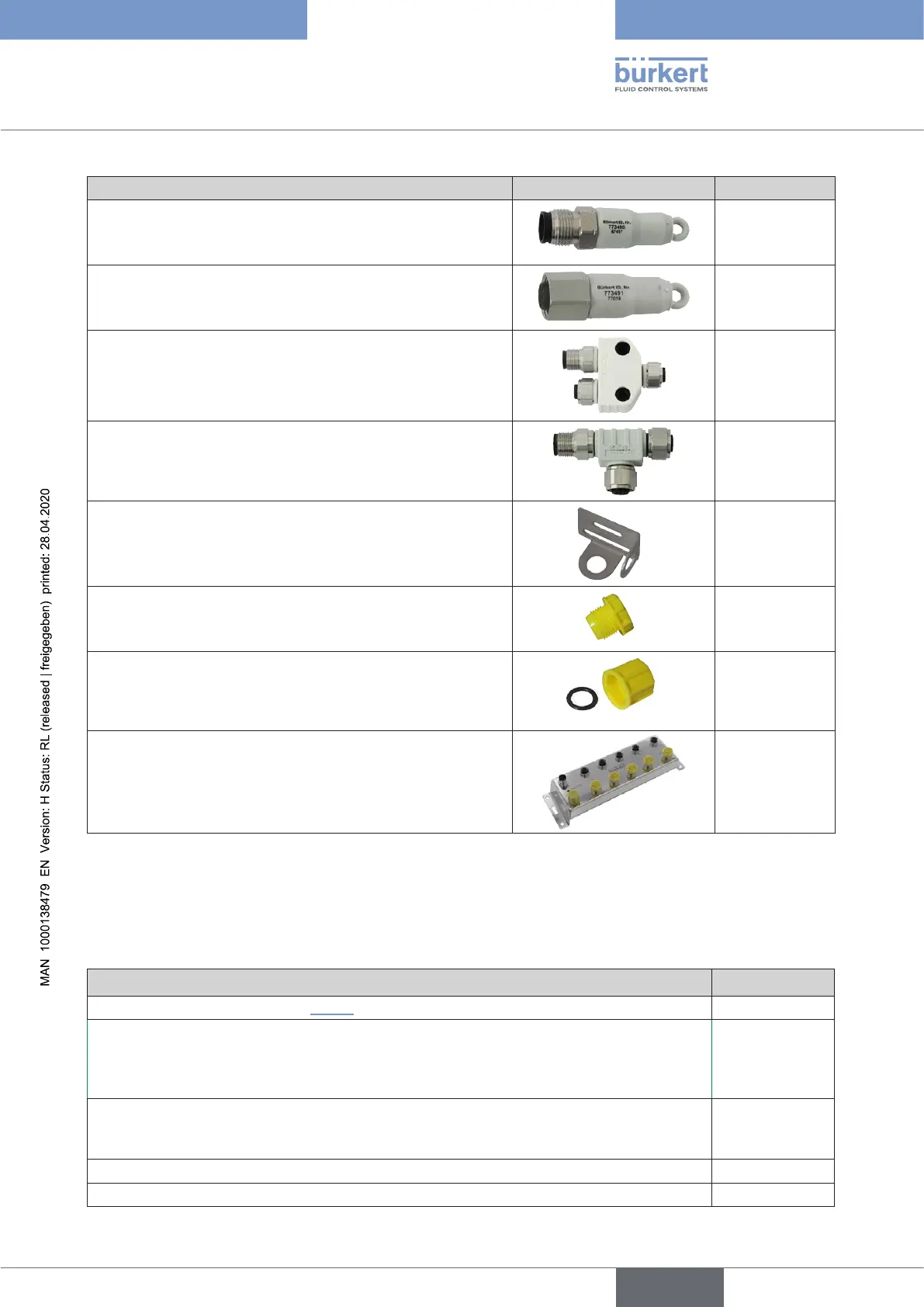

Accessories for büS devices
Accessories Figure Order / ID no.
CAN terminating resistor, M12 plug
*), 120Ω 773490
CAN terminating resistor, M12 socket *), 120Ω 773491
CANY-connector,M12 *) 773492
CAN T-connector, M12 *) 773493
MountingplateforCANT-connector(M12) 773494
Protective cap for M12 socket
forclosingunnecessary(open)connections
(10protectivecapsperpack)
308778
ProtectivecapforM12plugincludingO-ring8x2N-NBR
70
(10capsand10O-ringsperpack)
forclosingunnecessary(open)connections
308785
CAN junction box, M12 *)
for connection up to 8 devices to the bus
(6connectionshavealreadybeenclosedwithappropriate
protectivecaps)
338398
*) Required tightening torque
forallplug-inconnections(cables,T-pieces,...)toensuretherequiredleak-
tightness against moisture: 0.6 Nm + 0.1 Nm.
Alternatively,
DeviceNetcablingcomponents(e.g.fromRockwellAutomation)canalsobeused.However,
they must comply with the necessary requirements when used in the “Hygenic area”, because not all of
thesepartshavetherequiredqualitysuchasstainlesssteelorPPorPPEorPVC.
Standard service equipment (not suitable for “hygienic requirements”) Order/ID No.
Magneticmanualoverride(see„22.1“)forswitchingsolenoidvalve1(2/A1) 796131
USB büS interface set 1
–casewith“USB-büSinterfaceset2”aswellaspowersupply
unit,adaptercablewithM12plug/wires,adapterM12plugtoM12plug,Y-pieceM12
plugto2xM12socket,CD-ROMBürkertCommunicator),etc.(fordeviceswithbüSor
servicebüS(8681büS/CANopen,8681IO-Link))
772426
USB büS interface set 2 – contains: büS stick, programming cable M12 socket to mini
USBplugand24VDCsocket,büSadapterM12plugtomicroUSBplug(fordeviceswith
servicebüS(8681IO-Link))
772551
Extension cable, M12 plug and socket, length 1 m | 3 m 772404 | 772405
Extension cable, M12 plug and socket, length 5 m | 10 m 772406 | 772407
english
Control Head Type 8681
