DeviceNet - Design
13.9 Network topology of a DeviceNet system
When installing a DeviceNet system, ensure that the terminating circuit of the data lines is correct. The circuit
preventstheoccurrenceofinterferencecausedbysignalsreectedontothedatalines.
The trunk line must be terminated at both ends with resistors of 120 Ωand1/4Wpowerloss(see“Fig. 30:
Networktopology”).
“Fig.30” illustrates a line with one trunk line and several drop lines. Trunk lines and drop lines consist of
identical material.
Trunk line
DeviceNet cable
Terminating
resistor
120 Ω
¼ W
Terminating
resistor
120 Ω
¼ W
Drop lines
DeviceNet
cable,
max. 6 m long
T01 Tn
Subscriber1(node1) Subscribern(noden)
V +
V –
CAN_H
CAN_L

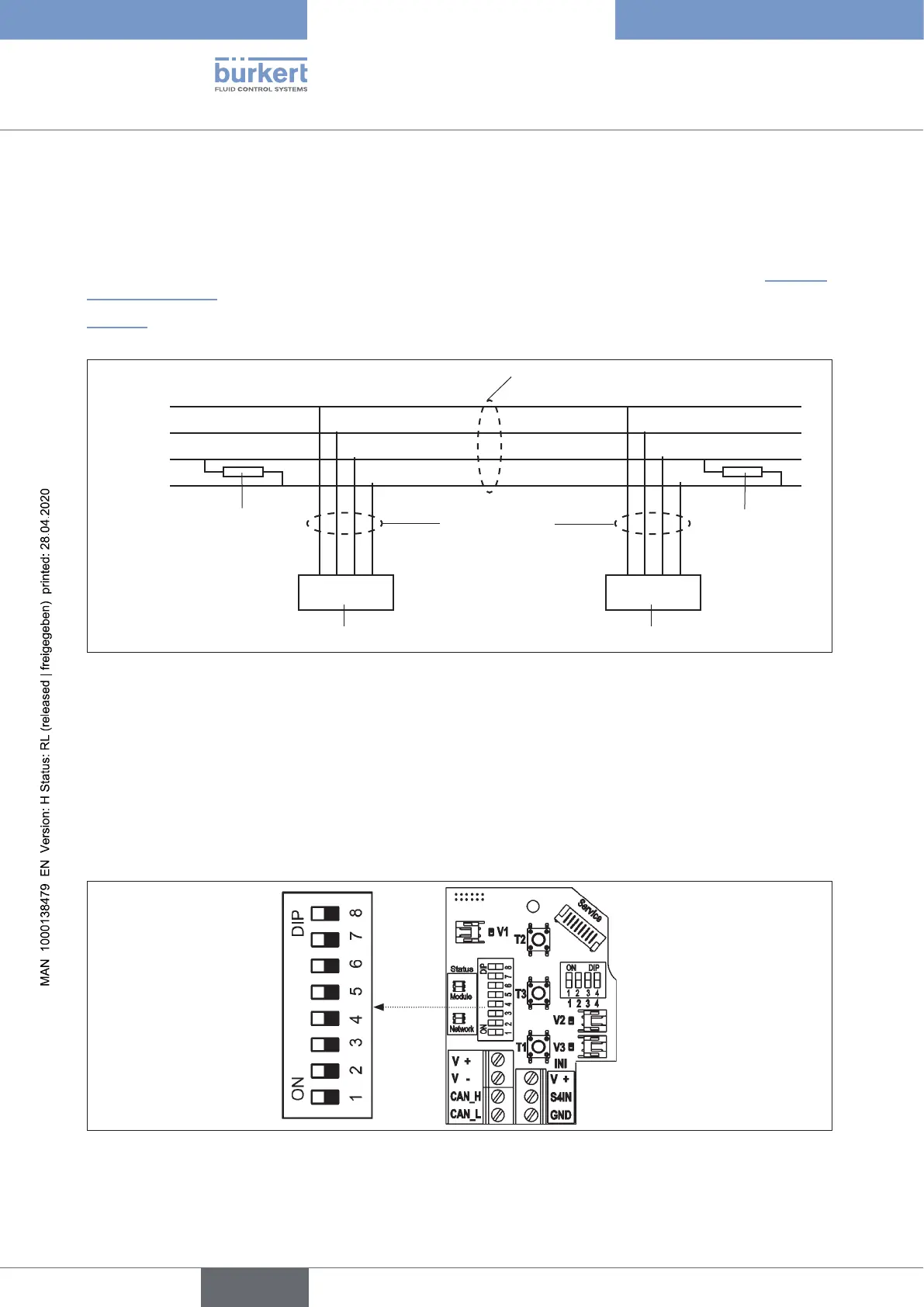

Fig. 30: Network topology
13.10 Conguring the DeviceNet address / baud rate
8DIPswitchesareavailableforconguration:
•• DIPswitches1to6 fortheDeviceNetaddress
•• DIPswitches7to8 forthebaudrate
Fig. 31: Position of the DIP switches for baud rate and addressing
english
Control Head Type 8681
