Burkert 8681 - 17 CABLING EXAMPLES (BÜS;CANOPEN)

To Next Page

To Previous Page

122

Cabling examples (büS/CANopen)

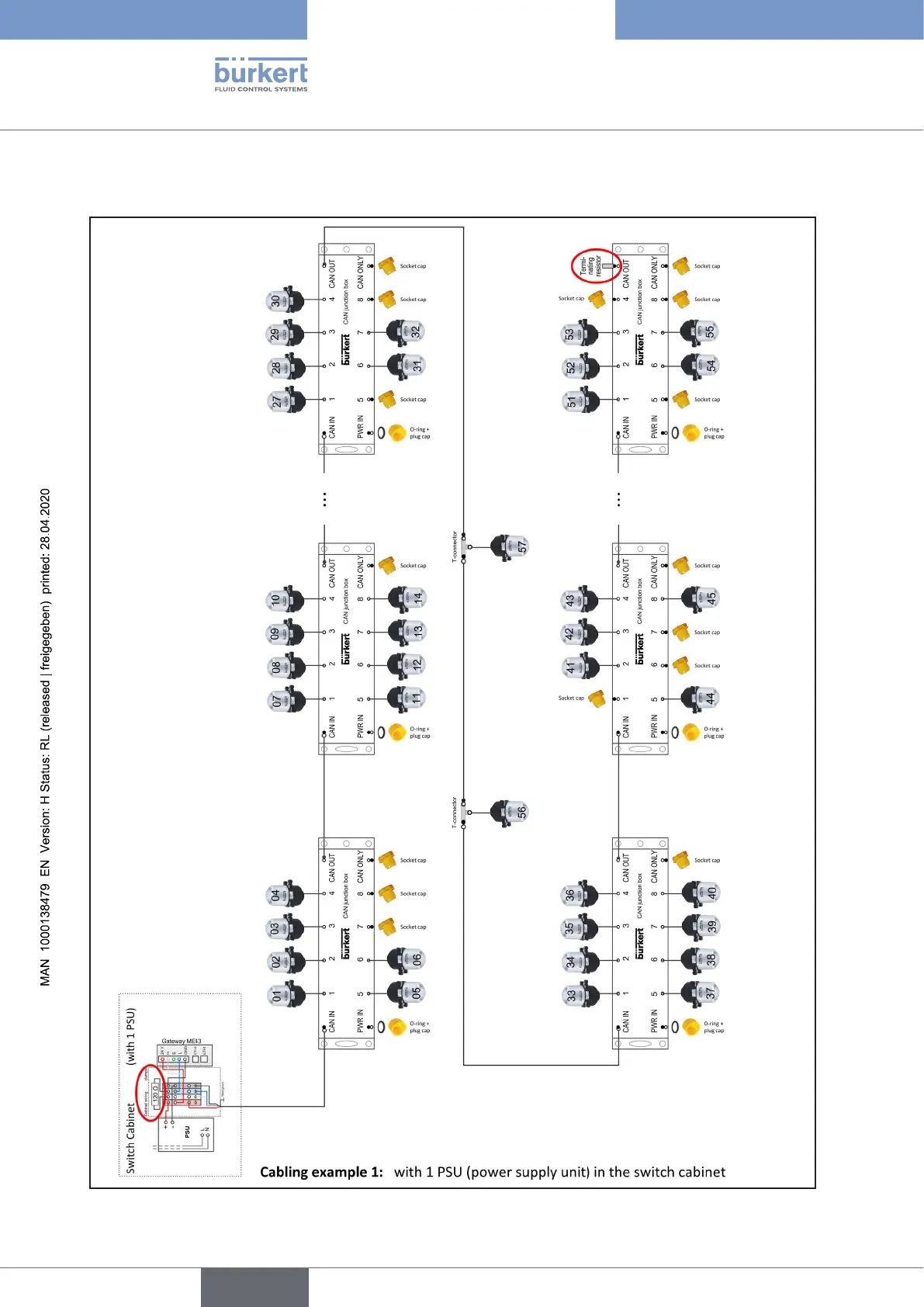

17 CABLING EXAMPLES (BÜS/CANOPEN)

RequiredtighteningtorqueforallM12connections(cables,T-pieces,...),

to ensure the necessary tightness against moisture: 0.6 Nm + 0.1 Nm.

Close all open connections well with protective caps!
