DeviceNet - Design
DeviceNet electronic module:
Solenoid valve connection
with status LED for valve 1
DIP switches for setting the
address and baud rate
Service interface
DIP switches for colour
coding the device sta-
tus LED / Top LED
Connection for the
external initiator
Power supply
DeviceNet
Bussignals
Teach buttons T1-3
Solenoid valve connec-
tions with status LED
for valves 2, 3
Status LED for device
Status LED for network

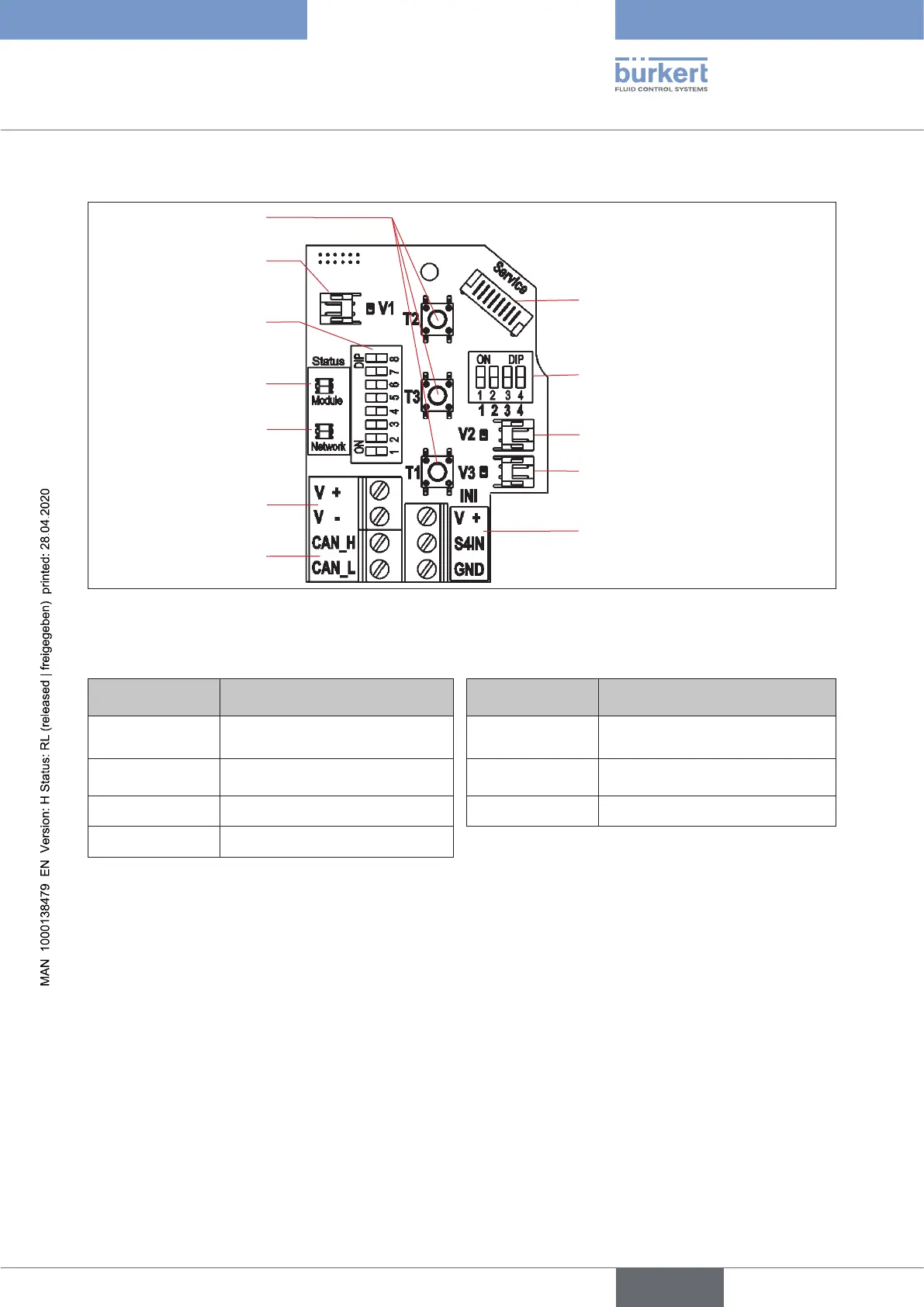

Fig. 29: DeviceNet electronic module
Terminal strip conguration:
Designation
Terminal strip
Conguration
Designation
Terminal strip
Conguration
V+
Power supply
DeviceNet
V +
Power supply for external
initiator
V-
Power supply
DeviceNet
S4 IN External initiator input
CAN_H
BussignalCANhigh GND GND external initiator
CAN_L
BussignalCANlow
