Technical Data

Securing the hood

withleadseal(max.Ø2)

Sealed

M16x1.5(2x)

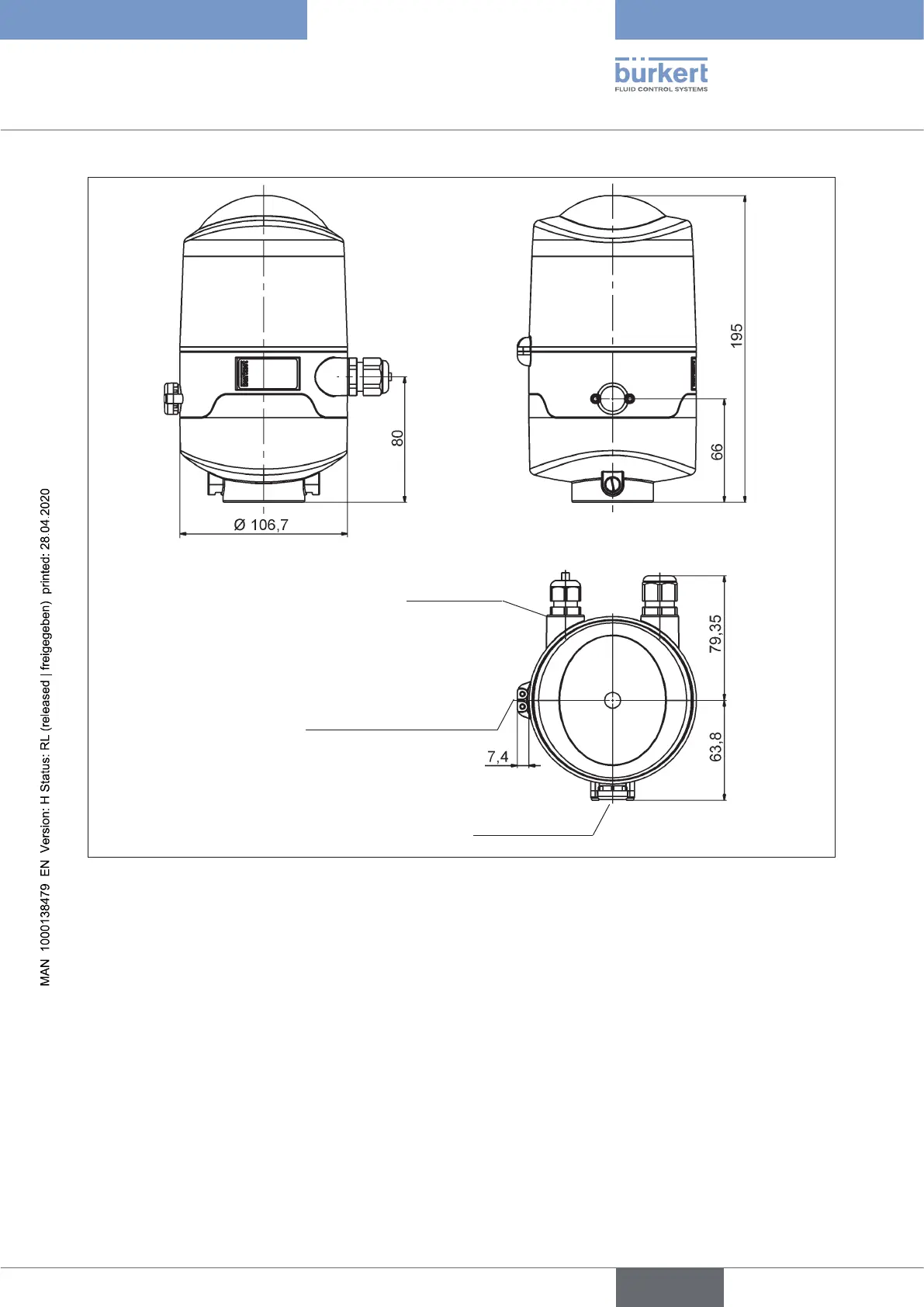

Fig. 5: Dimensional drawing (for models without solenoid valves = feedback top)

Weight: Approx. 0.8 kg

Housing material: exterior: PA, PC, PPO, VA

inside:  ABS,PA,PMMA

Sealing material: exterior: CR, EPDM

inside:  EPDM,FKM,NBR

english

Control Head Type 8681
