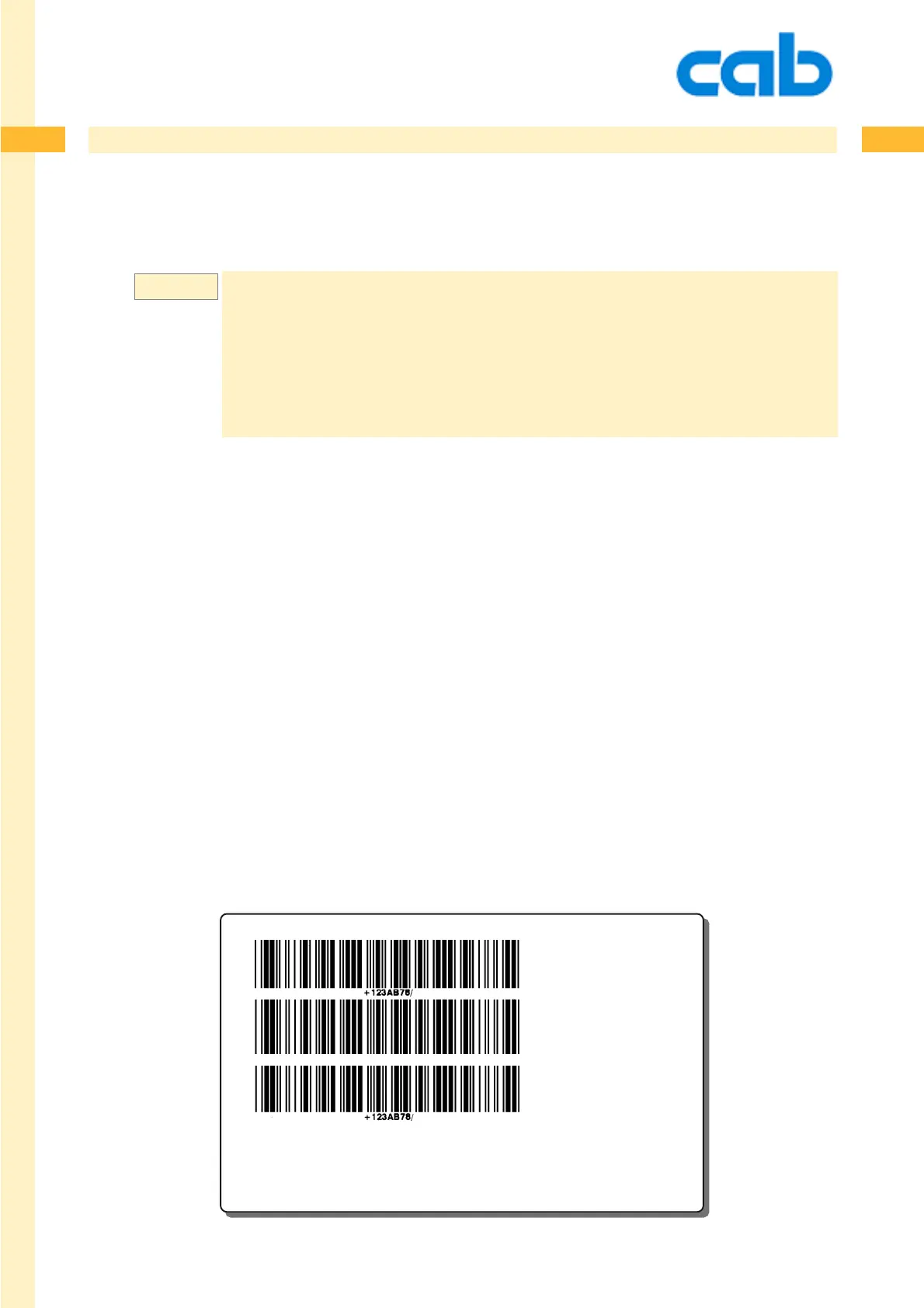

cab Produkttechnik GmbH & Co KG
B - Barcode
HIBC (Health Industry Barcode)
m m
J
S l1;0,0,68,71,100
B 5, 5,0,
HIBC
,12,0.3,3;+123AB78
B 5,18,0,
hibc
,12,0.3,3;+123AB78
B 5,33,0,
HIBC
,12,0.3,3;+123AB78
A 1
