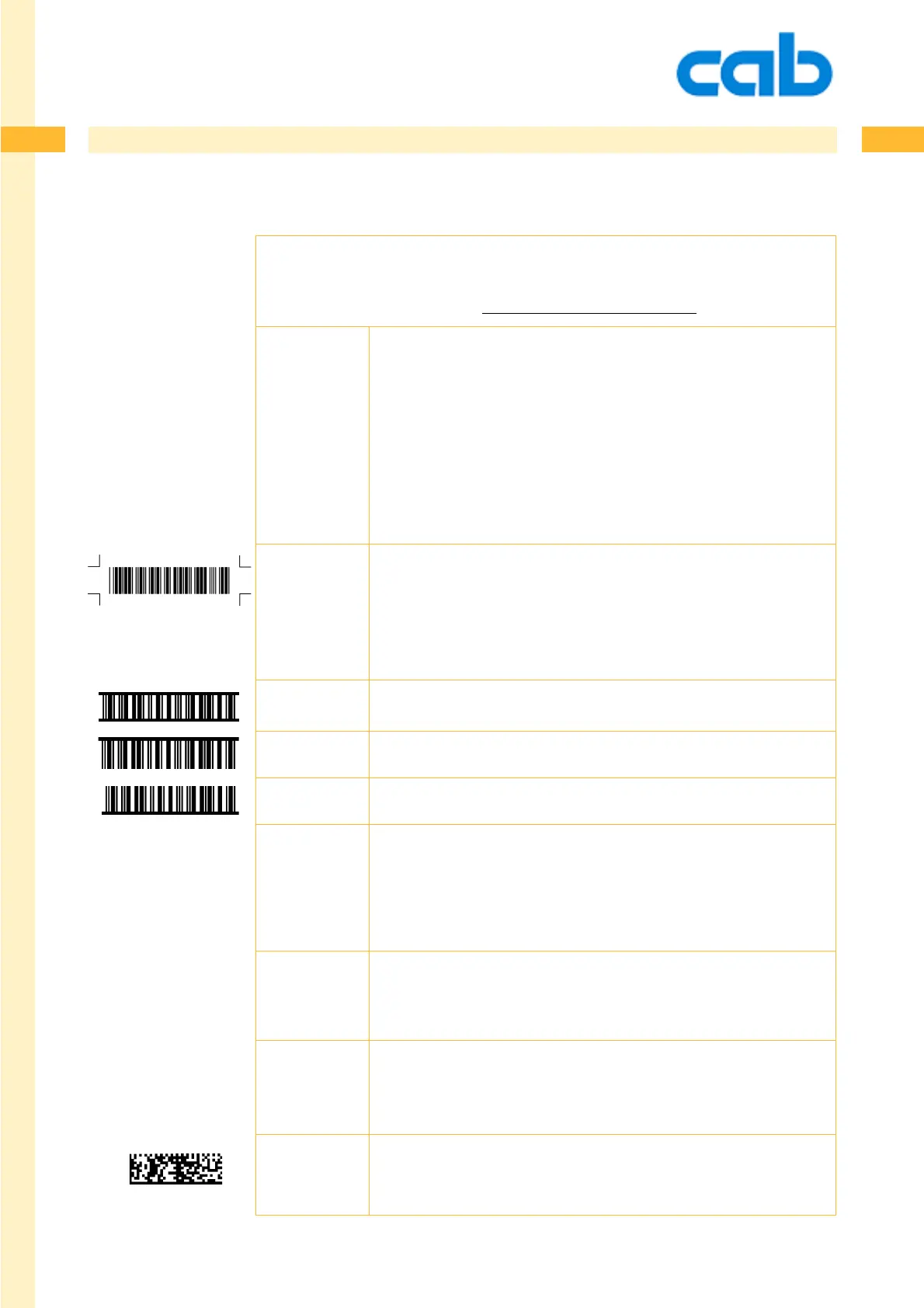

B - Barcode Definition - options overview
[+options] Depending on the barcode type, several options are available. Which
option is valid for which barcode is described for each barcode type
on the next pages. Following options are available:
+MODxx = offers the possibility to add a modulo check digit to a barcode
MOD10 adds a modulo 10 check digit
MOD11 adds a modulo 11 check digit
MOD16 adds a modulo 16 check digit
MOD36 adds a modulo 36 check digit
MOD43 adds a modulo 43 check digit
The available check digits depend on the barcode type
+WSarea = white space area - prints white zone markers for design
purposes. The white space size defines the quiet zone which is
required for a good scanability of the printed code. „area“
defines the size of the markers which are shown with this
command. (can be also "0" )
+BARS = Prints boundary lines above and below the barcode.
+UPBAR = Prints a boundary line above the barcode
+DOWNBAR = Prints a boundary line below the barcode
+XHRI = (Extended Human Readable Interpretation) adds start - and
stop characters (*) for Code 39.
Adds start and stop boxes for Code 93.
Reduces the size of UPC-A and UPC-E (see details in the
examples)
+NOCHECK = suppresses the check digit calculation for variable weight
barcodes (EAN-13 and UPC-A with specific start numbers :21,
24...29)
+ELx = Error Level . sets the redundancy of some 2D barcodes. Valid
values for x depends on the barcode type - please see the
details later in the manual
+RECT = Barcode type DataMatrix can be printed as a rectangle or as a
square. The default value is square. The +RECT option forces
the printer to print this barcode as a rectangle.
continued on the next page
