C-8
If Your Keyboard Has a MIDI Thru Jack

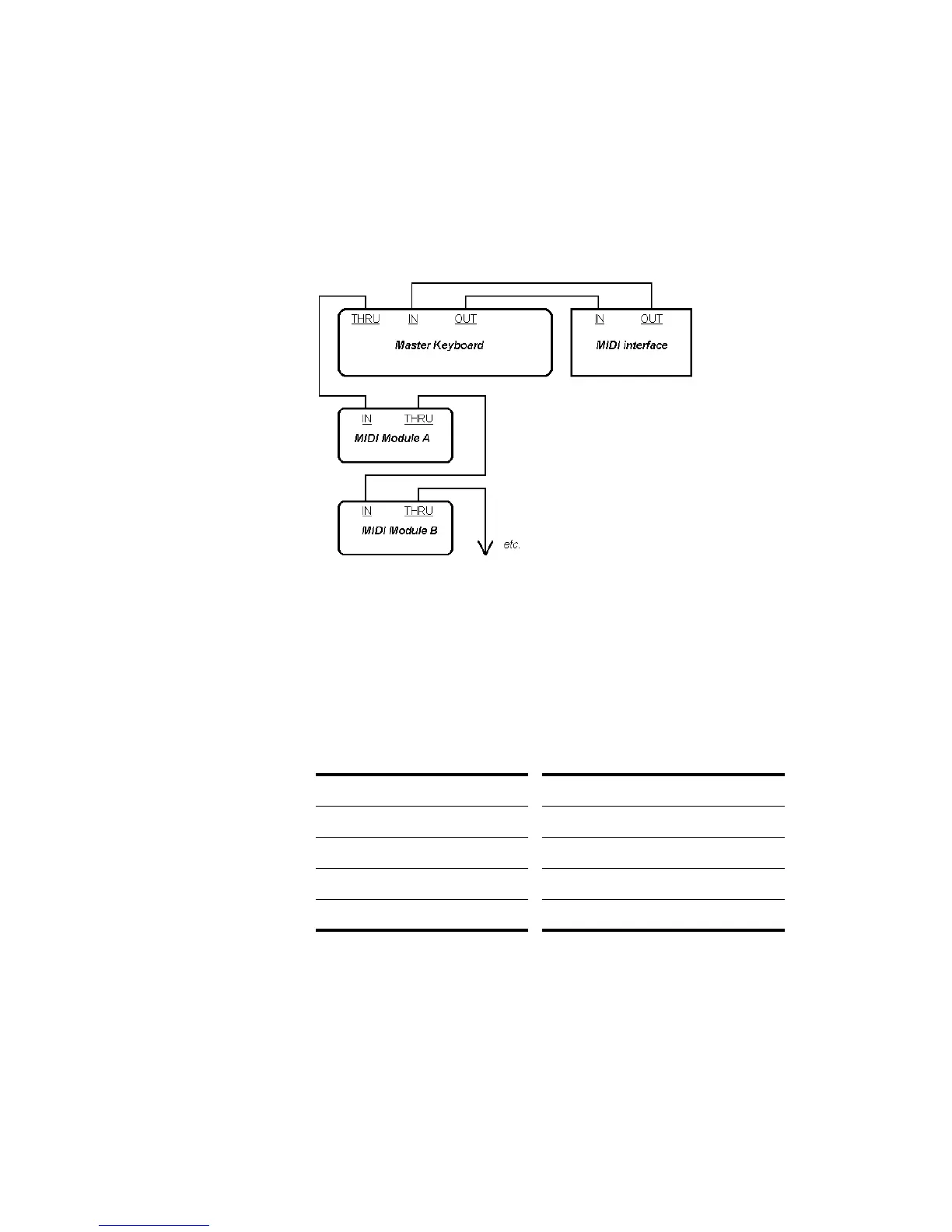

If your keyboard has three MIDI jacksÑIn, Out, and ThruÑthen use the
following diagram.
If you are using a 15-pin joystick adapter cable that splits into two MIDI
cables:
¥ Connect the 15-pin jack to your computerÕs joystick port.
¥ Connect the In cable to your instrumentÕs MIDI Out jack.
¥ Connect the Out cable to your instrumentÕs MIDI In jack.
HereÕs a checklist:
Continue the sequence, repeating the last connection for each of your
sound modules.
Connect this... To this...
Master keyboard Out MIDI interface In
MIDI interface Out Master keyboard In
Master keyboard Thru Another MIDI module’s In
That MIDI module’s Thru Yet another MIDI module’s In
