Canon MF726Cdw - Page 108

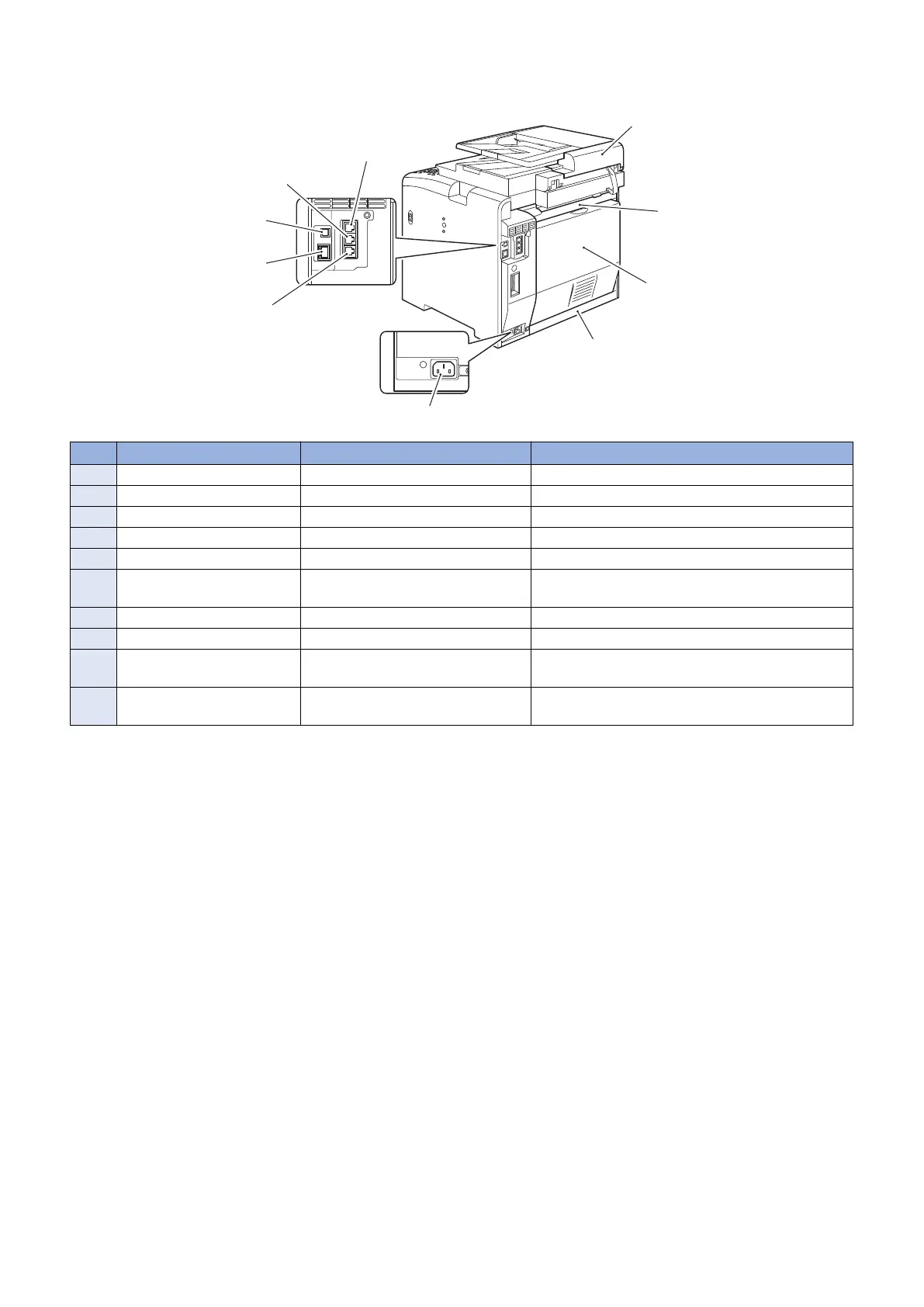

■ Rear Side
[10]
[2]
[4]
[5]
[7]
[8]
[9]
[1]
[3]
[6]
No. Parts Name Remarks Reference
[1] ADF Rear Cover - -
[2] Rear Upper Cover - “Removing the Rear Upper Cover” on page 123
[3] Rear Cover - “Removing the Rear Cover” on page 123
[4] Rear Lower Cover - “Removing the Rear Lower Cover” on page 123
[5] Power Socket - -
[6] Telephone Line Jack MF728Cdw / 727Cdw / 726Cdw /
725Cdn
-
[7] LAN Port - -
[8] USB Port - -
[9] External Device Jack MF728Cdw / 727Cdw / 726Cdw /
725Cdn
-
[10] Handset Terminal MF728Cdw / 727Cdw / 726Cdw /
725Cdn
-
4. Disassembly/Assembly
100
