Canon MF726Cdw - List of Sensor

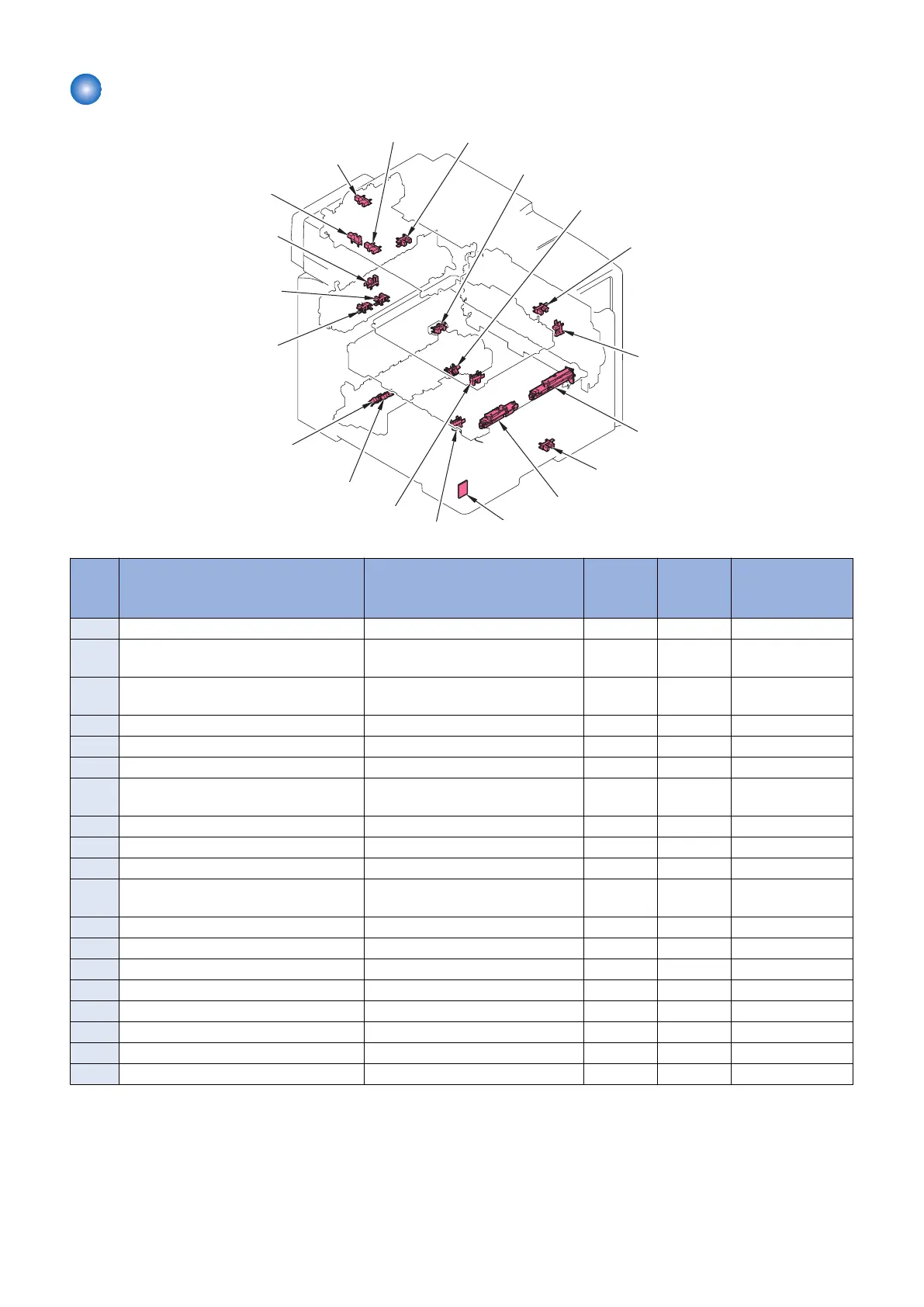

List of Sensor
SR12
SR1
SR9
SR10
SR8
PS701
SR15
SR13
SR16
PCB28
PCB29
PCB30
SR4
SR2
SR6
SR14
SR7
PS703
PS702
No. Parts Name Main Unit Remarks Refer-
ence
Adjastment dur-
ing parts replace-
ment
PCB28 Environment Sensor Product configuration - - -
PCB29 Patch Sensor Patch Density/Registration Sensor
Unit
- - -
PCB30 Patch Registration Sensor Patch Density/Registration Sensor
Unit
- - -
PS701 CIS Unit Homeposition Sensor Reader Unit - - -
PS702 Document End Sensor ADF Paper Feeder Unit - - -
PS703 Document Sensor ADF Paper Feeder Unit - - -
SR1 Paper Feeder Pre-Registration Detection
Sensor
Pickup Unit - - -
SR2 Front Cover Sensor Product configuration - - -
SR4 Registration Detection Sensor Pickup Unit - - -
SR6 Developing Homeposition Sensor Main Drive Unit - - -
SR7 MP Tray Pre-Registration Detection Sen-
sor
Product configuration - - -
SR8 Fixing Delivery Sensor Fixing Assembly - - -
SR9 Fixing Pressure Release Sensor Fixing Assembly - - -
SR10 Fixing Loop Sensor Fixing Assembly - - -
SR12 Pre-registration Detection Sensor Pickup Unit - - -
SR13 Cassette Paper Detection Sensor Pickup Unit - - -
SR14 MP Tray Paper Detection Sensor Product configuration - - -
SR15 Delivery Full Sensor Delivery Unit - - -
SR16 ITB Pressure Release Sensor ITB Unit - - -
4. Disassembly/Assembly
105
