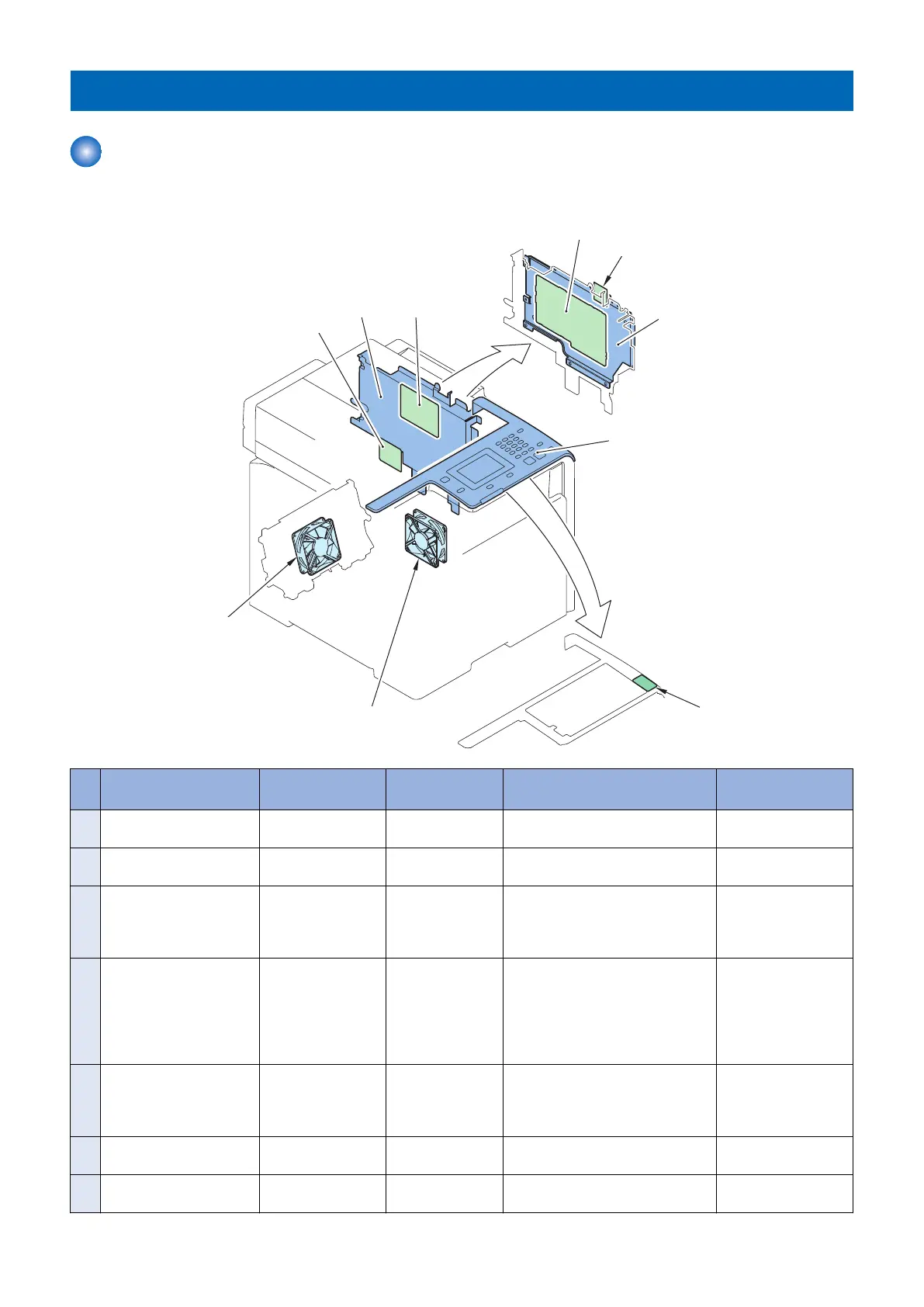

Canon MF726Cdw - Controller System; Location

Controller System
Location
■ 1/2
[10]
[2] [3]
[4]
[5]
[6]
[7]
[8]
[9]
[1]
No. Parts Name Main Unit Remarks Reference Adjastment during
parts replacement
[1] Fixing Sub PCB Product Configura-
tion
UN7 “Removing the Fixing Sub PCB” on
page 166
-
[2] Main Controller Support
Plate
Product Configura-
tion
“Removing the Main Controller Sup-
port Plate” on page 161
-
[3] FAX-NCU PCB Product Configura-
tion
MF728Cdw /
727Cdw /
726Cdw / 725Cdn :
UN16
“Removing the FAX PCB
(MF728Cdw / 727Cdw / 725Cdw)”
on page 171
-
[4] Main Controller PCB Product Configura-
tion
UN13 “Removing the Main Controller
PCB” on page 157
“Before Replacing the
Main Controller PCB”
on page 157
“After Replacing the
Main Controller PCB”
on page 159
[5] Wireless LAN PCB Product Configura-
tion
MF728Cdw /
727Cdw /
726Cdw /
724Cdw : UN23
“Removing the Wireless LAN PCB
(MF728Cdw / 727Cdw / 724Cdw)”
on page 157
-
[6] Controller Cover Product Configura-
tion
“Removing the Controller Cover” on
page 157
-
[7] Control Panel Unit Product Configura-
tion
“Removing the Control Panel Unit”
on page 169
-
4. Disassembly/Assembly
154
