Canon MF726Cdw - List of Connector

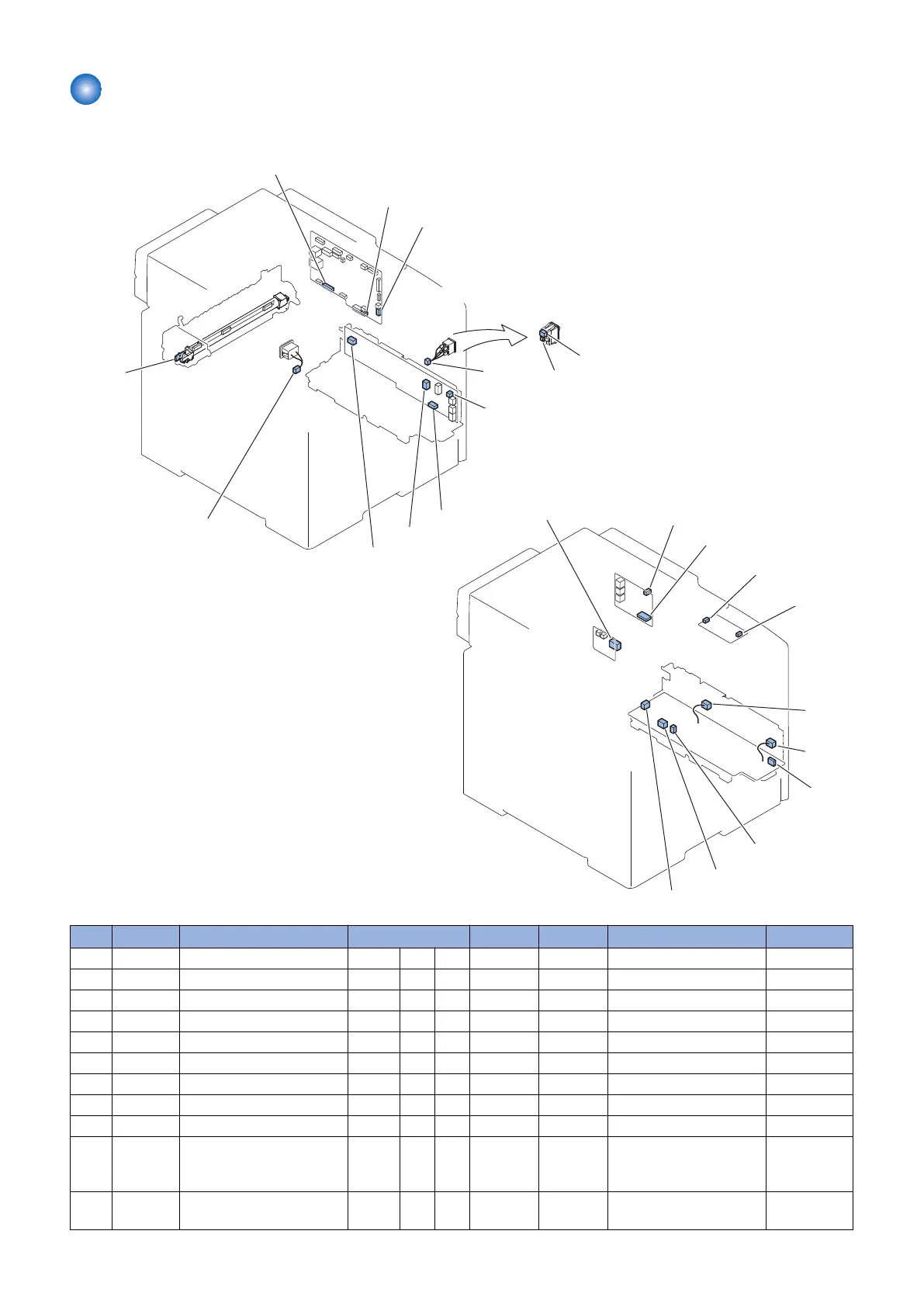

List of Connector
■ 1/5
J929
J387
J386
J301
J9211
J388
J918
MF728Cdw
/724Cdw
MF727Cdw
/726Cdw
/725Cdn
J393
J392
J1301
J393
J651
J311
J312
J2001
J942
J941
J2009
J386
J388
J383
J301
J1391
J No. Symbol Name Relay connector J No. Symbol Name Remarks
J651 UN7 Fixing Sub PCB J4003 J1301 H120 Fixing heater 120V
J311 UN8 Low Voltage Main PCB J4003 J1301 H120 Fixing heater 120V
J651 UN7 Fixing Sub PCB J4003 J1301 H220 Fixing heater 230V
J311 UN8 Low Voltage Main PCB J4003 J1301 H220 Fixing heater 230V
J651 UN7 Fixing Sub PCB J312 UN8 Low Voltage Main PCB
J301 UN8 Low Voltage Main PCB J301 - INLET
J386 UN8 Low Voltage Main PCB J386 UN9 Low Voltage Sub PCB
J383 UN8 Low Voltage Main PCB J387 UN9 Low Voltage Sub PCB
J388 UN8 Low Voltage Main PCB J388 UN9 Low Voltage Sub PCB
J139
1
UN9 Low Voltage Sub PCB J393 SW1 Main Power Switch MF727Cdw /
726Cdw /
725Cdn
J139
1
UN9 Low Voltage Sub PCB J393 SW1 Main Power Switch MF728Cdw /
724Cdw
4. Disassembly/Assembly
108
