Canon MF726Cdw - List of Main Unit

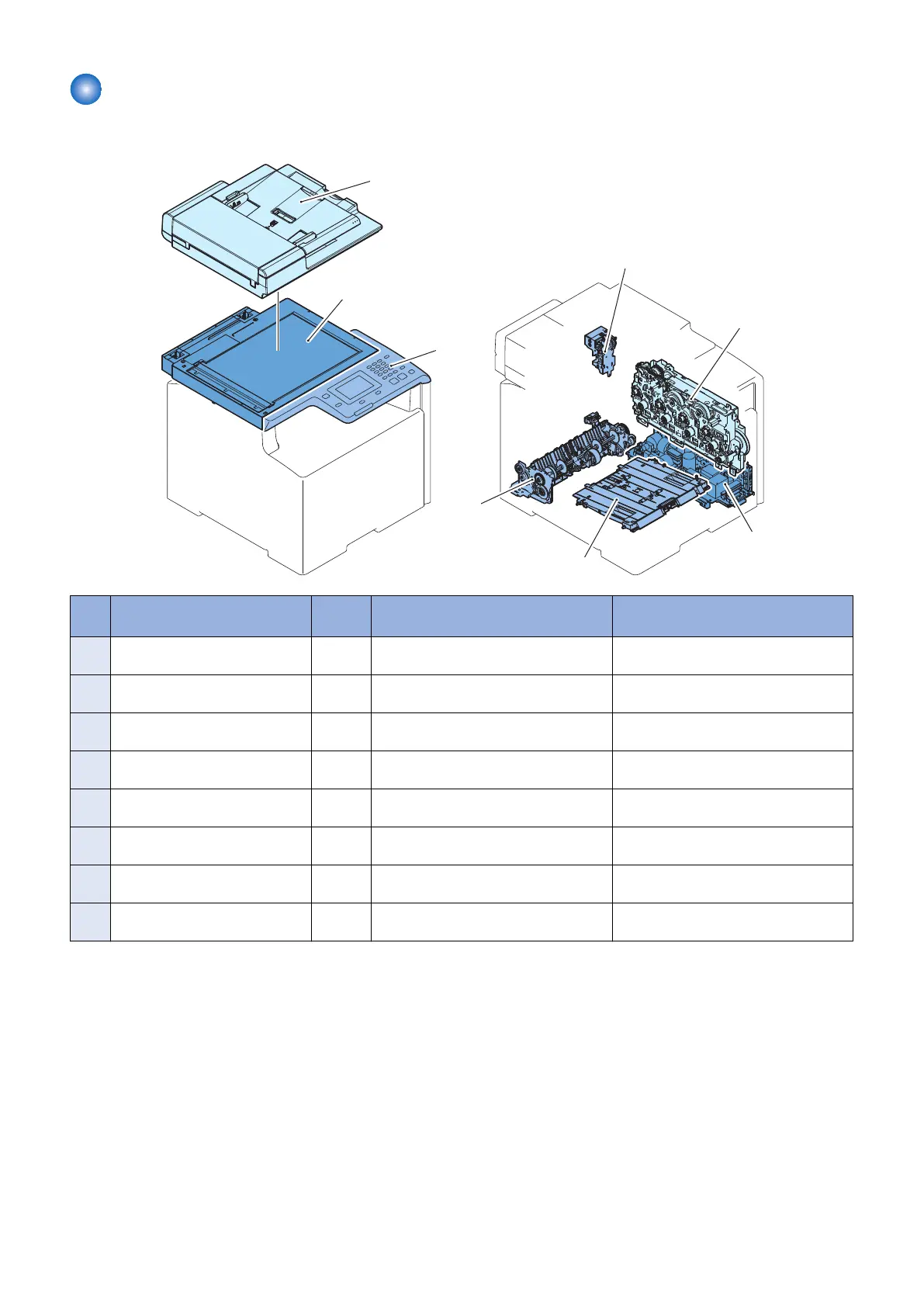

List of Main Unit
■ 1/2
[1]
[3]
[4]
[5]
[7]
[6]
[8]
[2]
No. Parts Name Re-
marks
Reference Adjastment during parts replace-
ment
[1] ADF Unit - “Separating the ADF Unit + Reader Unit”
on page 131
“After Replacing the ADF Units” on page
132
[2] Reader Unit - “Separating the ADF Unit + Reader Unit”
on page 131
“After Replacing the Reader Unit” on
page 133
[3] Control Panel Unit - “Removing the Control Panel Unit” on
page 169
-
[4] Duplexing Reverse Drive Unit - “Removing the Duplex Reverse Drive
Unit” on page 179
-
[5] Main Drive Unit - “Removing the Main Drive Unit” on page
172
-
[6] Low Voltage Power Supply Unit - “Removing the Low Voltage Unit” on
page 165
-
[7] MP Paper Pickup Unit - “Removing the MP Tray Pickup Unit” on
page 218
-
[8] Paper Pickup Unit - “Removing the Pickup Unit” on page
213
-
4. Disassembly/Assembly
101
