Canon MF726Cdw - Adjustment at Parts Replacement

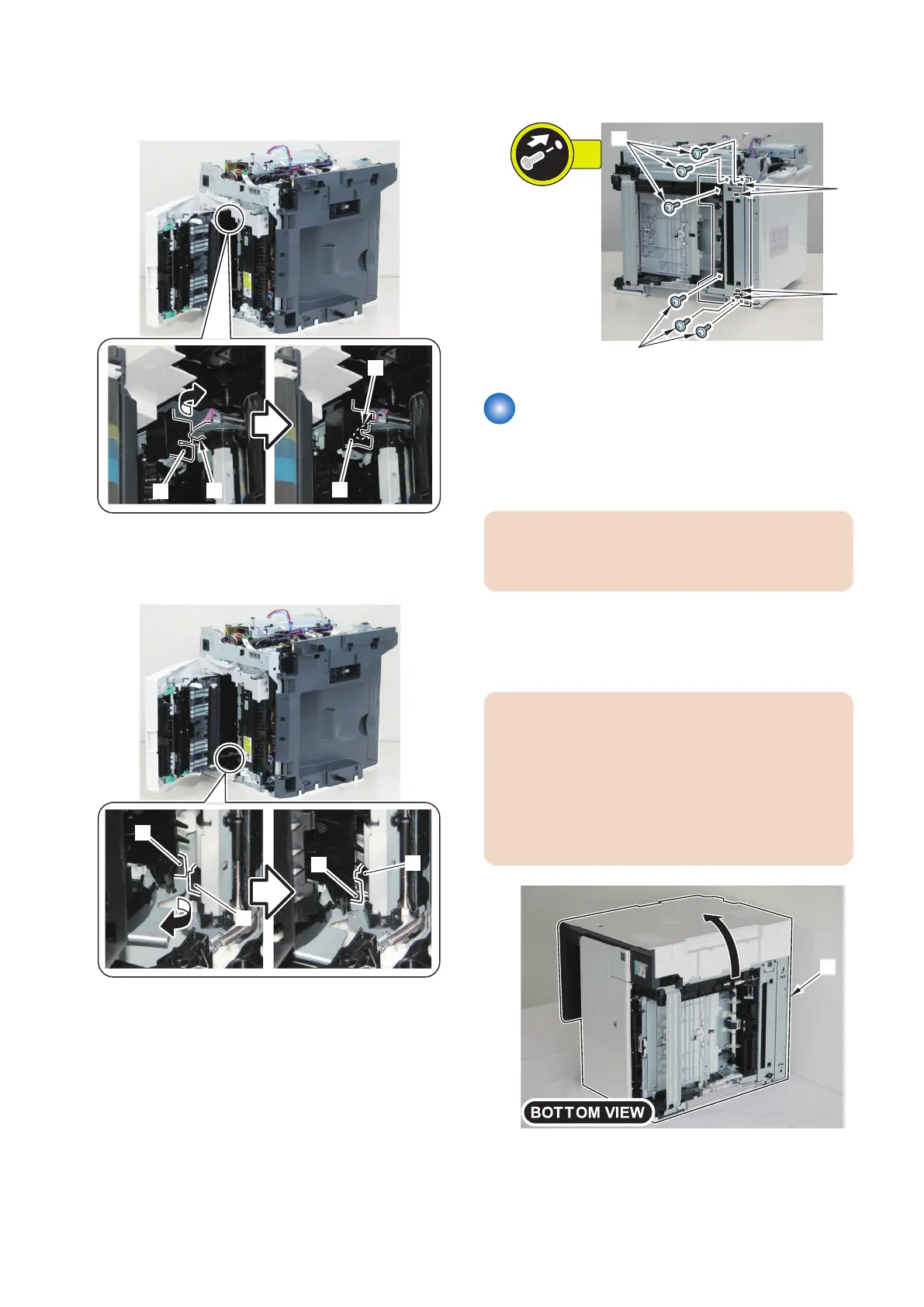

3. Place the Sensor Flag Cover [B] of the Pickup Unit
over the plate [C] of the Roller Unit of the host
machine.
[B]
[C]
[B]
[C]
4. Place the edge [D] of the Feed Guide of the Pickup
Unit over the edge [E] of the Roller Unit of the host
machine.
[D]
[E]
[D]
[E]
5. Align the 4 protrusions [1], and secure the Pickup
Unit with the 6 screws [2].
[1]
[2]
[2]
[1]
6x
Removing the MP Tray Pickup
Unit
■ Procedure
CAUTION:
When tilting the host machine, make sure to remove
the Toner Cartridge (Y, M, C, Bk) beforehand.
1. Remove the cassette.
2. Make the Left Cover face down and place the host
machine [1].
CAUTION:
When laying down the main body, be sure to secure
the ADF Unit with tape to prevent from opening.
In case that the ADF Unit is not secured with tape,
when returning the main body to its original position,
the ADF Unit is closed swiftly, so this might cause
damage on the main body or injuries by catching the
fingers.
[1]
4. Disassembly/Assembly
218
