Pickup / Feed System
Overview
The Pickup / Feed System is responsible for paper pickup and delivery, made up with multiple rollers.

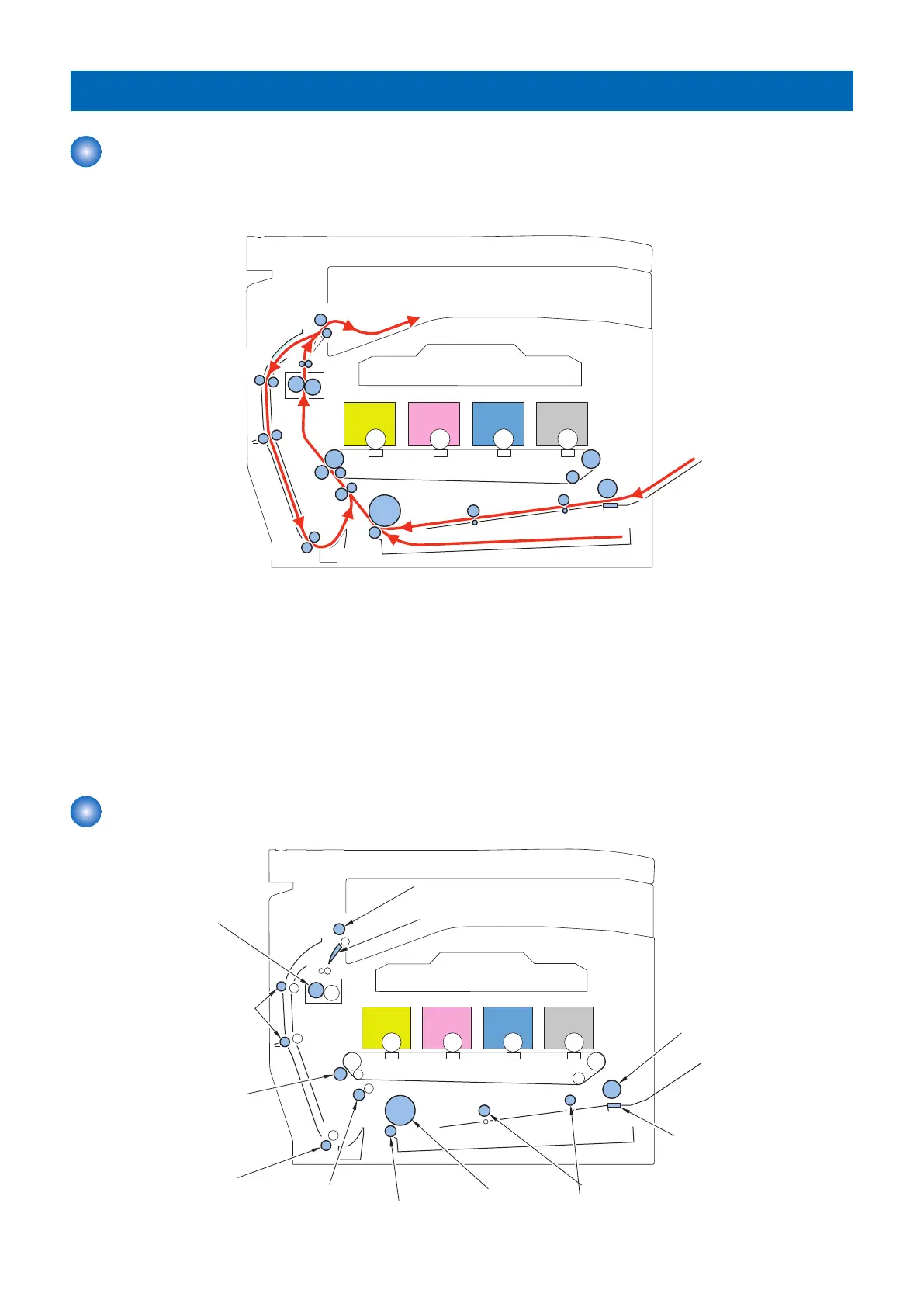

The figure below shows the structure of the Pickup/Feed System schematically.
Face-down Delivery
Cassette Pickup
MP Tray
Pickup
Duplexing
Feeding
Pickup slot
Cassette
MP tray
Delivery slot
Face-down tray
Automatic 2-sided
Available
Parts Configuration
Duplexing Flapper
MP Tray Feed Roler
Cassette
Pickup Roller
Cassette
Separation Roller
Registration
Roller
Secondary
Transfer
External Roller
Pressure
Roller
Delivery Roller
MP Tray
Separation
Pad
MP Tray
Pickup
Roller
Duplex
Feed
Roller
Duplex
Feed Roller
2. Technical Explanation
