Canon MF726Cdw - Drive Configuration; Controls

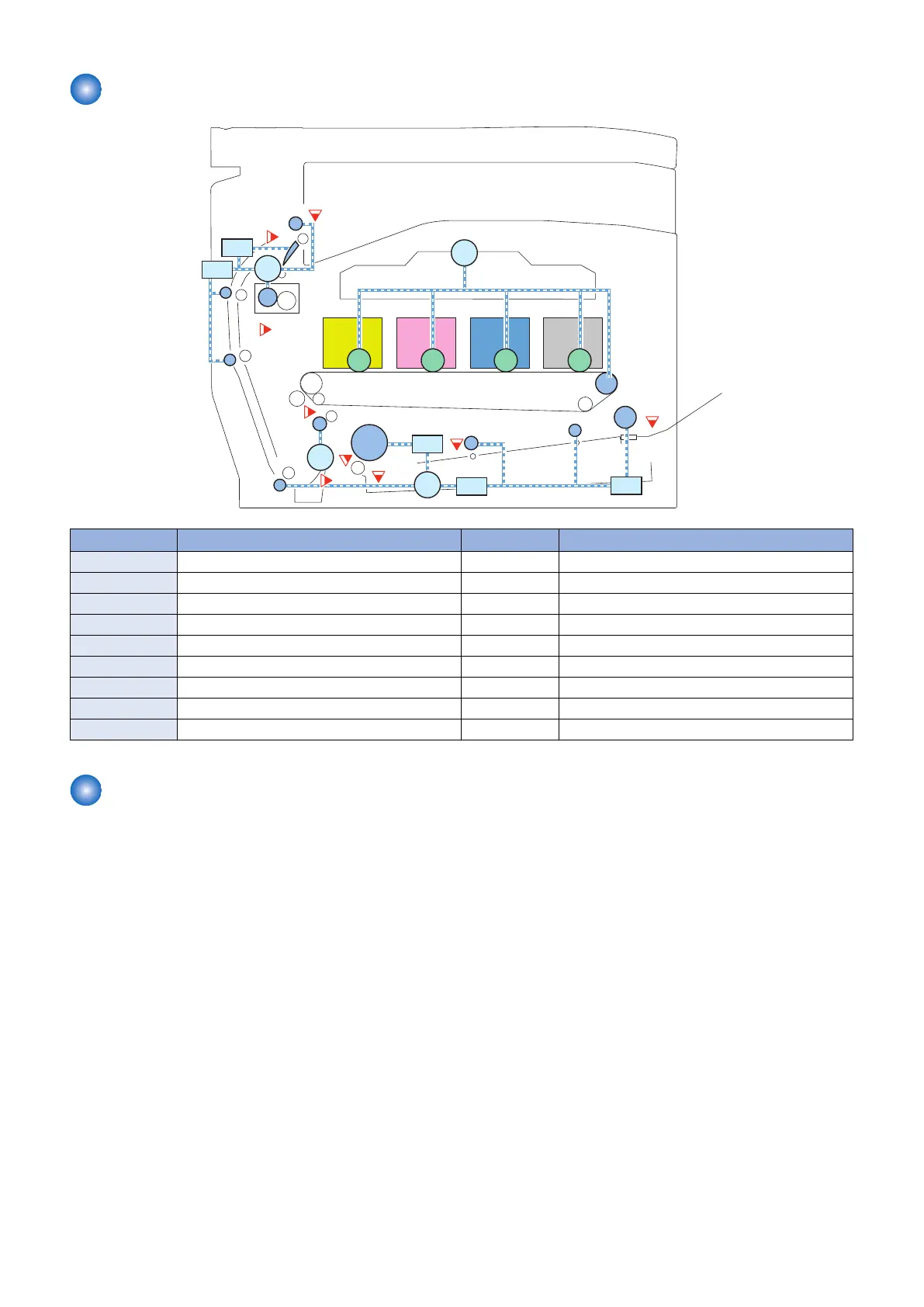

Drive Configuration
SL1
CL1
CL2
SL2
SL5
SR14
SR7
SR13
SR12
SR15
SR10
SR1
SR8
SR4
M3
M5
M1
M4
Symbol Name Symbol Name
M1: Drum Motor SR1: Paper feeder pre-registration sensor
M3: Registration Motor SR4: Registration sensor
M4: Fixing Motor SR7: MP tray pre-registration sensor
M5: Pickup Motor SR8: Fixing delivery sensor
SL1: MP Tray Pickup Solenoid SR10: Fixing arch sensor
SL2: Cassette Pickup solenoid SR12: Pre-registration sensor
SL5: Duplex reversal solenoid SR13: Cassette paper sensor
CL1: MP Tray Feeding Clutch SR14: MP tray paper sensor
CL2: Duplex feeding clutch SR15: Delivery full sensor
Controls
■ Cassette paper feed
● Roller separation method
This product employs the separation roller method to avoid multi-feeding.
This method prevents multiple sheets from being fed by the driven separation roller. The separation roller is driven by the pickup
roller.
When normally operated
The separation roller is driven by the pickup roller to feed paper. By this, the separation roller rotates in the paper feed direction.
When multiple sheets are fed
Multiple sheets weaken friction between rollers, decaying the driving force conveyed from the pickup roller to the separation roller.
This product has the mechanism to regulate the separation roller rotation, which stops the roller rotation at multi-feeding under
weaker driving force conveyed from the pickup roller. This enables to avoid multi-feeding.
2. Technical Explanation
