Removing the Rear Cover Rib
Unit
■ Preparation
1. Remove the Right Cover.(Refer to “Removing the
Right Cover” on page 120)
2. Remove the Left Cover.(Refer to “Removing the Left
Cover” on page 118)
3. Remove the Rear Upper Cover.(Refer to “Removing
the Rear Upper Cover” on page 123)
4. Remove the Rear Cover.(Refer to “Removing the
Rear Cover” on page 123)
5. Remove the Rear Lower Cover.(Refer to “Removing
the Rear Lower Cover” on page 123)
■ Procedure

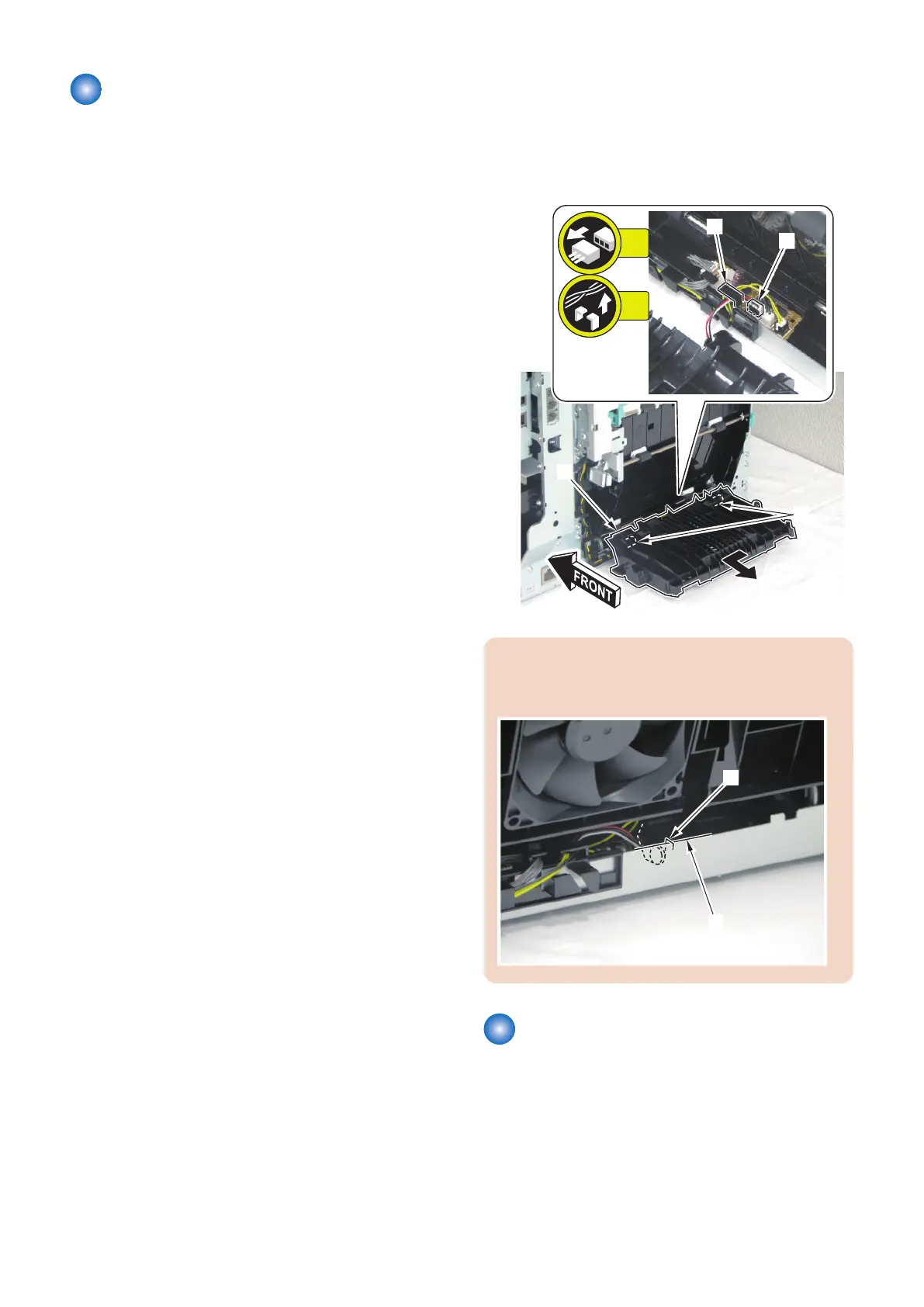

1. Remove the Rear Cover Rib Unit [1].
• 2 bearing holders [2]
• 1 fixing guide [3]
• 1 connector [4]
[1]
[3]
[4]
[2]
1x
1x
CAUTION:
At installation, make sure that the spring [1] is installed
on [A] part before installing the Rear Cover Rib Unit.
[1]
[A]
Removing the Upper Cover
■ Preparation
1. Remove the Right Cover.(Refer to “Removing the
Right Cover” on page 120)
2. Remove the Left Cover.(Refer to “Removing the Left
Cover” on page 118)
3. Remove the Right Front Cover.(Refer to “Removing
the Right Front Cover” on page 121)
4. Disassembly/Assembly
