Canon MF726Cdw - Removing the Re-Pickup Guide Unit

■ Procedure

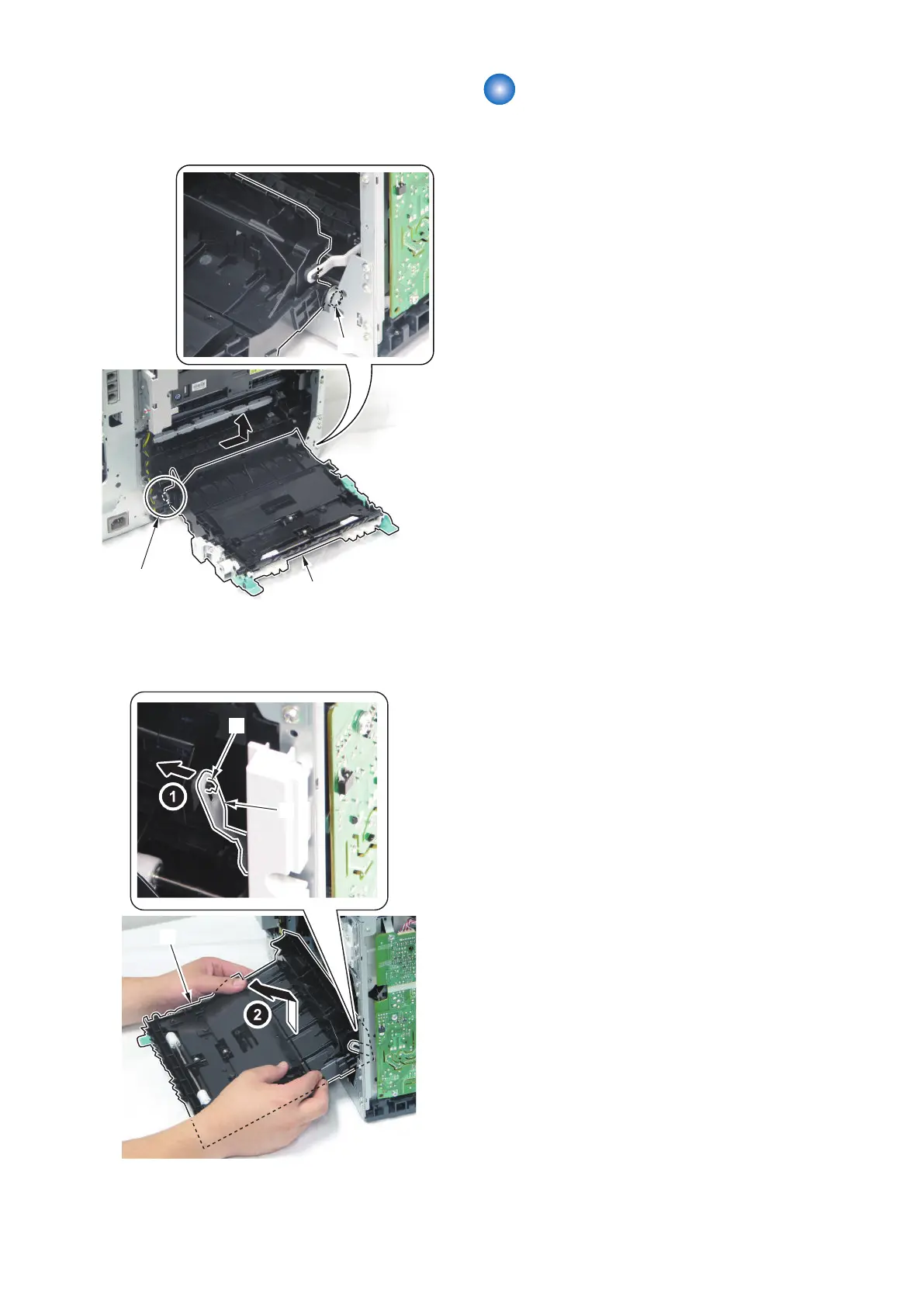

1. Shift the Duplex Feed Unit [1] in the direction of the
arrow and remove the 2 bearings [2].
[2]
[2]
[1]
2. Align the claw [1] with the hole of the link [2] and
remove the Duplex Feed Unit [3] in the direction of
the arrow.
[3]
[2]
[1]
Removing the Re-pickup
Guide Unit
■ Preparation
1. Removing the Right Cover.(Refer to “Removing the
Right Cover” on page 120)
2. Removing the Left Cover.(Refer to “Removing the
Left Cover” on page 118)
3. Removing the Secondary Transfer Feed Unit.(Refer
to “Removing the Secondary Transfer Feed Unit” on
page 219)
4. Removing the Rear Upper Cover.(Refer to
“Removing the Rear Upper Cover” on page 123)
5. Removing the Rear Cover.(Refer to “Removing the
Rear Cover” on page 123)
6. Removing the Rear Lower Cover.(Refer to
“Removing the Rear Lower Cover” on page 123)
7. Removing the Rear Cover Rib Unit.(Refer to
“Removing the Rear Cover Rib Unit” on page 125)
8. Removing the Duplex Feed Unit.(Refer to
“Removing the Duplex Feed Unit” on page 221)
4. Disassembly/Assembly
222
