Canon MF726Cdw - Image Formation System; Location

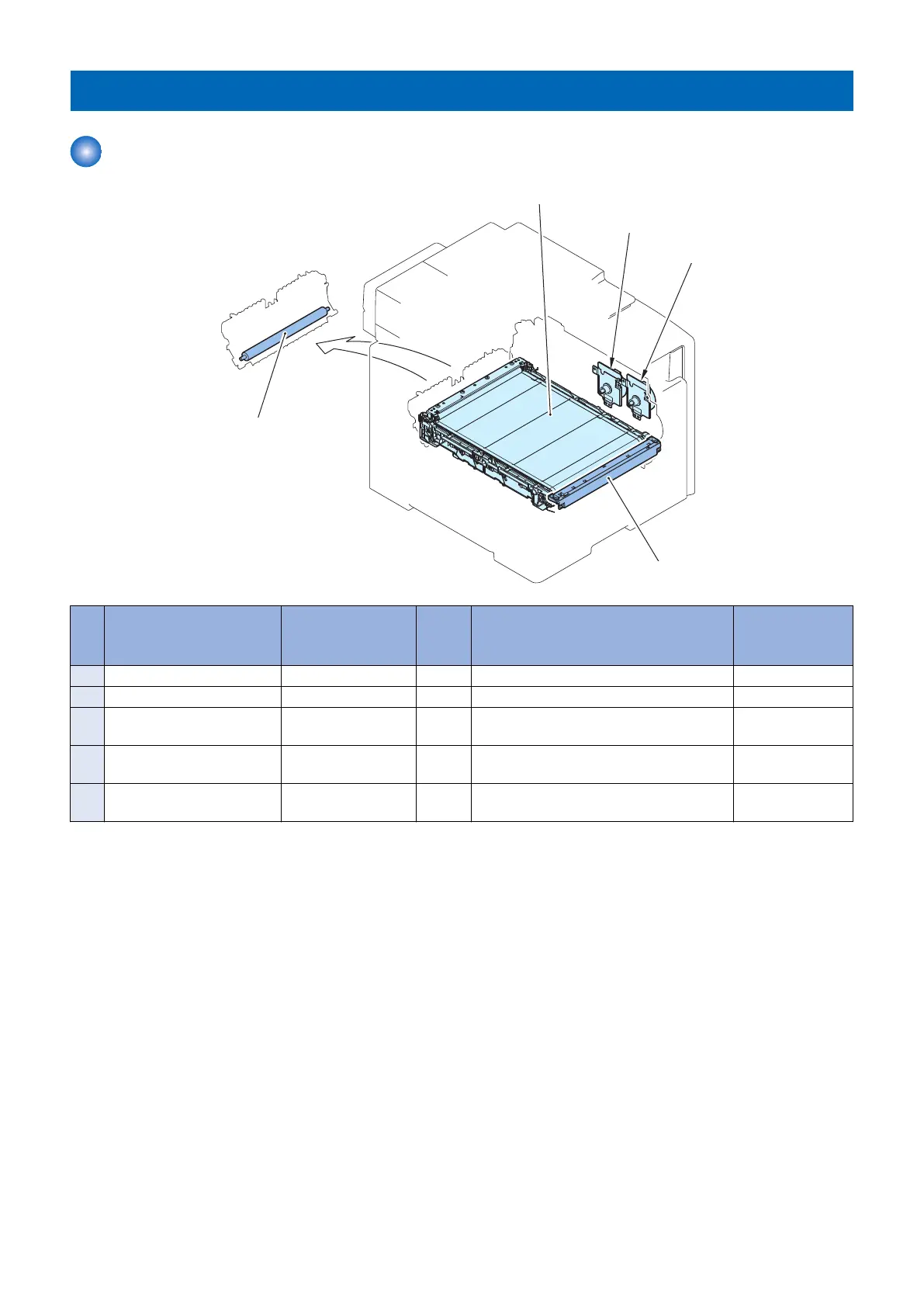

Image Formation System
Location
[1]
[2]
[3]
[4]
[5]
No. Parts Name Main Unit Re-
marks
Reference Adjastment dur-
ing parts re-
placement
[1] ITB Unit Product Configuration - “Removing the ITB Unit” on page 191 -
[2] Drum Motor Main Drive Unit M1 “Removing the Drum Motor” on page 196 -
[3] Developing Motor Main Drive Unit M2 “Removing the Developing Motor” on page
195
-
[4] Patch Density/Registration
Sensor Unit
Product Configuration - “Removing the Patch Density and Registra-
tion Sensor unit” on page 193
-
[5] Secondary Transfer Outer
Roller
Secondary Transfer
Feed Unit
- “Removing the Secondary Transfer Outer
Roller” on page 198
-
