Canon MF726Cdw - Removing the Developing Motor

● Removing the Front Cover Link Arm
(Left)
1. Remove the Front Cover. (Refer to “Removing the
Front Cover” on page 122)
2. Lift the Patch Density/Registration Sensor Unit [1] to
remove the Front Cover Link Arm (Left) [2].
• 3 Screws [3]
[3]
[1]
[1]
[2]
1x
Removing the Developing
Motor
■ Preparation
1. Removing the Right Cover.(Refer to “Removing the
Right Cover” on page 120 )
2. Removing the Left Cover.(Refer to “Removing the
Left Cover” on page 118 )
3. Removing the Right Front Cover.(Refer to
“Removing the Right Front Cover” on page 121 )
4. Removing the ADF Unit + Reader Unit.(Refer to
“Removing the ADF Unit + Reader Unit” on page
130)
5. Removing the Rear Upper Cover.(Refer to
“Removing the Rear Upper Cover” on page 123)
6. Removing the Upper Cover.(Refer to “Removing the
Upper Cover” on page 125)
7. Removing the Upper Cover.(MF728Cdw / 727Cdw /
724Cdw only)(Refer to “Removing the Wireless LAN
PCB (MF728Cdw / 727Cdw / 724Cdw)” on page 157)
8. Removing the Main Controller PCB.(Refer to
“Removing the Main Controller PCB” on page 157 )
9. Removing the Main Controller Support Plate.(Refer
to “Removing the Main Controller Support Plate” on
page 161)
■ Procedure

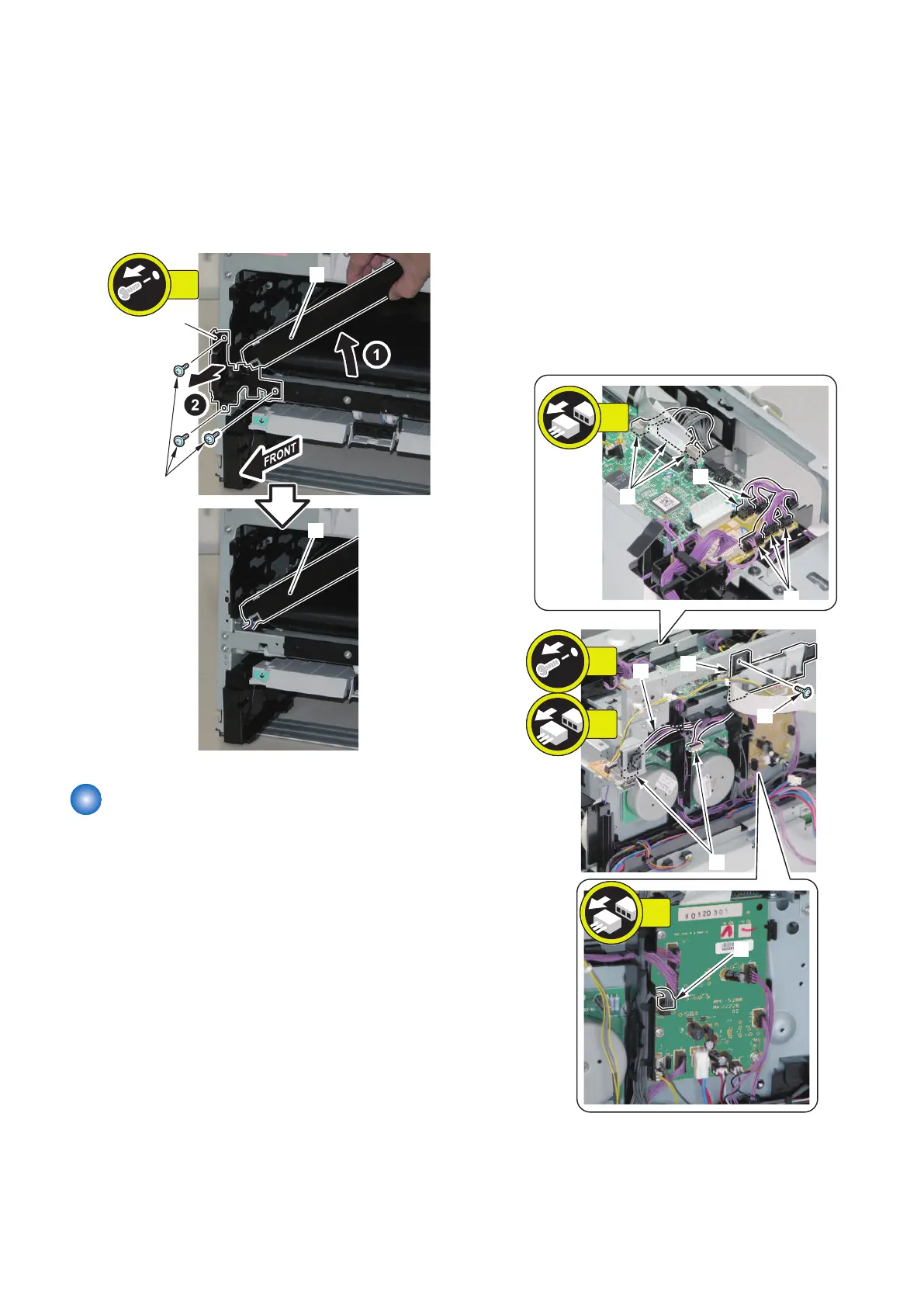

1. Remove the fixing guide [1] and the wire harness [2].
• 1 screw [3]
• 11 connectors [4]
[1]
[2]
[4]
[4]
[4]
[4]
[4]
[3]
8x
1x
2x
1x
4. Disassembly/Assembly
195
