Canon MF726Cdw - Document Exposure, Feed System; Location

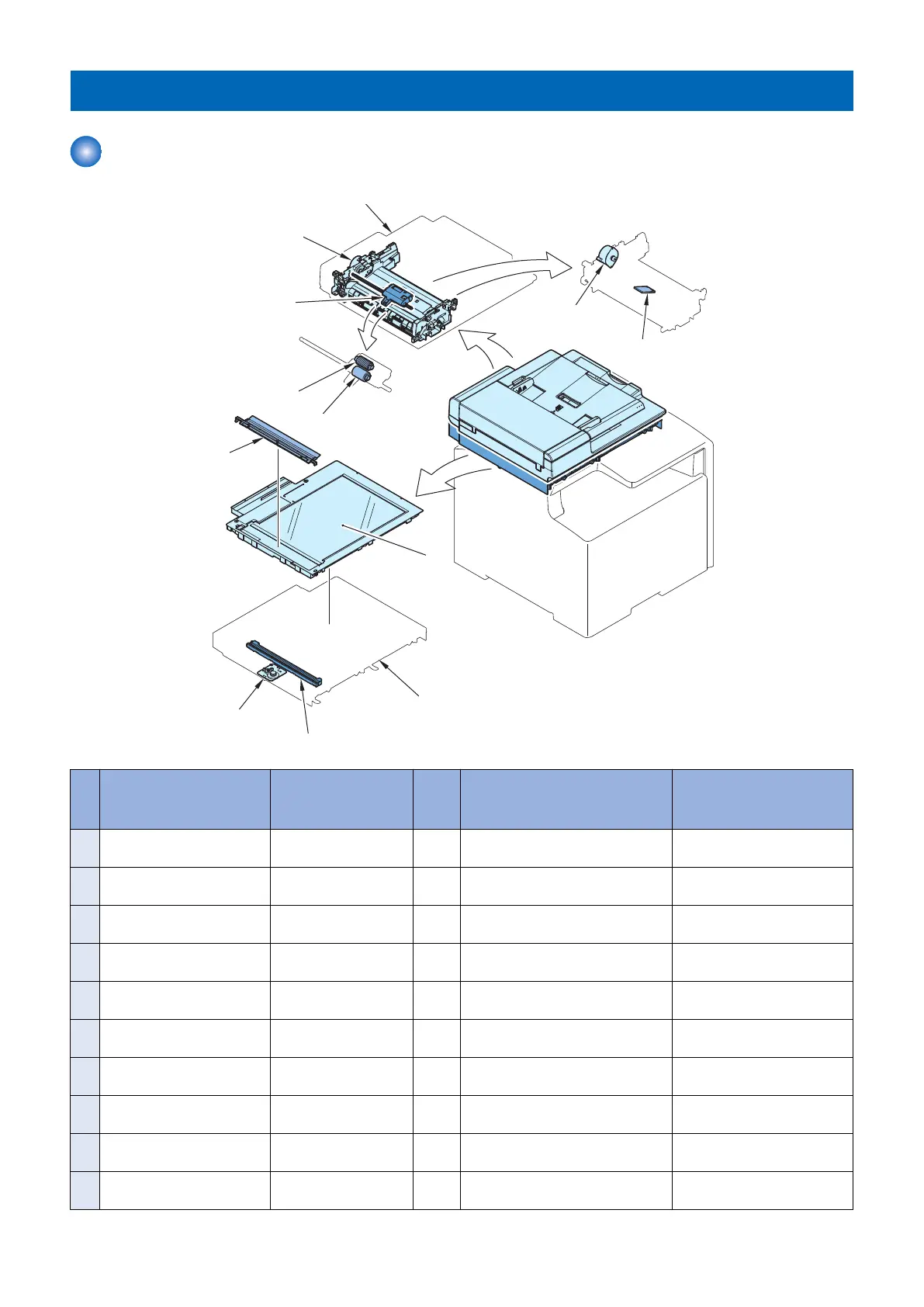

Document Exposure, Feed System
Location
[10]
[7]
[1]
[6]
[3]
[4]
[5]
[8]
[9]
[2]
[12]
[11]
No. Parts Name Main Unit Re-
mark
s
Reference Adjastment during parts
replacement
[1] ADF Unit Product Configuration - “Removing the ADF Unit + Reader
Unit” on page 130
“After Replacing the ADF
Units” on page 132
[2] ADF Paper Feeder Unit ADF Unit - “Removing the ADF Pickup Feed
Unit” on page 140
-
[3] ADF Roller Unit ADF Unit - “Removing the ADF Roller Unit” on
page 136
-
[4] ADF Pickup Roller ADF Roller Unit - “Removing the ADF Pickup Roller”
on page 137
-
[5] ADF Separation Roller ADF Roller Unit - “Removing the ADF Separation
Roller” on page 138
-
[6] ADF Motor ADF Paper Feeder Unit M721 “Removing the ADF Pickup Motor”
on page 141
-
[7] ADF Separation Pad ADF Paper Feeder Unit - “Removing the ADF Separation
Pad” on page 138
-
[8] Reader Unit Product Configuration - “Removing the ADF Unit + Reader
Unit” on page 130
“After Replacing the Reader
Unit” on page 133
[9] CIS Unit Reader Unit UN12 “Removing the CIS Unit” on page
146
“After replacing CIS units” on
page 149
[10] Reader Motor Reader Unit M720 “Removing the Reader Scanner
Motor” on page 151
-
4. Disassembly/Assembly
128
