Canon MF726Cdw - Page 115

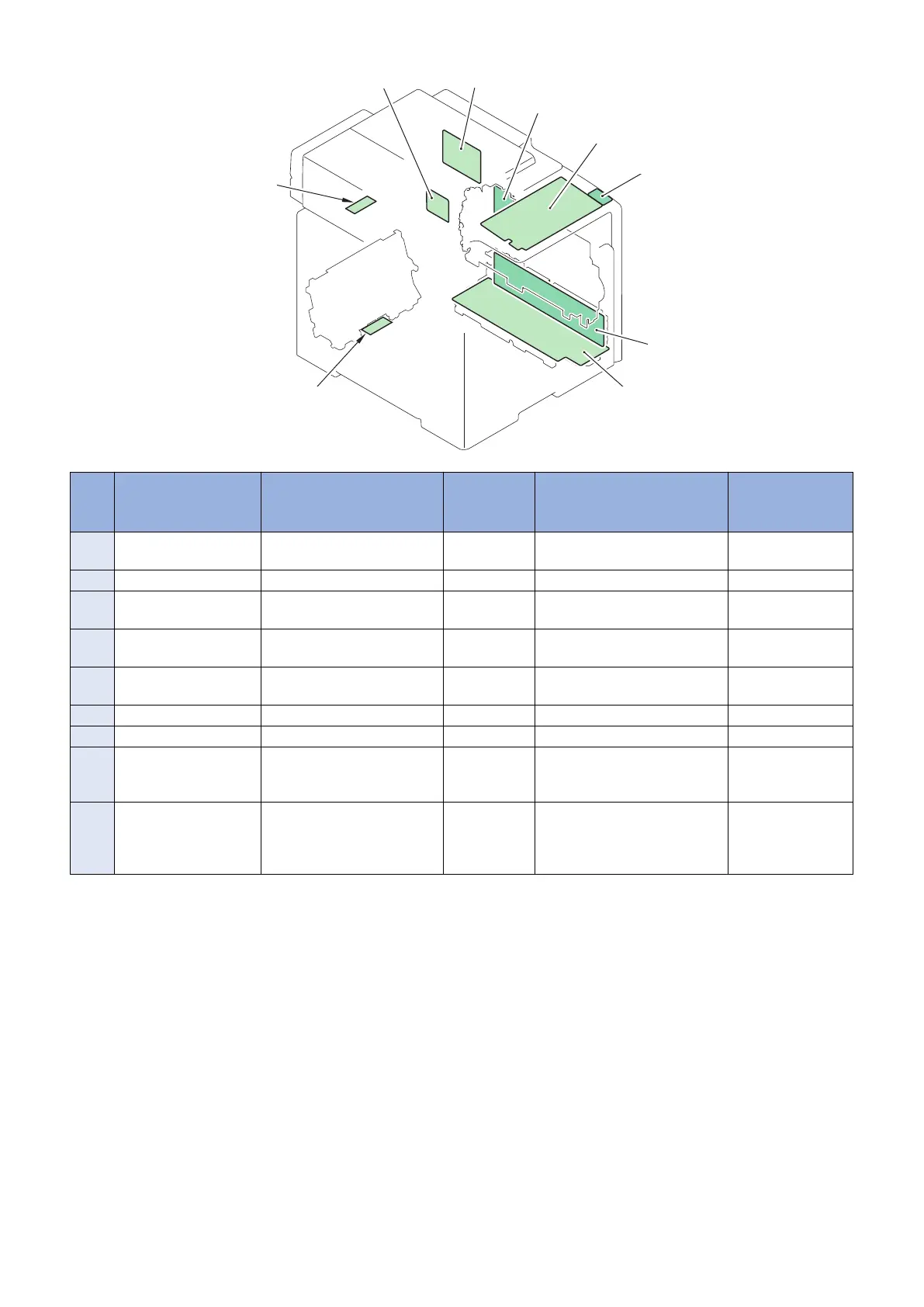

UN7
UN6
UN16
UN8
UN9
UN10
UN2
UN14
UN20
No. Parts Name Main Unit Remarks Reference Adjastment dur-
ing parts replace-
ment
UN2 Driver PCB Product configuration - “Removing the Driver PCB” on
page 167
-
UN6 Fixing Relay PCB Product configuration - - -
UN7 Fixing Sub PCB Product configuration - “Removing the Fixing Sub PCB”
on page 166
-
UN8 Low Voltage Main PCB Low Voltage Power Supply
Unit
- - -
UN9 Low Voltage Sub PCB Low Voltage Power Supply
Unit
- - -
UN10 Duplex Driver PCB Re-Pickup Guide Unit - - -
UN14 Control Panel NFC PCB Control Panel Unit - - -
UN20 NFC PCB Control Panel Unit MF727Cdw /
726Cdw
“Removing the NFC PCB
(MF727Cdw / 726Cdw)” on page
171
-
UN16 FAX-NCU PCB Product configuration MF728Cdw /
727Cdw /
726Cdw /
725Cdn
“Removing the FAX PCB
(MF728Cdw / 727Cdw /
725Cdw)” on page 171
-
4. Disassembly/Assembly
107
