Canon MF726Cdw - Page 147

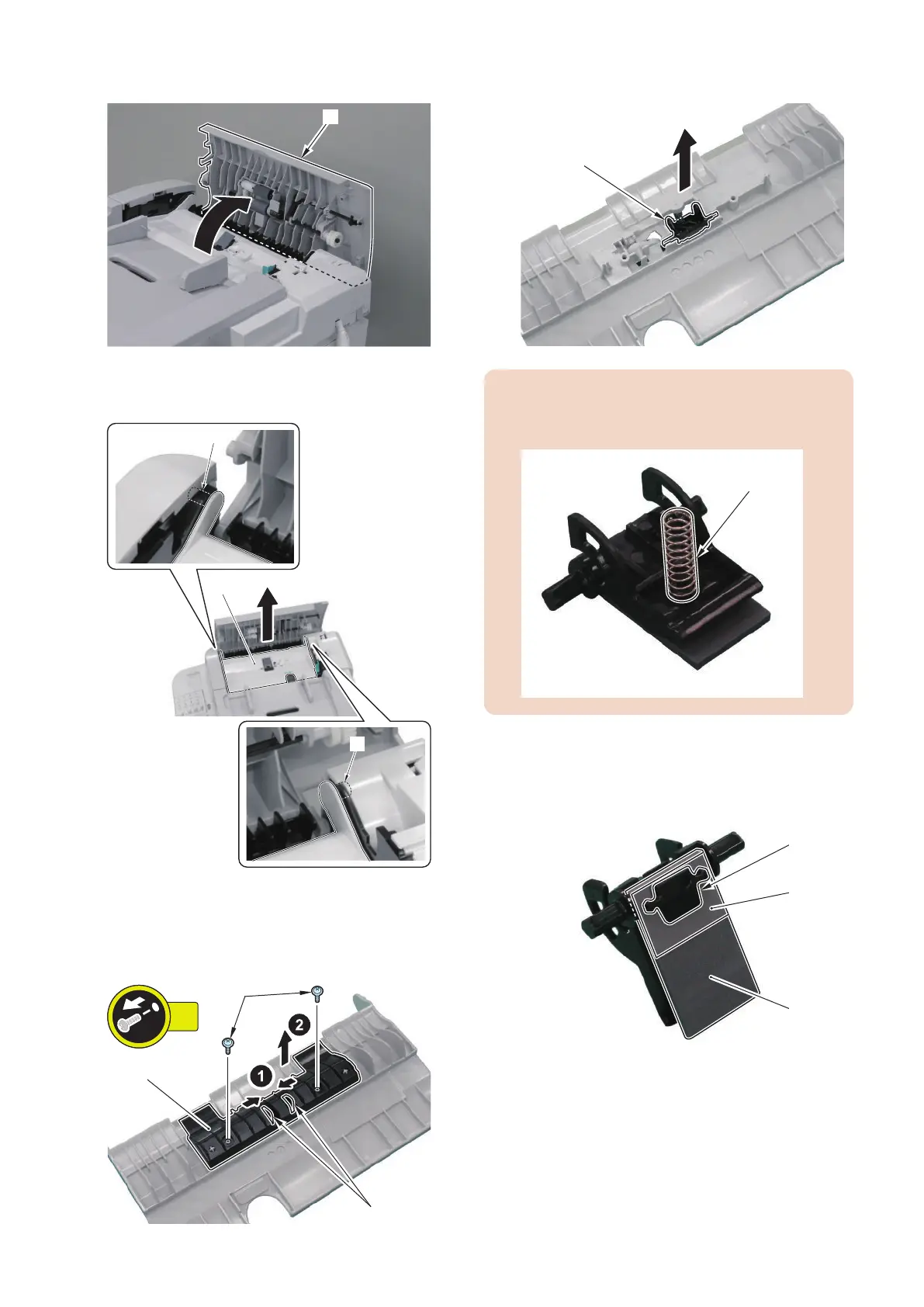

1. Open the ADF Upper Cover [1].
[1]
2. Remove the Feed Guide [1].
• 2 Bosses [2]
[1]
[2]
[2]
3. Remove the Retaining Plate [1] On the Back of the
Feed Guide.
• 2 Screws [2]
• 2 Tabs [3] of the Separation Pad Holder
[1]
[2]
[3]
2x
4. Remove the Separation Pad Holder [1].
[1]
CAUTION:
Be careful not to lose the Spring [1] on the Separation
Pad Holder.
[1]
5. Remove the ADF Separation Pad [1].
• Pad Retainer [2]
• Sheet [3]
[1]
[2]
[3]
4. Disassembly/Assembly
139
