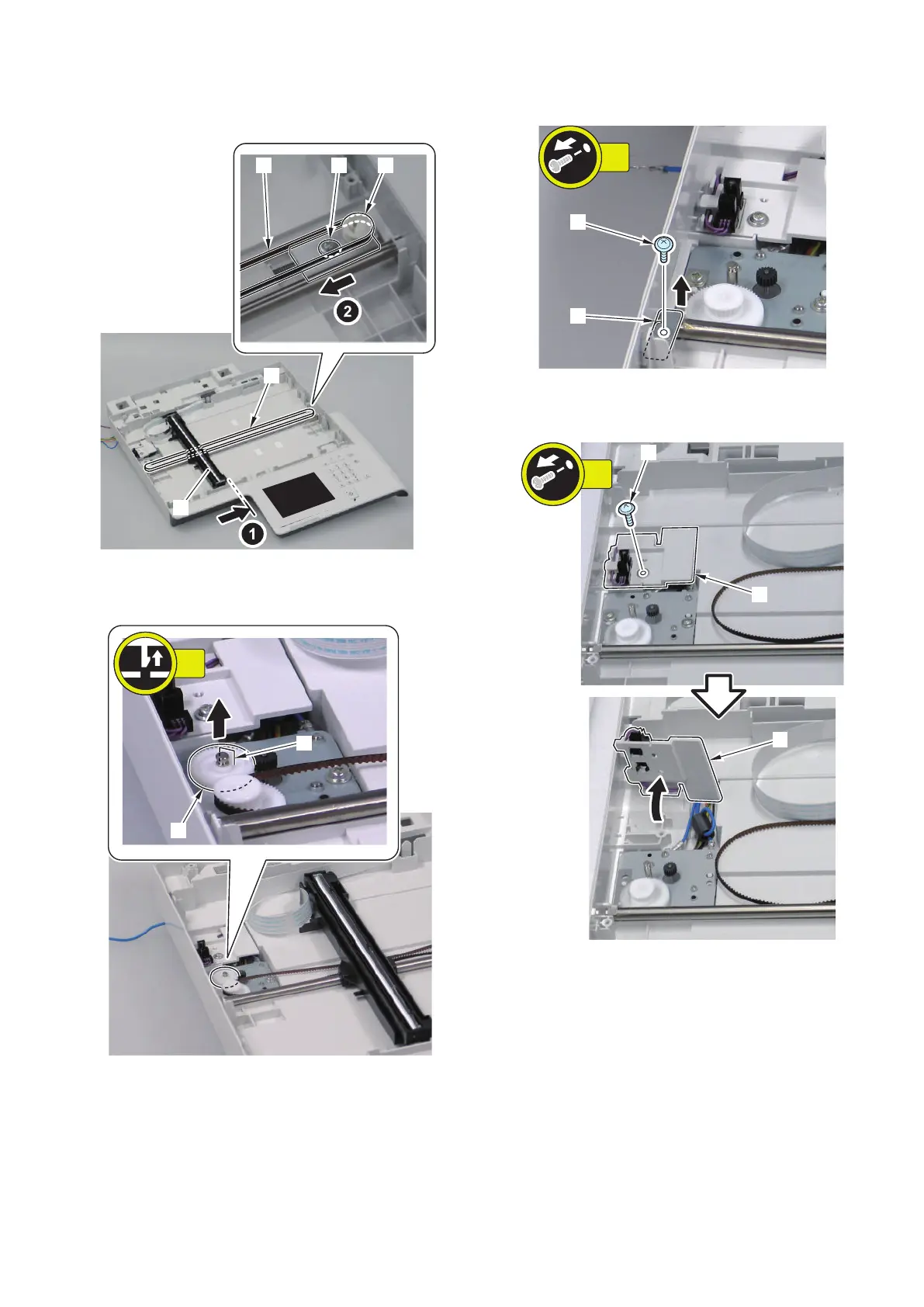

3. Loosen the screw [3] and move the Pulley Holder [4]
in the direction of the arrow to remove the Drive Belt
[1].
[4][1] [3]
[1]
[2]
4. Remove the gear [1].
• 1 claw [2]
[2]
[1]
1x
5. Remove the Shaft Retaining Plate [1].
• 1 screw [2]
[2]
[1]
1x
6. Move the Sensor Mount [1].
• 1 screw [2]
[1]
[2]
[1]
1x
