Conveyor Control System
In addition to the functions provided by the Control Power Box, this includes a module to drive the conveyor belt motor.
This module is available in two versions:
• Card MDT, for fixed-speed applications; in this case, a three-phase input power supply (230V or 400V) is
required;
• Card MDL, for variable-speed applications; in this case, a single-phase input power supply is required, as the
card incorporates an inverter with three-phase outputs.
The versions available, therefore, are the following:
Version
Application Input Voltage Maximum
power
absorbed
Output voltage
(motor power
supply) *
Maximum
power of
motor
Conveyor Control System/MDT
with MDT module for 230V power supply
Fixed speed 230V -18% / +10%, three-phase
without neutral, 48-62Hz
1250VA 230V -18% / +10%,
three-phase 48-62Hz
750W
Conveyor Control System/MDT
with MDT module for 400V power supply
Fixed speed 400V -18% / +10%, three-phase
with neutral, 48-62Hz
2500VA 400V -18% / +10%,
three-phase 48-62Hz
1500W
Conveyor Control System/MDL
with MDL module
Variable
speed
230V ± 10% single-phase 48-
62Hz
1000VA 230V three-phase
20-60Hz
750W
* three-phase asynchronous motor , delta connection
N.B.: if the device is to be mounted on the customer’s own conveyor belt, please specify the power supply voltage in the order.
The unit also incorporates the main switch, the controls for activating the belt and the LED indicators needed for
operation (STC card).
1 On/Off switch
2
control panel

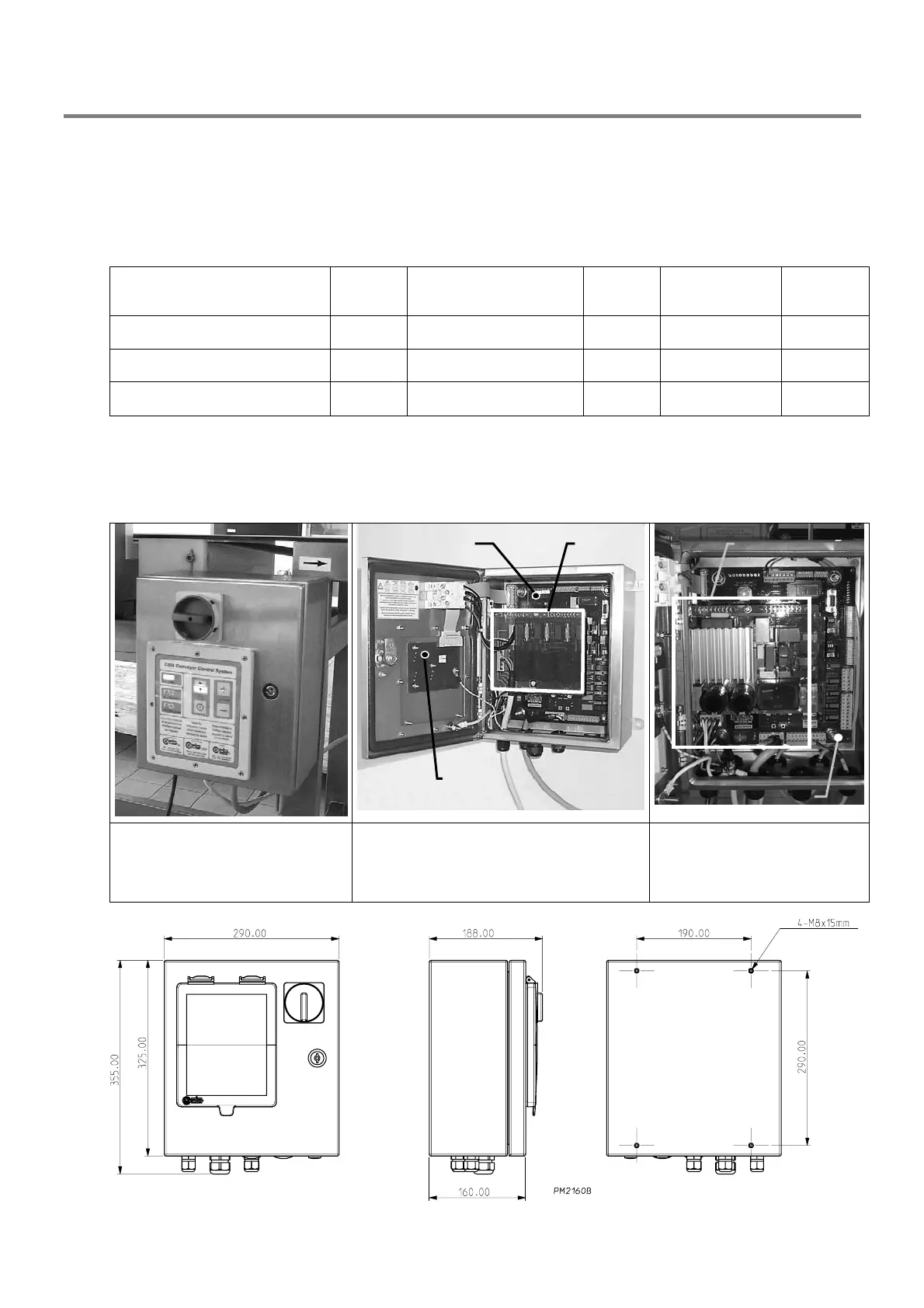

Fig. I-4a: View of the Conveyor
Control System
Fig. I-4b: Internal view of the Conveyor
Control System-MDT
Fig. I-4c: Internal view of the
Conveyor Control System-MDL
Fig. I-5 Conveyor Control System: rear and side views
2
1
MDL card
ALM card
ALM card
STC card
MDT
card
