Dimensioning of the motor: the voltage and frequency values of the motor must correspond to the mains voltage
available. The current limit values are shown in the table.
Motor overload protection: to safeguard the motor, it must be fitted with a suitable thermic relay or a magnetothermic
switch (see the diagram shown in the figure)
Fig. II-37b: motor protection. connection of a normally closed
contact
Fig. II-37c: motor protection. connection of a normally open
contact: note the jumper on contacts 4 and 5 of connector J25.
MDL card ( ATTENTION: 230V 1~ only! )

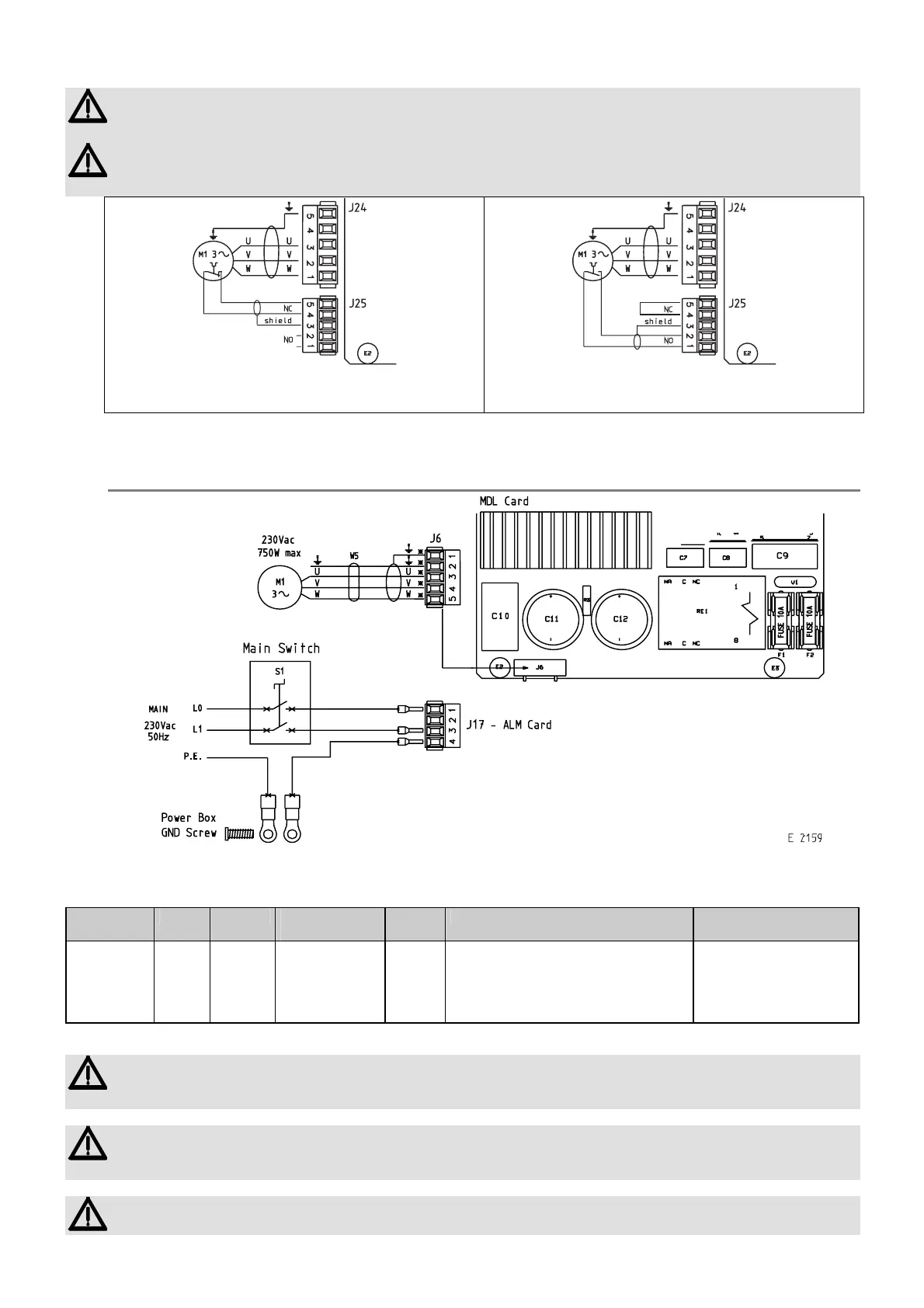

Fig. II-37e MDL card connections.
Table II-G: MDL card connections
Connector
Pin Label Input/
Output
Type Range /Max. value Function
MDL-J6 1
2
3
4
5
ground
ground
U
V
W
-
-
Output
Output
Output
ground
ground
U phase
V phase
W phase
-
-
230V – 2,7A (6 A max breakaway current)
230V – 2,7A (6 A max breakaway current)
230V – 2,7A (6 A max breakaway current)
Shield
Protection ground PE
motor power supply
motor power supply
motor power supply
The power supply voltage to the Conveyor Control System with ALM card must be within the range 230Vac ± 10%,
48-62Hz .
Motor overload protection: the motor is protected from overload directly by the card software:: select the motor
nominal current value for parameter CU (see Programming section).
WARNING! Do not connect the cable shielding at the motor end.
