THS – FI022GB2K8v3 --- V - MAINTENANCE
49

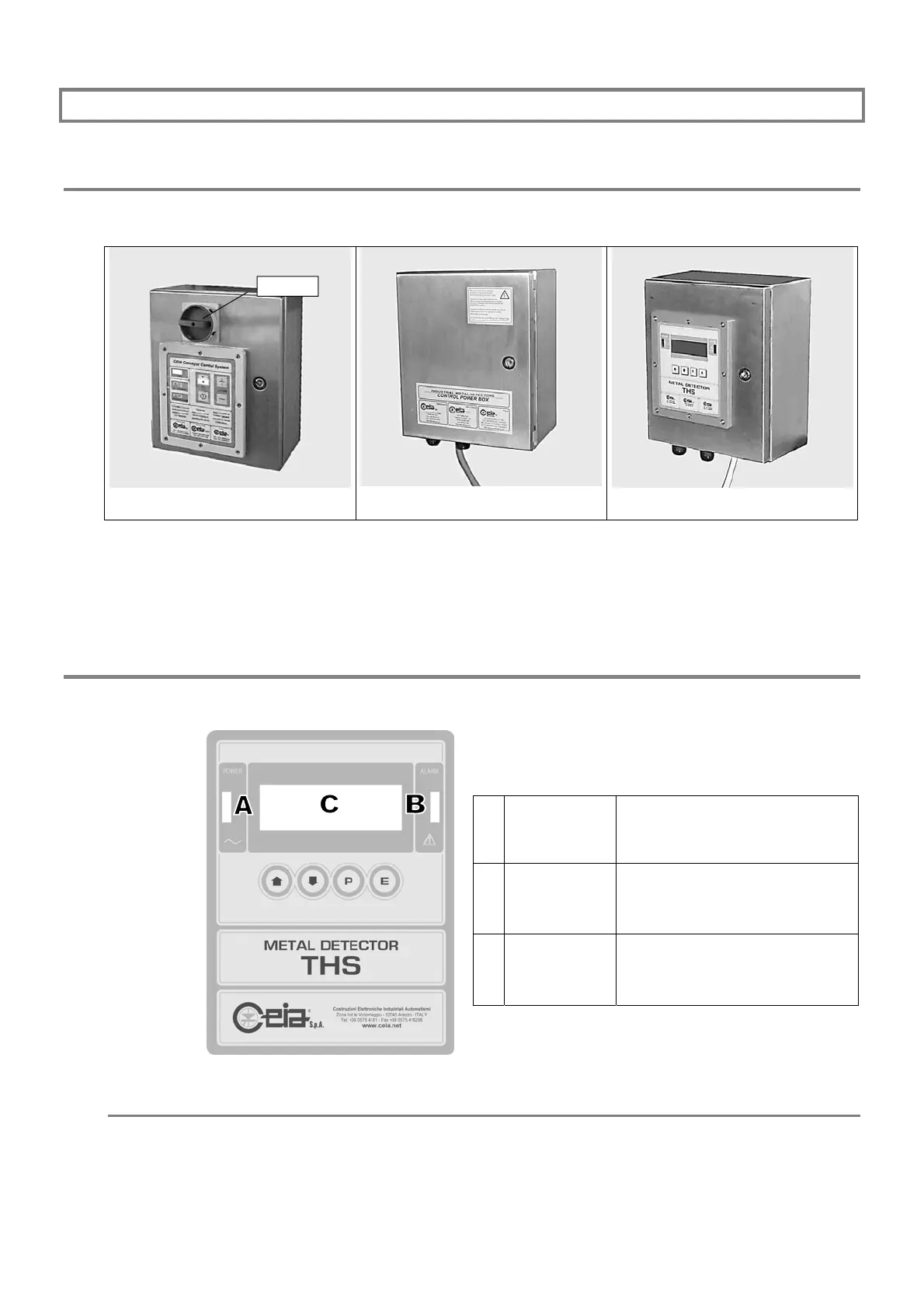

Controls and indicators
Power switch
On the Conveyor Control System model, the On/Off switch is located on the power supply unit cover; in the case of
the Control Power Box, an external switch must be fitted.
Fig. III-1a - Conveyor Control
System
Fig. III-1b - Control Power Box Fig. III-1b - Control Power Box in the
version for the THS/G
Control panel of the probe/electronics unit
The control panel, containing the optical indicators and the metal detector controls, is located on one side of the
electronics unit:
Control panel
A POWER
a green indicator indicates the
presence of power
B ALARM
a red indicator indicates the metal
detector alarm (detection of a metal
fragment or breakdown)
C
Alphanumeric
display
4 lines, of 20 characters each,
display the messages relating to use,
programming and self-diagnosis of
the device
Acoustical indicators
In the Power Control Box is included an acoustical indicator that is activated in case of alarm for the detection of metallic
fragments, for the signalization of a fault or for the request of an operator intervention.
Switch
