Installation of a CEIA THS-FB integrated system with conveyor belt
Disconnect the system from the various power sources before carrying out any movement.

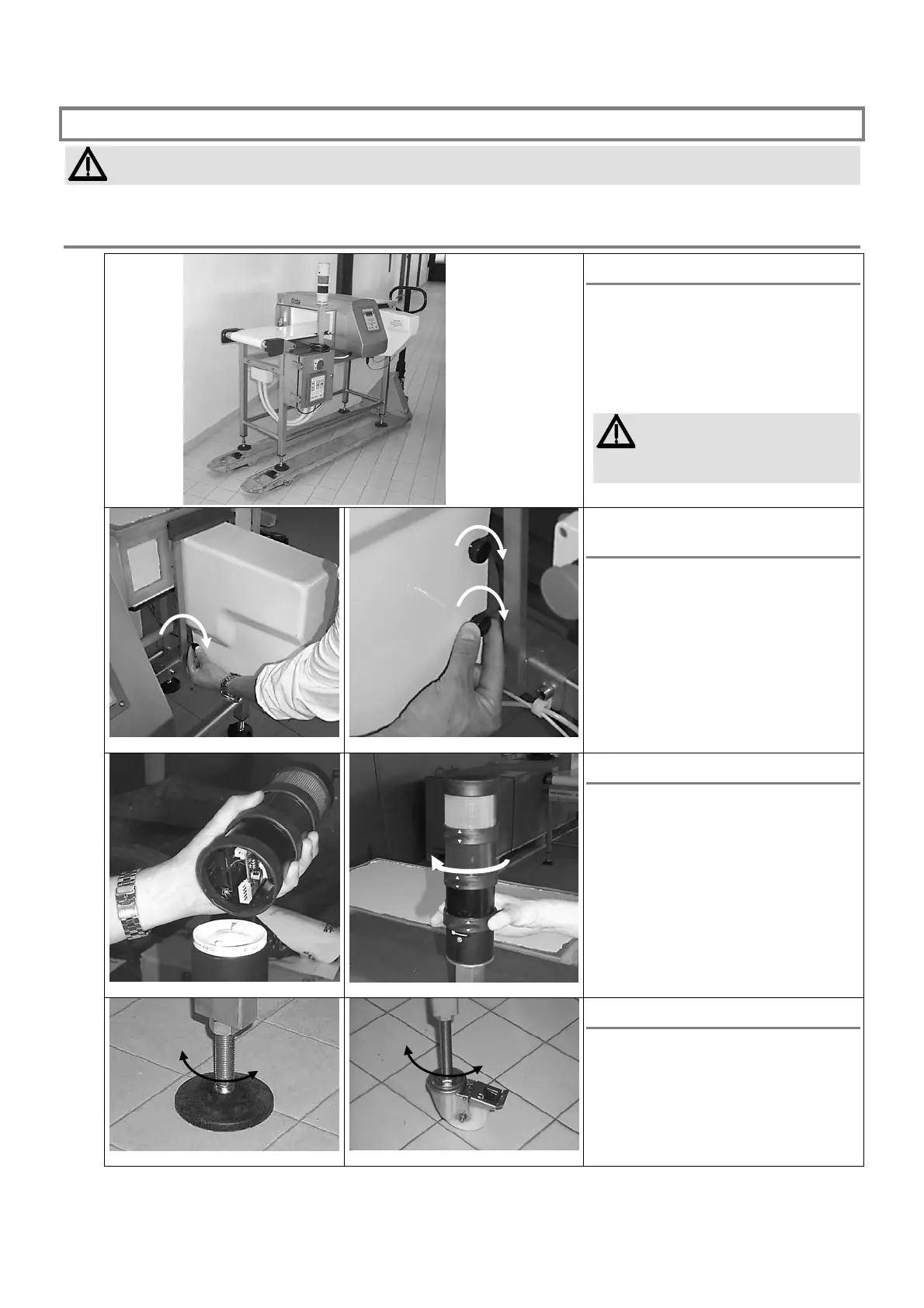

Mechanical installation of THS-FB integrated system with conveyor belt
Fig II-6
Positioning the conveyor belt
Use lift trucks or sling the load-bearing
structure, and ensure that the load is
balanced during movement. Avoid
deforming the structure or its component
parts. Keep the packaging materials for
possible future transport.
Never attach lifting gear to the
Metal Detector probe or the
actuators.
Fig II-7a Fig II-7b
Ejector: mounting the safety
shield
Fix the shield by tightening the knobs
provided.
Fig II-7c
Fig II-7d
Assembling the buzzer/flasher
Fit the buzzer/flasher module into the
support and rotate clockwise.
Fig II-8a - Adjusting a foot
Fig II-8b - Adjusting a castor
Adjusting the height of the belt
Raise or lower the adjustable feet or
castors of the load-bearing structure.
