THS – FI022GB2K8v3 --- V - MAINTENANCE
87

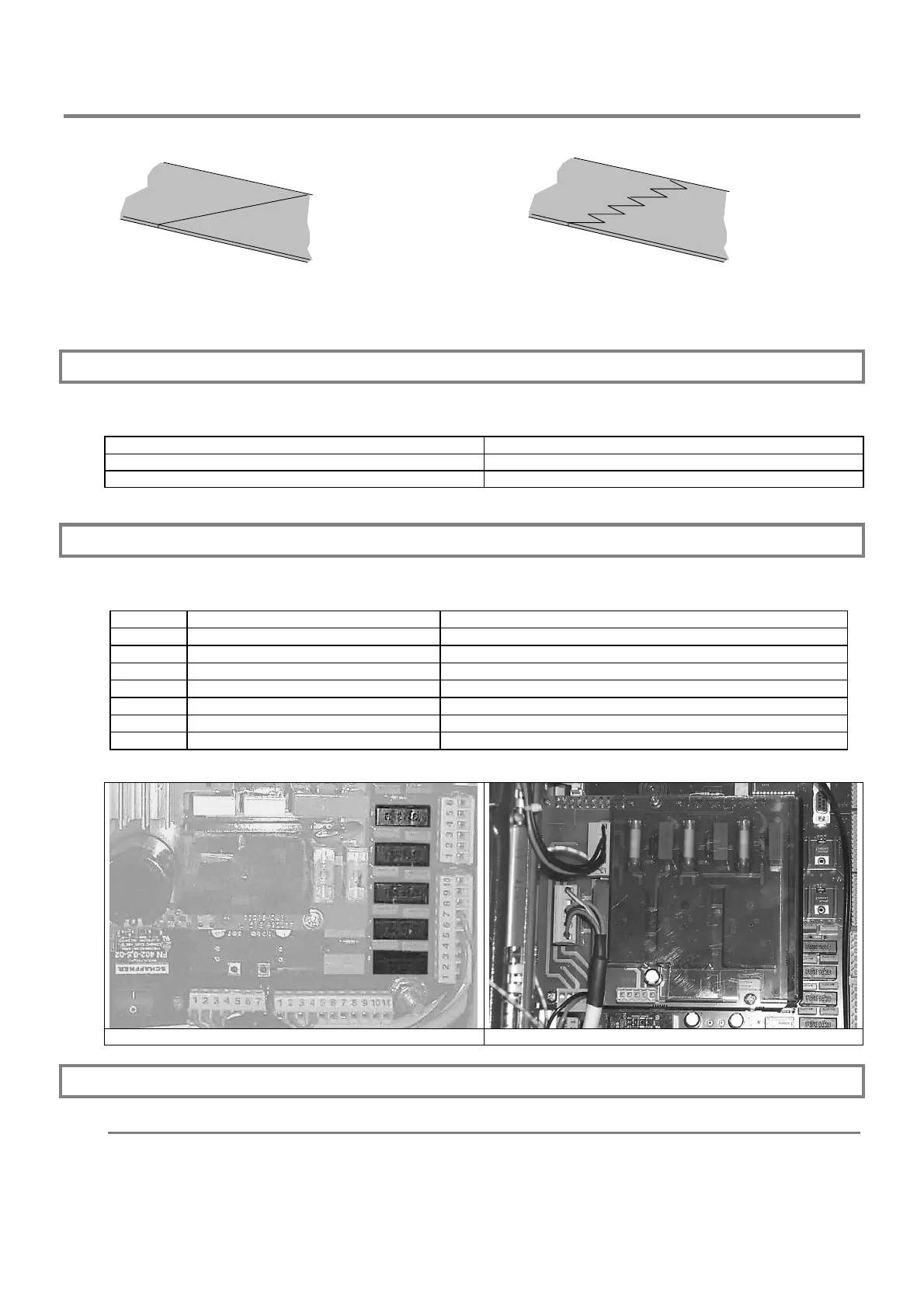

Replacing the belt
If the belt has to be joined, this should be done along a diagonal or, even better, in a zigzag, in order to minimise the
increase in thickness due to the joint.
Fig. V-5a : diagonal join Fig. V-5b: zigzag join
Disposal of the device and of consumables with environmental impact
For disposal follow the regulations in force in the country where the device is being used. The following components
should be taken into consideration:
Table V-3
Component Specifications
battery incorporated on card SCD Lithium 3.6V type CR1/2 AA
lubricant for motor drum EP SAE 90 oil for gears, or equivalent
Fuses
The figure shows the position and rating of the fuses fitted to the device.
Table V-4
Ref. Type Description
F1-F2
250V 10A, fast 5x20mm card power supply protection
P1
250V 3,15A fast 5x20mm upstream belt relay common contact protection
P2
250V 3,15A fast 5x20mm auxiliary relay common contact protection
P3
250V 3,15A fast 5x20mm metal detector alarm relay common contact protection
P4
250V 3,15A fast 5x20mm ejector relay common contact protection
P5
250V 3,15A fast 5x20mm malfunction relay common contact protection
F3-F4-F5
500V 10A, fast 6.3x32mm card MDT power supply protection
Fig V-6a - ALM and MDL card fuses Fig V-6b - MDT card fuses
Troubleshooting
Self-resetting protections
• The ALM card power supply inputs are protected by self-resetting components PTC.
• The MDL inverter card outputs are electronically protected against short circuit between two phases.
• The ALM card inputs are protected against wrong connection up to the voltages present on the card itself, with the
exception of the mains voltage.
Table V-5
F1
F2
P1
P2
P3
P4
P5
F3 F4 F5
