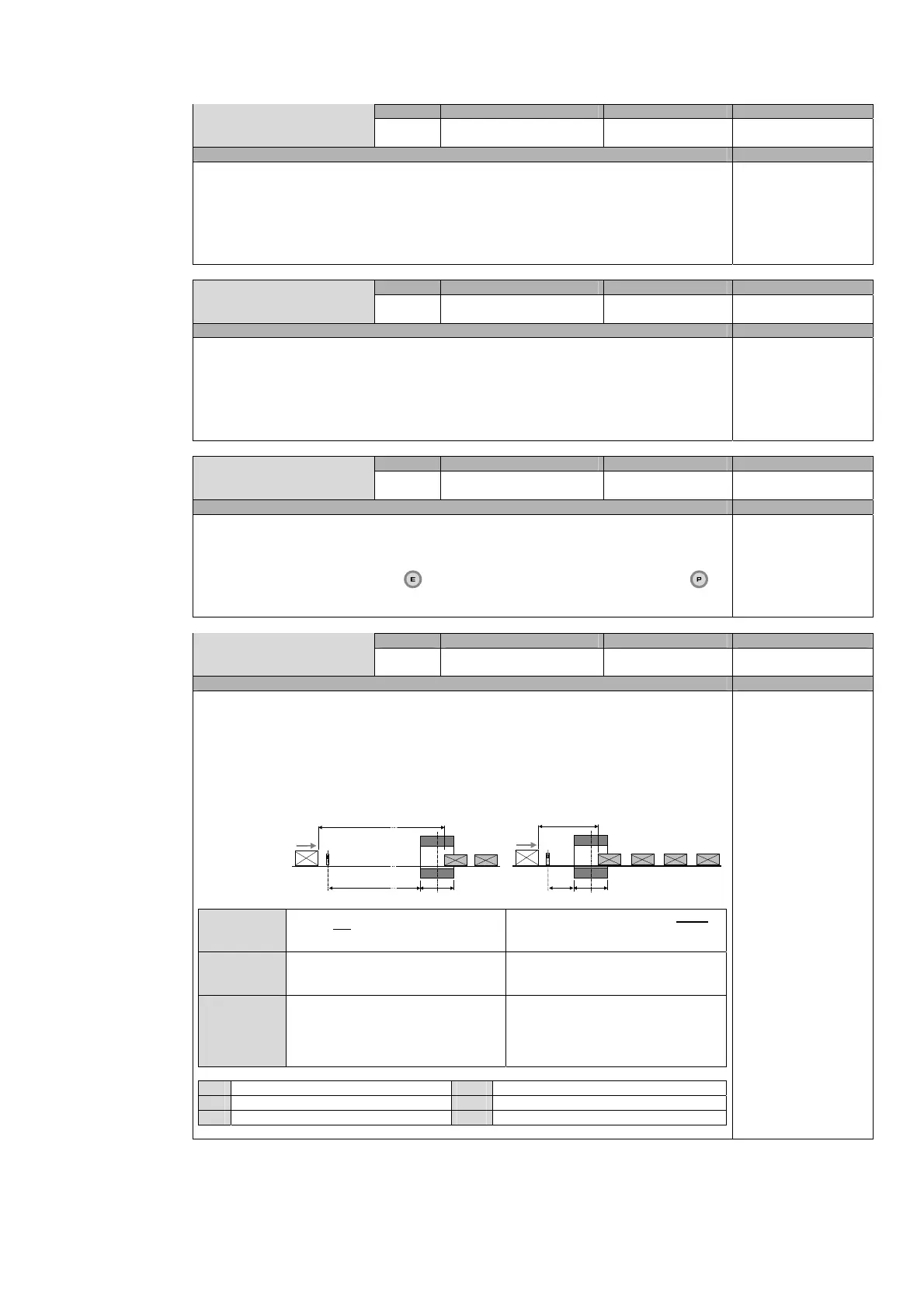

Ceia THS - Page 75

THS – FI022GB2K8v3 --- V - MAINTENANCE
69
Remote Possible settings Standard setting Parameter
Window start
WS
1 - 48 -
Global
Description Models
First of product identification characters
First character of series used to identify the product within the code.
Example: If on an EAN13 code (code length 13 digits) we want to ignore the first 2 digits,
we must set WS=3 and WE=13. In this case code 7004040090011 is considered the same
of code 8004040090011.
All models,
except THS/G
Remote Possible settings Standard setting Parameter
Window end
WE
1 - 48 -
Global
Description Models
Last of product identification characters
Last character of series used to identify the product within the code.
Example: If on an EAN13 code (code length 13 digits) we want to ignore the last 2 digits,
we must set WS=1 and WE=11. In this case code 8004040090011 is considered the same
of code 8004040090022.
All models,
except THS/G
Remote Possible settings Standard setting Parameter
Learn code
LC
ON / OFF OFF
Related to the current
product
Description Models
Activation of code/product association phase
Command which allows a code to be associated with a product. When activated (LC=ON), the message “Pass Code”
appears on the display. After the barcode is passed in front of the reader, the message “ENTER to confirm” and the
code read both appear on the display. Press
to associate the code read with the current product, press key
to cancel the operation. if one of the arrow keys is pressed, a new request to pass the barcode in front of the reader
is made.
All models,
except THS/G
Remote Possible settings Standard setting Parameter
Barc-MD dist.
BD
300 – 5000 mm -
Global
Description Models
Distance between reading point and antenna
The reader is mounted upstream of the probe in order to read a code printed on the package. If the code is
recognised, the reader sends a command to the metal detector to select the relevant product type. The time required
by the THS to process the barcode is usually insignificant, but becomes important if the band is changed due to a
modification in the type of product. When the metal detector receives the signal to change product type, an internal
adjustment procedure is activated the length of which determines the minimum distance between two packages with
different codes, that is to say containing different products.
L
S
Dp
BR
N
Dsbr
L
S
Dp
BR
N
D
sbr
Model / Event
THS/3F with
change of band (BA parameter)
between one product and the other
Other THS models and THS/3F without
change of band (BA parameter) between one
product and the other
Distance
between the
packs
D
p
≥
L + 3000 mm D
p
≥
L + 300 mm
Distance
between the
barcode reader
and the THS
probe
D
sbr
≥
3000 mm D
sbr
≥
300 mm
S probe/electronics unit of the metal detector L length of probe
N conveyor belt Dsbr Distance THS probe-barcode reader
BR Barcode reader Dp Distance between packs of different products
All models,
except THS/G
