M-Series Operator’s Manual 4/9/15
10-55
F7, F8 & F9 - Zoom In, Zoom Out & Zoom All F7 - Zoom In and F8 - Zoom Out, set the center of the plot to the
center of the crosshairs and Zoom In and Zoom Out respectively. F9 - Zoom All redraws the part with its
original scale.

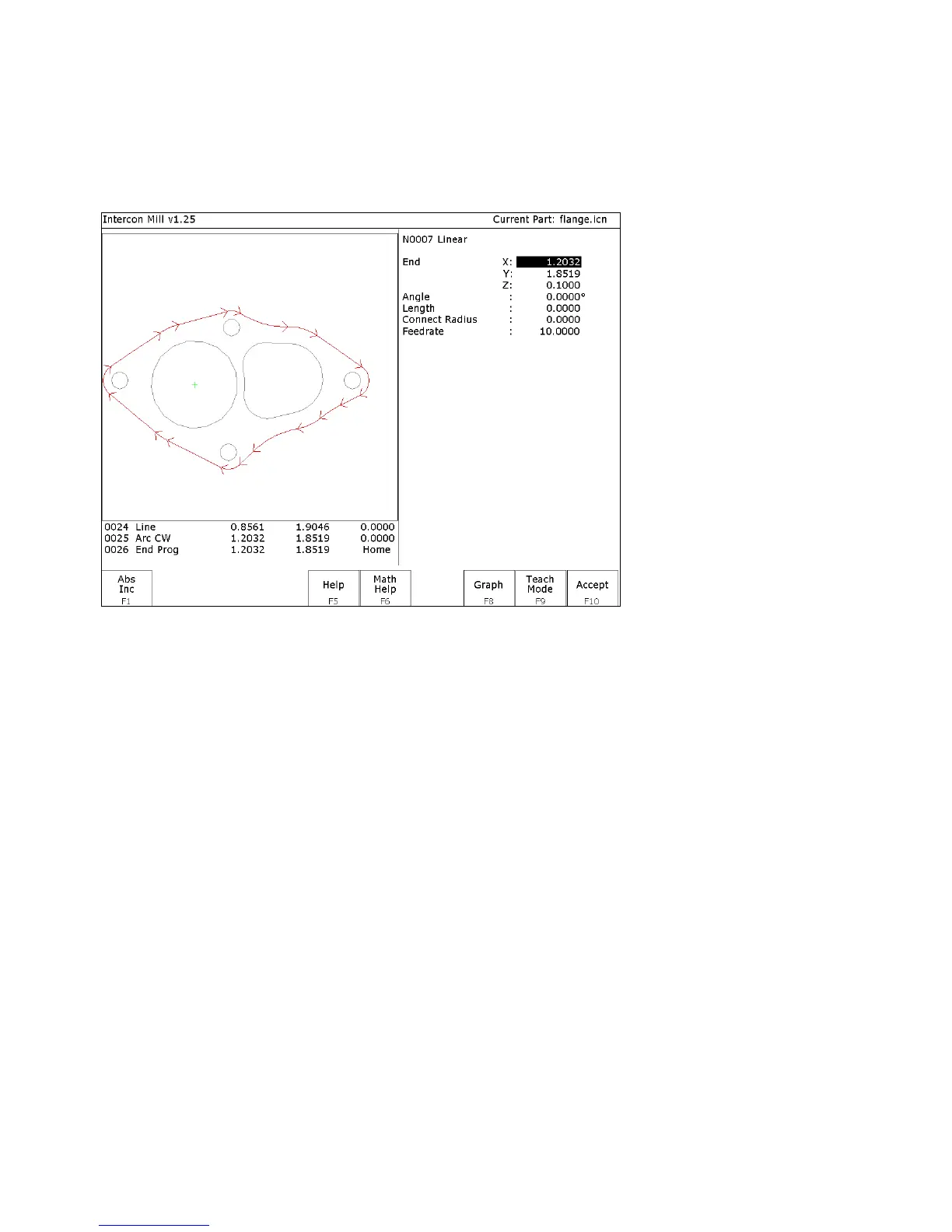

F10 – Done Accepts the selected chain and proceeds to the Intercon operation edit menu. The operation edit menu
allows you to enter values for fields such as feedrate and plunge rate. These values are copied to the rest of
the lines and arcs in the chain where applicable.
The keys F1 - Reverse, F2 - Single and F3 - Chain only appear when a line or arc is highlighted. The keys F5 - Undo
and F10 - Done only appear when one or more objects has been selected with F2 - Single or F3 - Chain.
Select Point menu
This menu allows you to select one or more points to be converted into Intercon Drilling/Threading operations. In this
menu, all selectable points are displayed as gray crosses. Selectable points include point entities, line/arc endpoints and
arc/circle center points. To select a point, position the crosshairs over the desired point until the cross turns red and
press F2 - Single to accept the point. More points can be selected by highlighting them with the crosshairs and
pressing F2 - Single. F1 - Window can be used to select all points within a specified window. When satisfied with the
selected point(s), press F10 - Done to edit the Intercon operation parameters.
