M-Series Operator’s Manual 4/9/15
10-81
Arc type :
EP&R
Mid: X
:
Y
:
Z
:
End: X
:
0.7496
Y
:
1.0003
Z
:
-0.0500
Center: X
:
Y
:
Z
:
Angle :
Radius :
1.2500
Plane :
XY
Direction :
CW
Feedrate :
10.0000
Angle <= 180°
:
No
F10 - Accept Keep selected values.
F3 - Arc The fourth arc to be cut is labeled as ARC 4 in Figure 3. The start
point, labeled P3, is the end point of the previous arc. The end
point of the arc will be generated with Math Help.
N0016 Arc mill
↑
↑↑
↑↓
↓↓
↓(ARROWS) Move down to the End X field. This selects End X as the
destination of the Math Help solution.
F6 - Math Help Re-display the Math Help values calculated for the last arc.

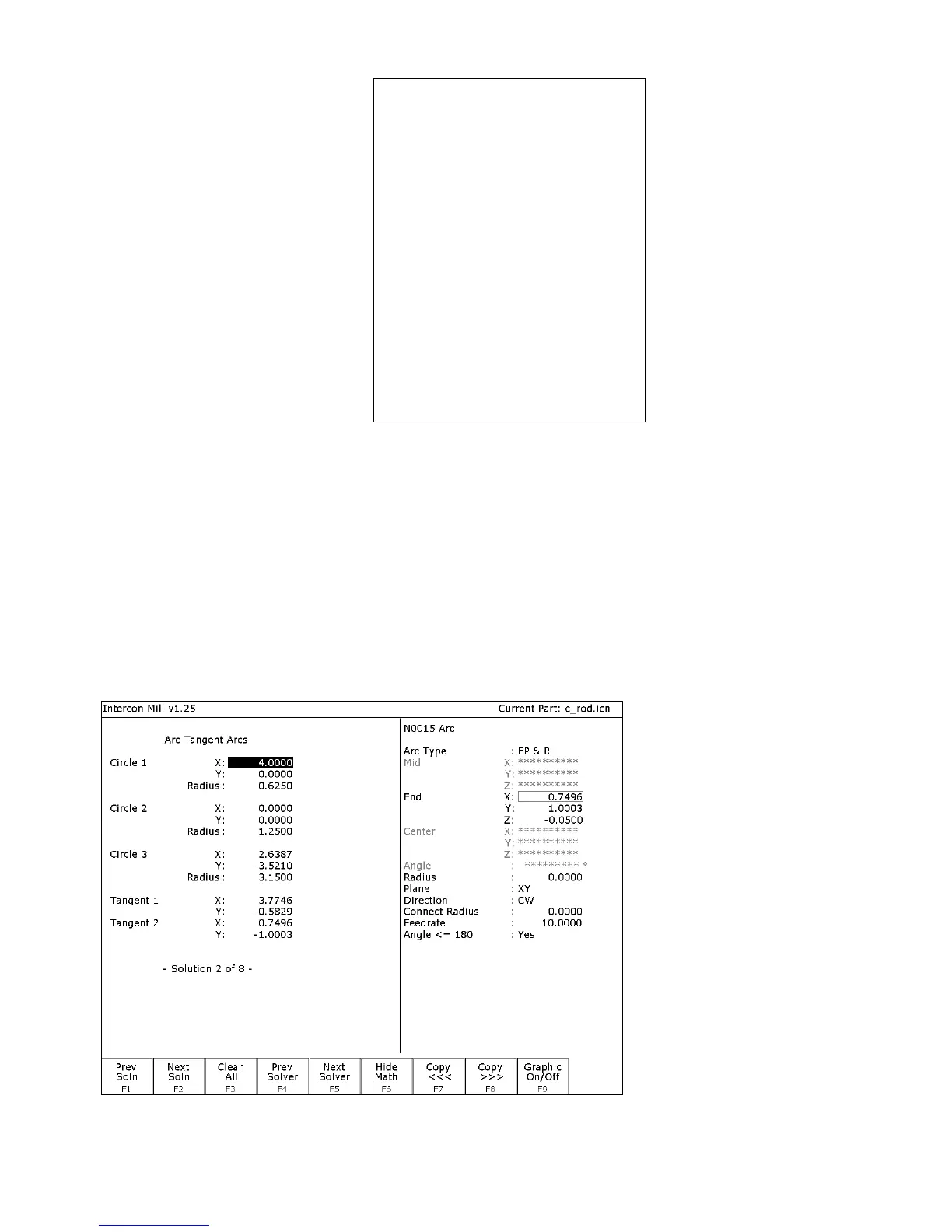

FIG. 8 - New arc 4 entry screen shown with solution for arcs 3 and 4 of Figure 3.
