Centroid M400 - Page 206

M-Series Operator’s Manual 4/9/15
12
-
24
G82 is a general purpose drilling cycle similar to G81. However, G82 includes an optional dwell at the bottom of
the hole before retracting the tool. This can make the depth of blind holes more accurate.
Example:
G82 X1 Y1 R.1 Z-.5 P.5 ; drill to Z-.5, dwell .5 seconds

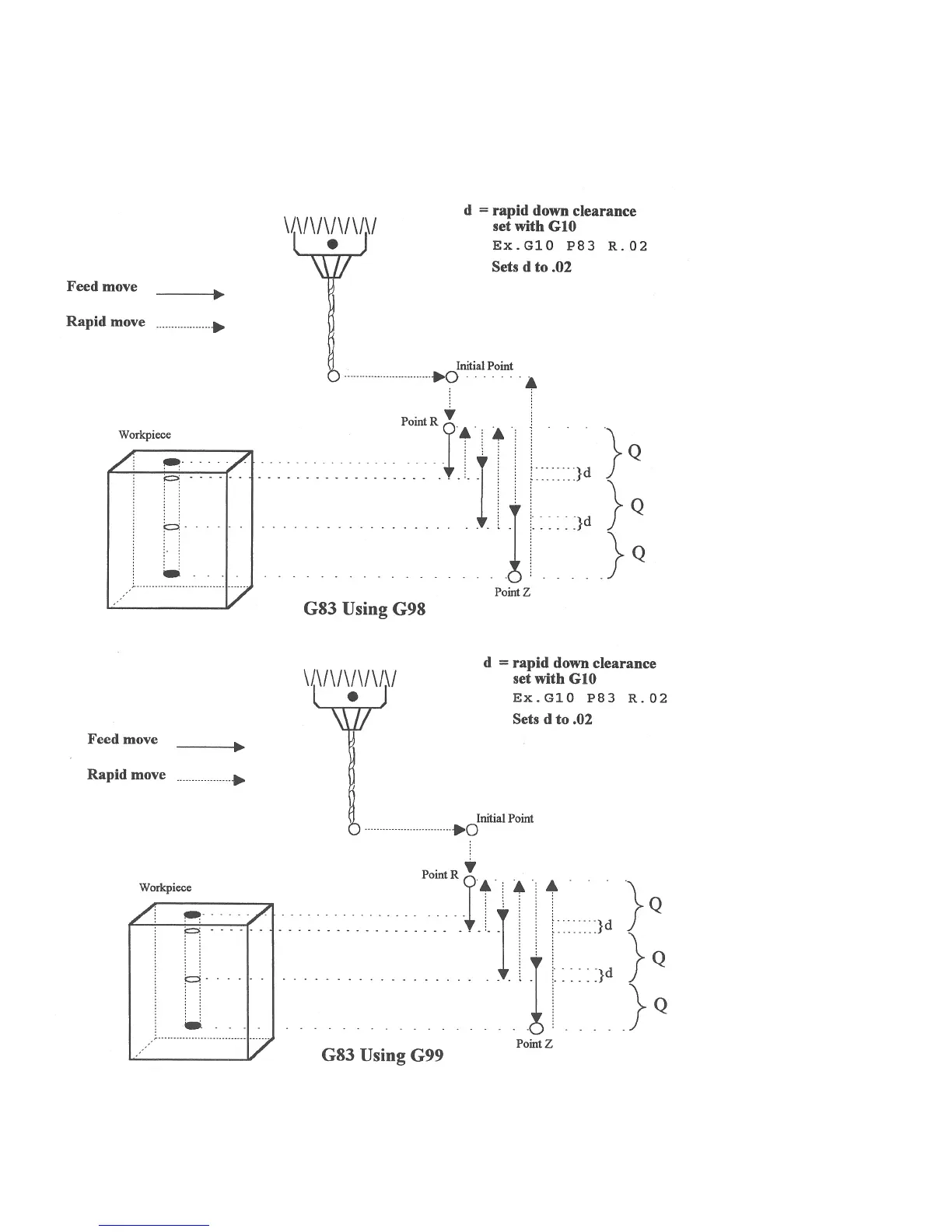

G83 - Deep hole drilling
