Configuring VLANs
Defining VLAN Properties
ESW 500 Series Switches Administration Guide 214
7

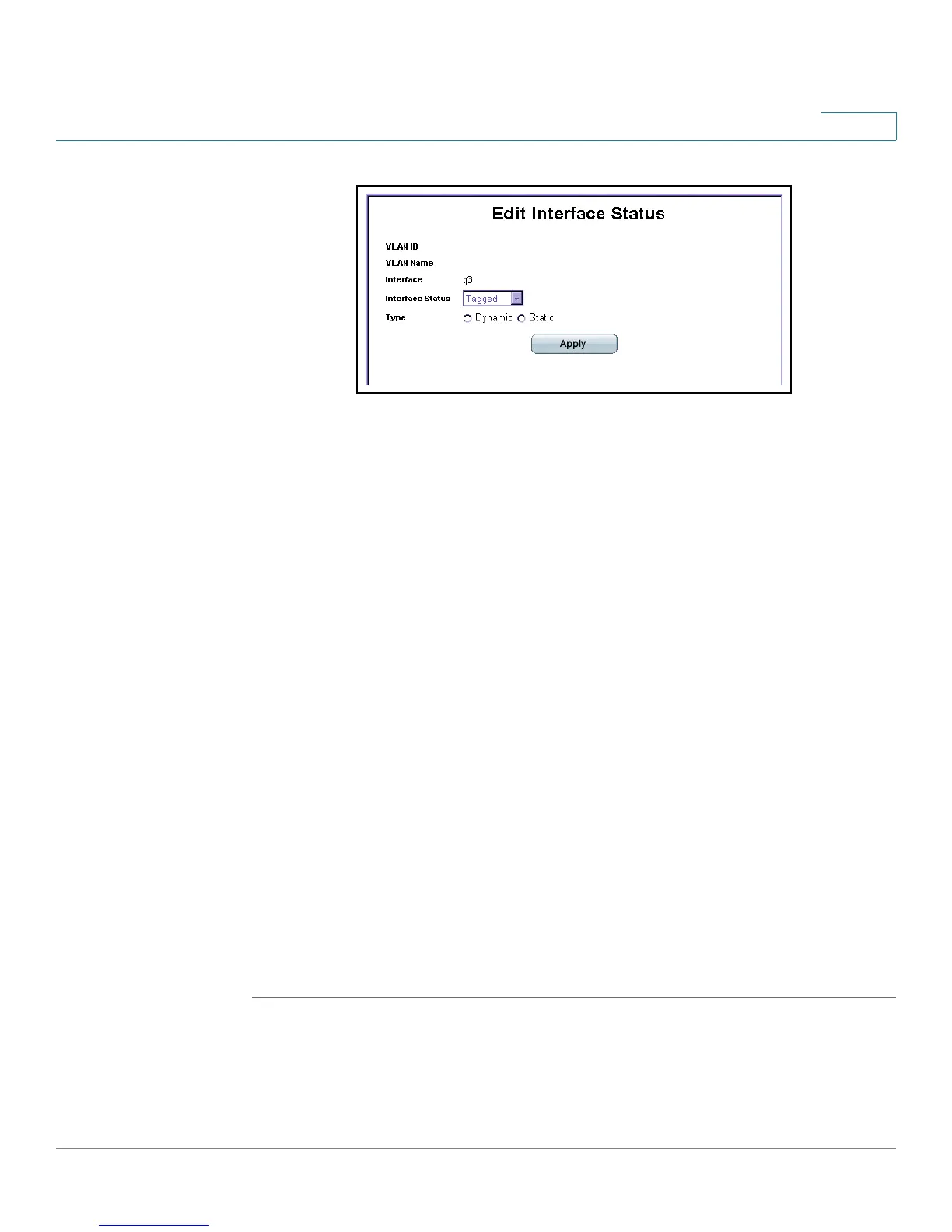

Edit Interface Status Page
The
Edit Interface Status Page
contains the following fields:
• VLAN ID — Displays the VLAN ID.
• VLAN Name — Displays the VLAN name.
• Interface — Defines the port or EtherChannel attached to the VLAN.
• Interface Status — Defines the current interface’s membership status in the
VLAN. The possible field values are:
-
Untagged
— Indicates the interface is an untagged VLAN member.
Packets forwarded by the interface are untagged.
-
Tagged
— Indicates the interface is a tagged member of a VLAN. All
packets forwarded by the interface are tagged. The packets contain
VLAN information.
-
Exclude
— Excludes the interface from the VLAN. However, the interface
can be added to the VLAN through GARP.
-
Forbidden
— Denies the interface VLAN membership, even if GARP
indicates the port is to be added.
• Type — Indicates the VLAN type, Dynamic indicates the VLAN was
dynamically created through GARP, Static indicates the VLAN is user defined.
STEP 5 Define the relevant fields.
STEP 6 Click Apply. VLAN Membership is modified, and the device is updated.
