Getting Started
Navigating The Cisco Switch Configuration Utility
ESW 500 Series Switches Administration Guide 18
1
Navigating The Cisco Switch Configuration Utility
The Cisco Switch Configuration Utility is a web-based device manager that is
used to provision the switch. You must have IP connectivity between the PC and
the switch to configure the switch. The following section describes how to
navigate within the interface.

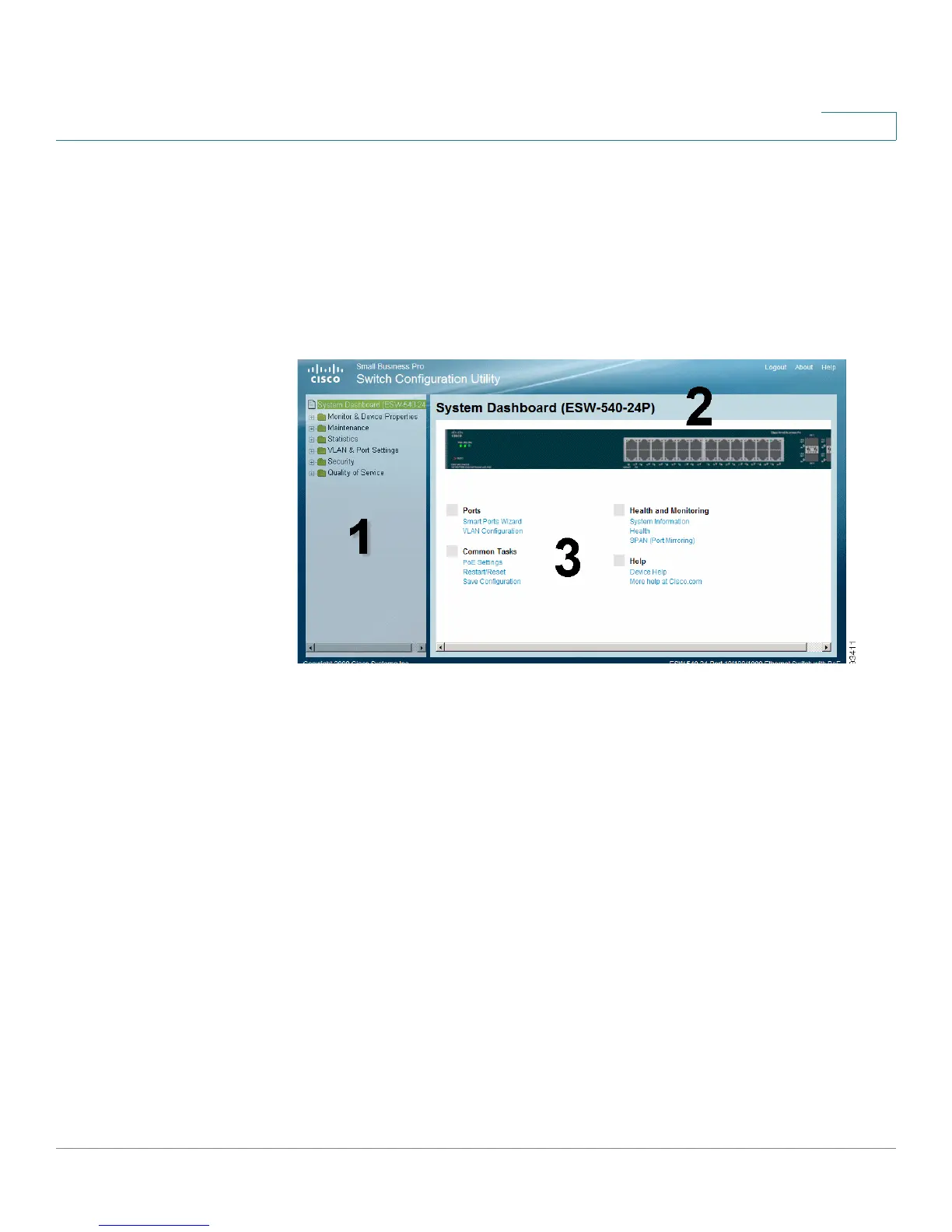

Switch Configuration Utility - System Dashboard Page
The following table lists the interface components with their corresponding
numbers:
Using the Management Buttons
Device Management buttons and icons provide an easy method of configuring
device information.
Component Description
1 Navigation Pane The navigation pane provides easy navigation through the
configurable device features.The main branches expand
to provide the subfeatures.
2 Device View The device view contains a graphical representation of
the device faceplate, including the device status and port
LEDs. Clicking on a port will open up the Edit Port Page.
3 Getting Started
Links
The getting started links allow you to navigate through the
different device features.
