Modifying the VLAN Rate Limit
STEP 1 Click Quality of Service > General > VLAN Rate Limit. The VLAN Rate Limit Page
opens:
STEP 2 Click the Edit button. The VLAN Rate Limit Page opens:

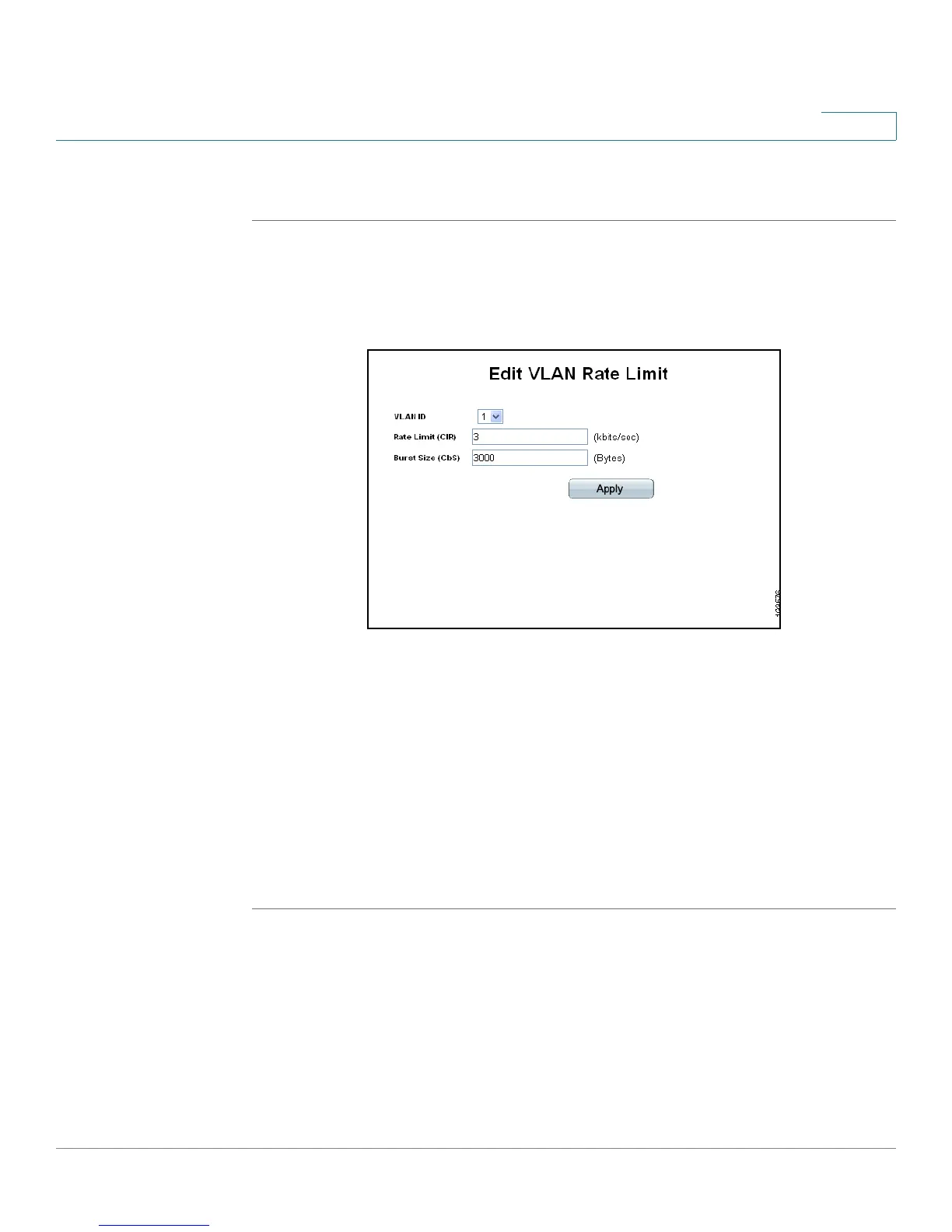

Edit VLAN Rate Limit Page
The
VLAN Rate Limit Page contains the following fields:
• VLAN ID – Defines the VLAN on which to apply the Rate Limit.
• Rate Limit (CIR) – Defines the maximum rate (CIR) in kbits per second (Kbps)
that forwarding traffic is permitted in the VLAN.
• Burst Size (CbS) – Defines the maximum burst size (CbS) in bytes that
forwarding traffic is permitted through the VLAN.
STEP 3 Define the relevant fields.
STEP 4 Click Apply. The VLAN Rate Limit is modified, and the device is updated.
Defining Advanced QoS Mode
Advanced QoS mode provides rules for specifying flow classification and
assigning rule actions that relate to bandwidth management. The rules are defined
in classification control lists (CCL).
