Getting Started

Performing Common Configuration Tasks

ESW 500 Series Switches Administration Guide 20

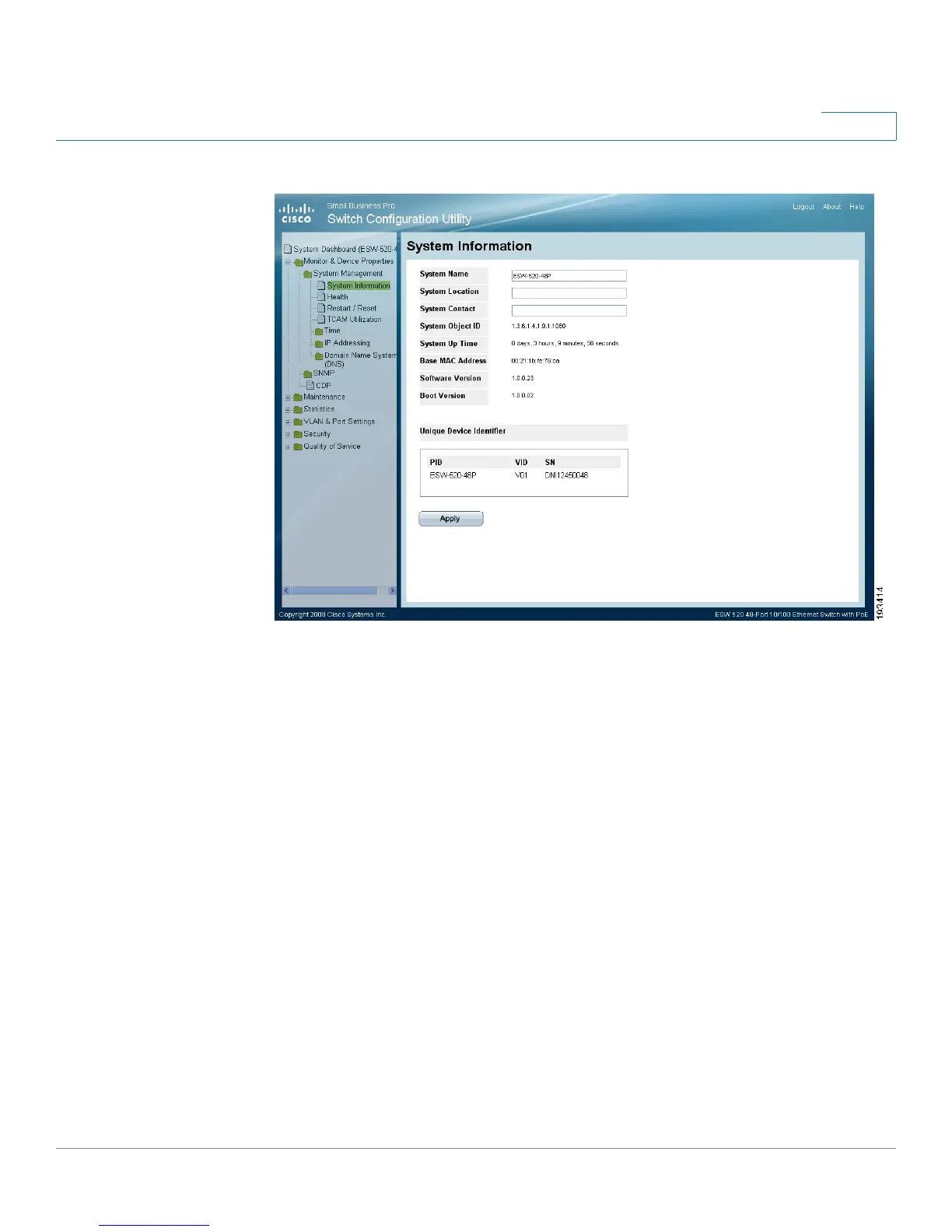

System Information Page

From this page you can configure the hostname of the switch, location and contact

information for support. Also, you can view important information such as the

system uptime, software version, MAC Address and Serial Number (SN).

Viewing what Devices are Attached to the Switch

To view what devices there are attached to the switch, click Monitor & Device

Properties > CDP. The

CDP page

opens.
