Configuring VLANs

Defining a Protocol Port

ESW 500 Series Switches Administration Guide 229

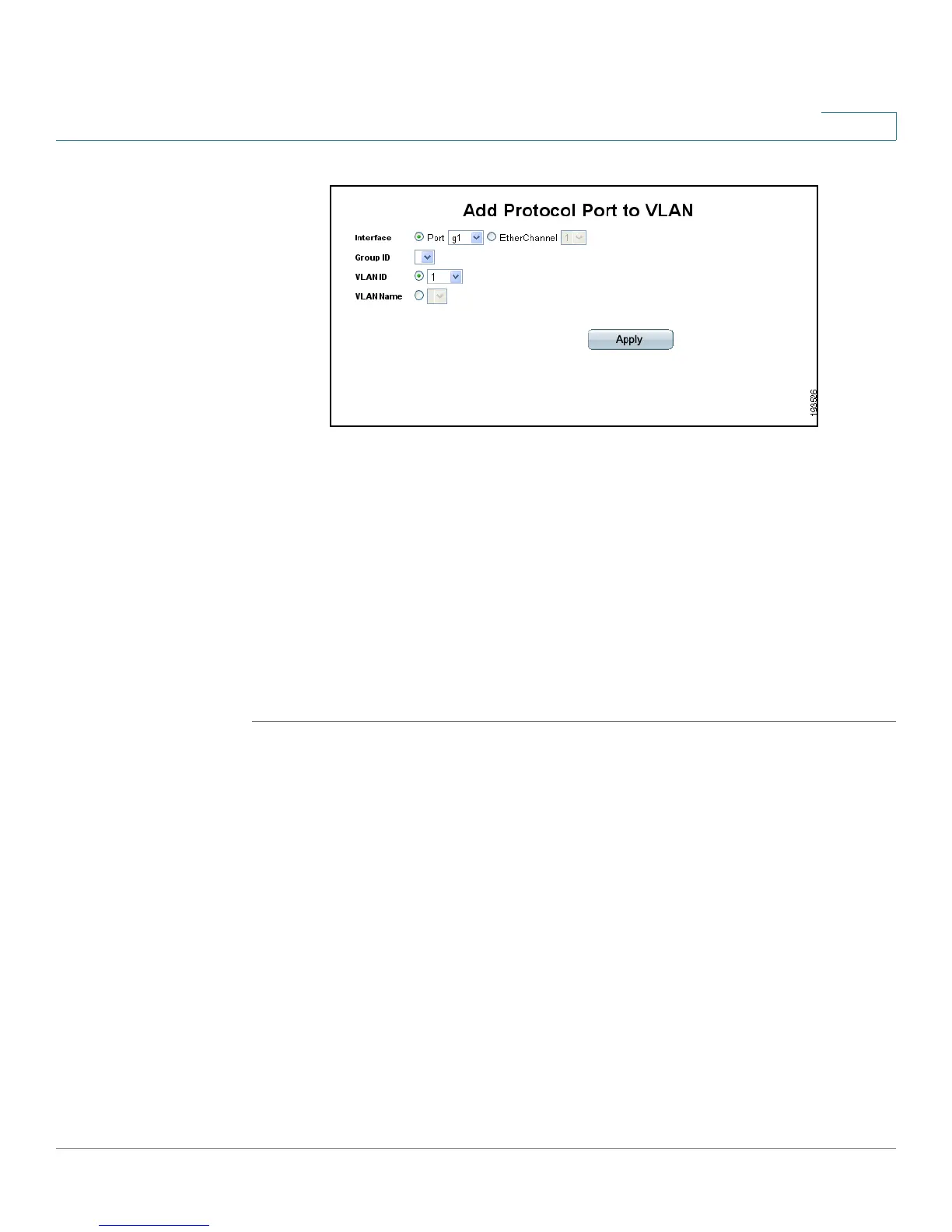

Add Protocol Port to VLAN Page

The

Add Protocol Port to VLAN Page

contains the following fields.

• Interface — Port or EtherChannel number added to a protocol group.

• Group ID — Protocol group ID to which the interface is added. Protocol group

IDs are defined in the Protocol Group Table.

• VLAN ID — Attaches the interface to a user-defined VLAN ID.

• VLAN Name — Attaches the interface to a user-defined VLAN Name.

STEP 3 Define the relevant fields.

STEP 4 Click Apply. The protocol ports are mapped to VLANs, and the device is updated.
