Configuring Quality of Service

Managing QoS Statistics

ESW 500 Series Switches Administration Guide 294

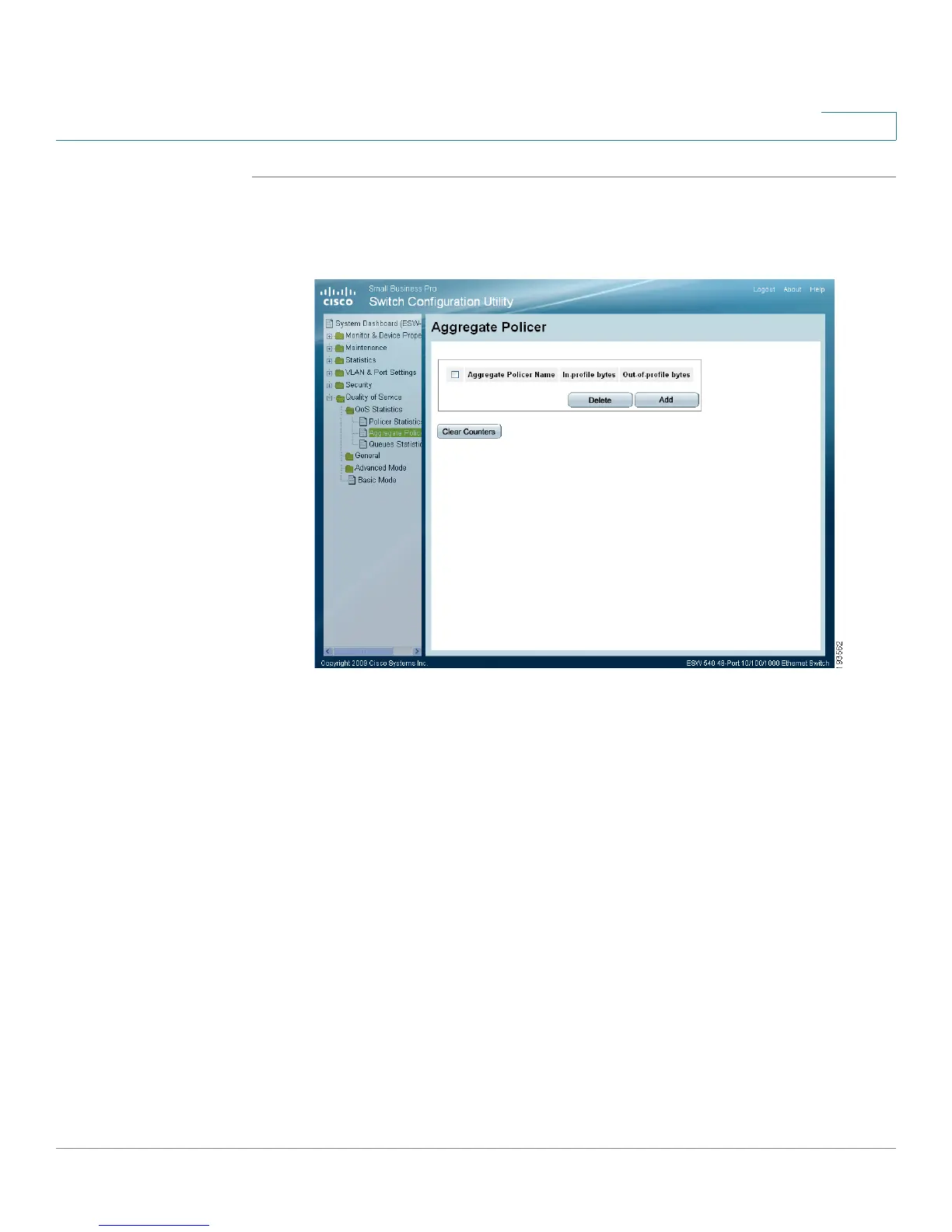

STEP 1 Click Quality of Service > QoS Statistics > Aggregate Policer . The

Aggregate

Policer Page

opens:

Aggregate Policer Page

The

Aggregate Policer Page

contains the following fields:

• Aggregate Policer Name — Indicates the port or EtherChannel on which the

packets were received.

• In-profile Bytes — Displays the total number of in-profile packets that were

received.

• Out-of-profile Bytes — Displays the total number of out-of-profile packets that

were received.
