Viewing Statistics
Configuring RMON History
ESW 500 Series Switches Administration Guide 407
17
STEP 1 Click Statistics > RMON (Remote Management) > Alarms. The RMON Alarms Page
opens:

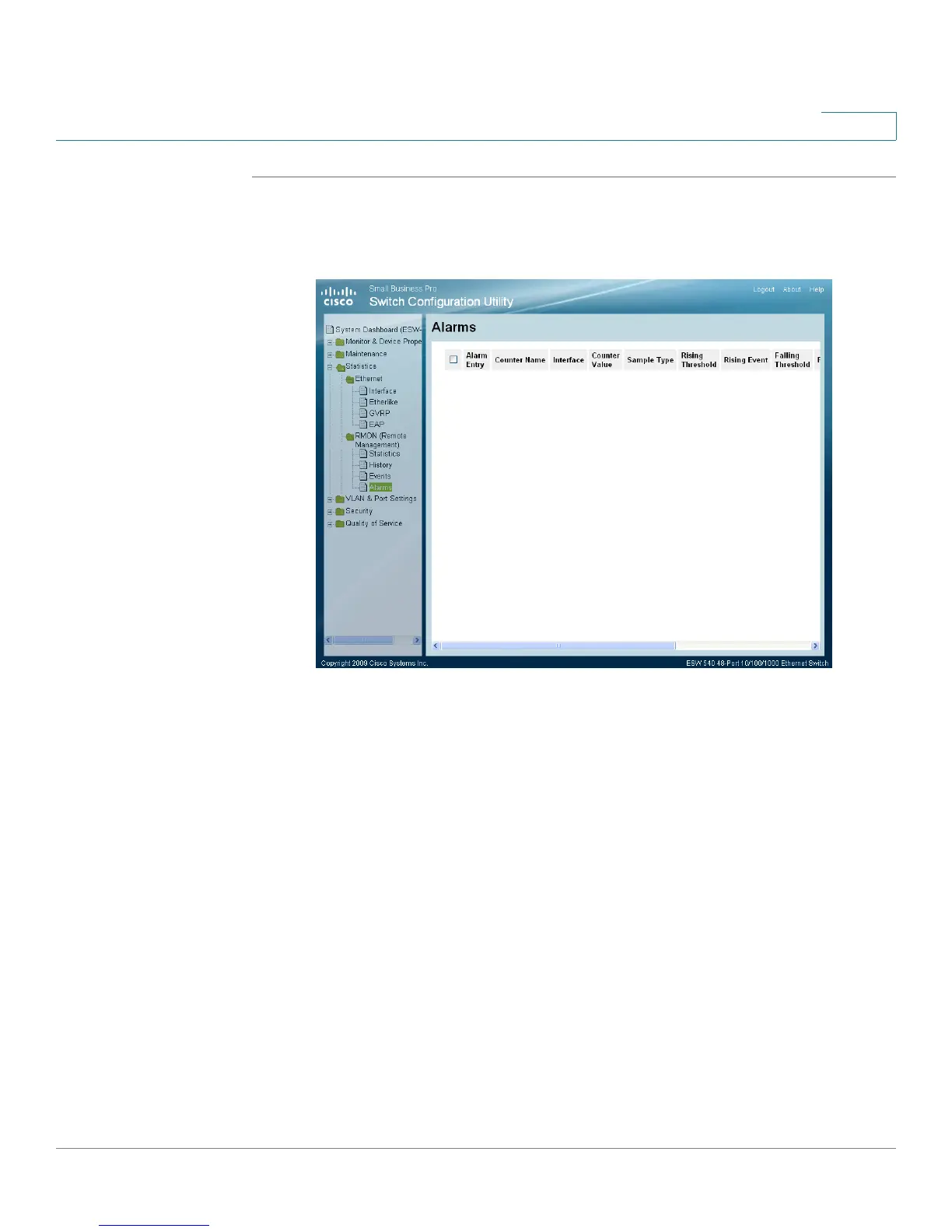

RMON Alarms Page
The
RMON Alarms Page contains the following fields:
• Alarm Entry — Indicates the alarm entry number.
• Counter Name — Displays the selected MIB variable.
• Interface — Displays the interface (port or EtherChannel) for which RMON
statistics are displayed. The possible field values are:
- Port — Displays the RMON statistics for the selected port.
- EtherChannel — Displays the RMON statistics for the selected
EtherChannel.
• Counter Value — Displays the current counter value for the particular alarm.
• Sample Type — Defines the sampling method for the selected variable and
comparing the value against the thresholds. The possible field values are:
- Delta — Subtracts the last sampled value from the current value. The
difference in the values is compared to the threshold.
