QINEO Wire Drive A4

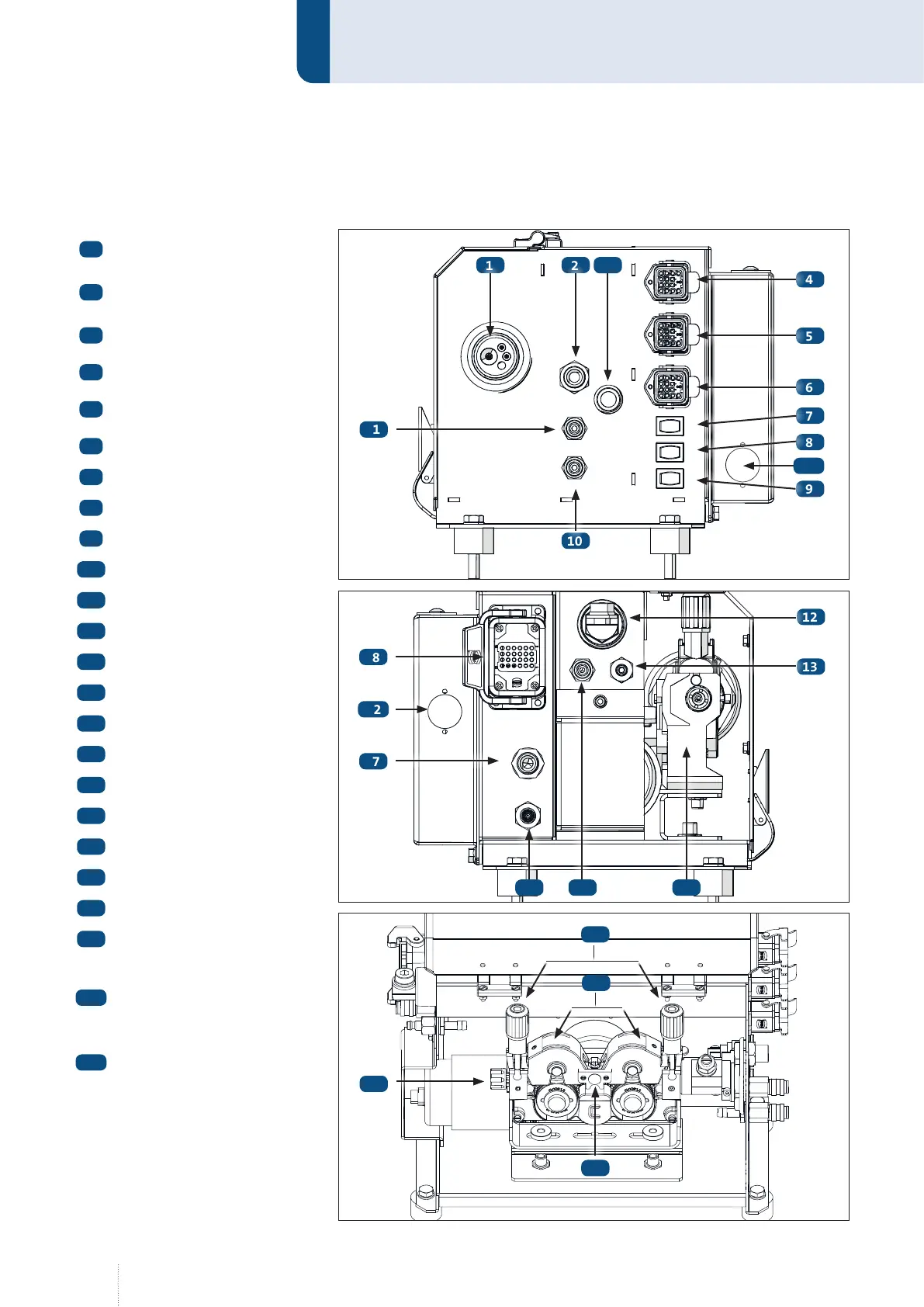

3.1 Structure and function A4
1
Torch cable assembly connection
(here: EURO connection)
2
"Blow out" connection (for EURO
connection)
3
Torch trigger connection (for SZ
connection)
4 MCU connection
5
Connection for collision protec-
tion, gas nozzle sensor etc.
6 CDD/MD connection
7 Button "Gas manually"
8 Button "Wire forward"
9 Button "Wire backward"
10 Cooling water connection red
11
Cooling water connection blue
12 Power connection
13 Cooling water connection blue
14 QN-WF-22-HD
15
Cooling water connection red
16 Gas connection
17 "Blow out" connection
18 Device connection
19 Pressure clamps
20 Pressure rollers
21 Middle wire guide piece
22 Wire feed nozzle
O1
Key switch Wire end control
(optional), see circuit diagram:
C = contact sensor
R = ring sensor
O2
Wire end control connection
(optional)
