1. Operating controls
The PREMIUM operating module with its enhanced range of functions
meets the most demanding requirements for a practice-oriented, conveni-
ent operation. A 320 x 240 pixel LCD colour display with function buttons
on the side enables simple operation even when programming extensive
welding tasks.
Item Description
1 Function keys F1-F8
2 Colour LCD display
3 LED (arc start)
4 Rotary knob 1 (power/wire speed)
5 Keys (Esc, MAIN, job, job selection)
6 Rotary knob 3 (parameter adjustment)
7 Slot for SD memory card
8 Rotary knob 2 (fine adjustment ArcLength/ArcDynamic)
9 LED (ArcDynamic)
1
3 4
5
6 7 8 9
2
1

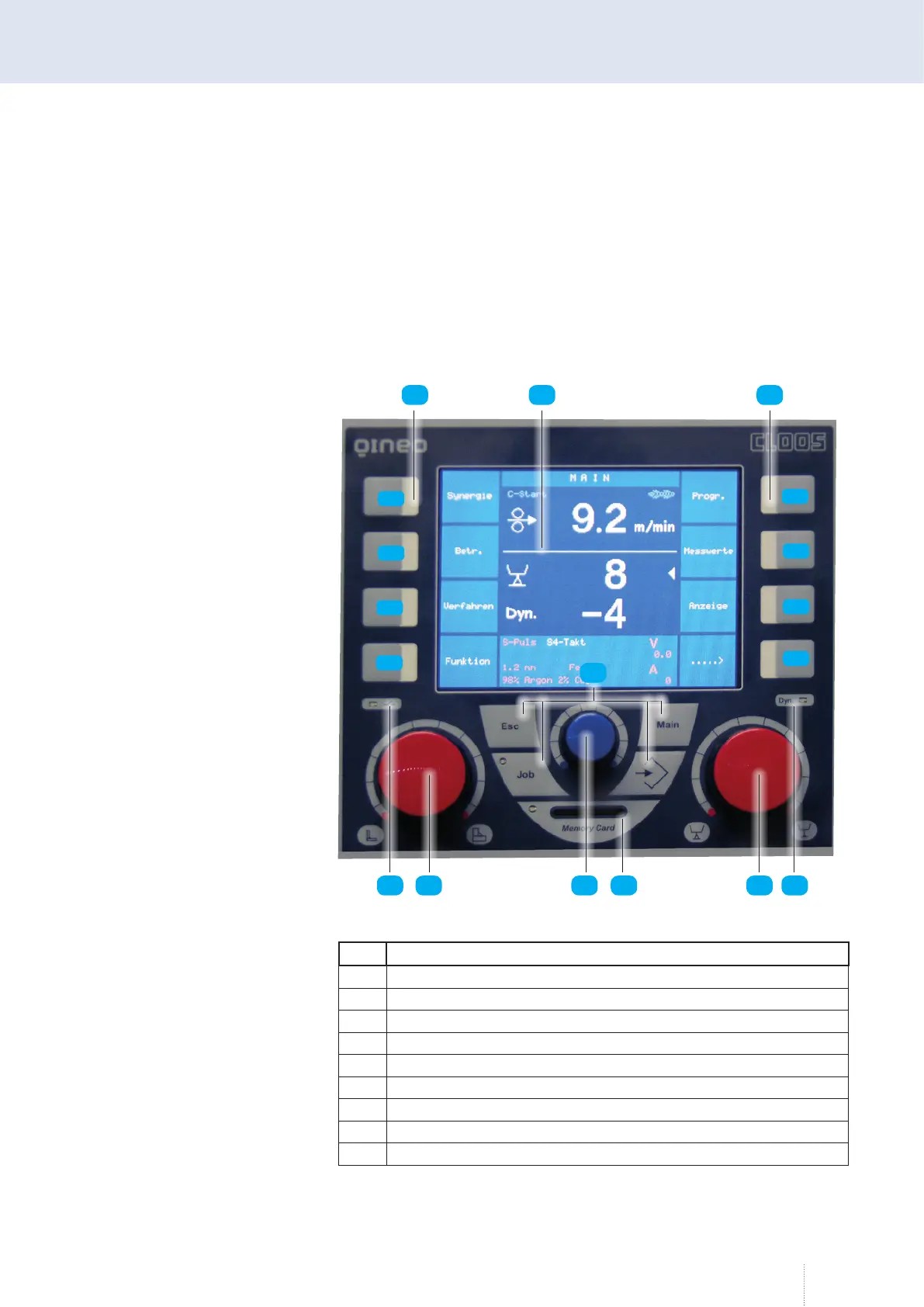

Figure 8. Premium operating module, general view
F1
F2
F3
F4
F5
F6
F7
F8
