4.1.2 Phase shift
The pulse phases [f
1
, f
2
, … f
n
] of as many welding power sources as desired
can now be synchronised with each other.
Name Function
"Pulse receiver
synchronous"
The welding power source executes its pulses at the
same time as the "pulse generator".
"Pulse receiver
synchronous ½"
The welding power source executes every second
pulse at the same time as the "pulse generator" so
that it welds with half of the pulse frequency.
"Pulse receiver
alternating"
The welding power source executes the pulse
temporarily offset before or after the pulse of the
"pulse generator". The offset depends on the set
phase shift.
"Pulse receiver
alternating ½"
The welding power source executes every second
pulse temporarily offset before or after the pulse of
the "pulse generator". The offset depends on the set
phase shift.

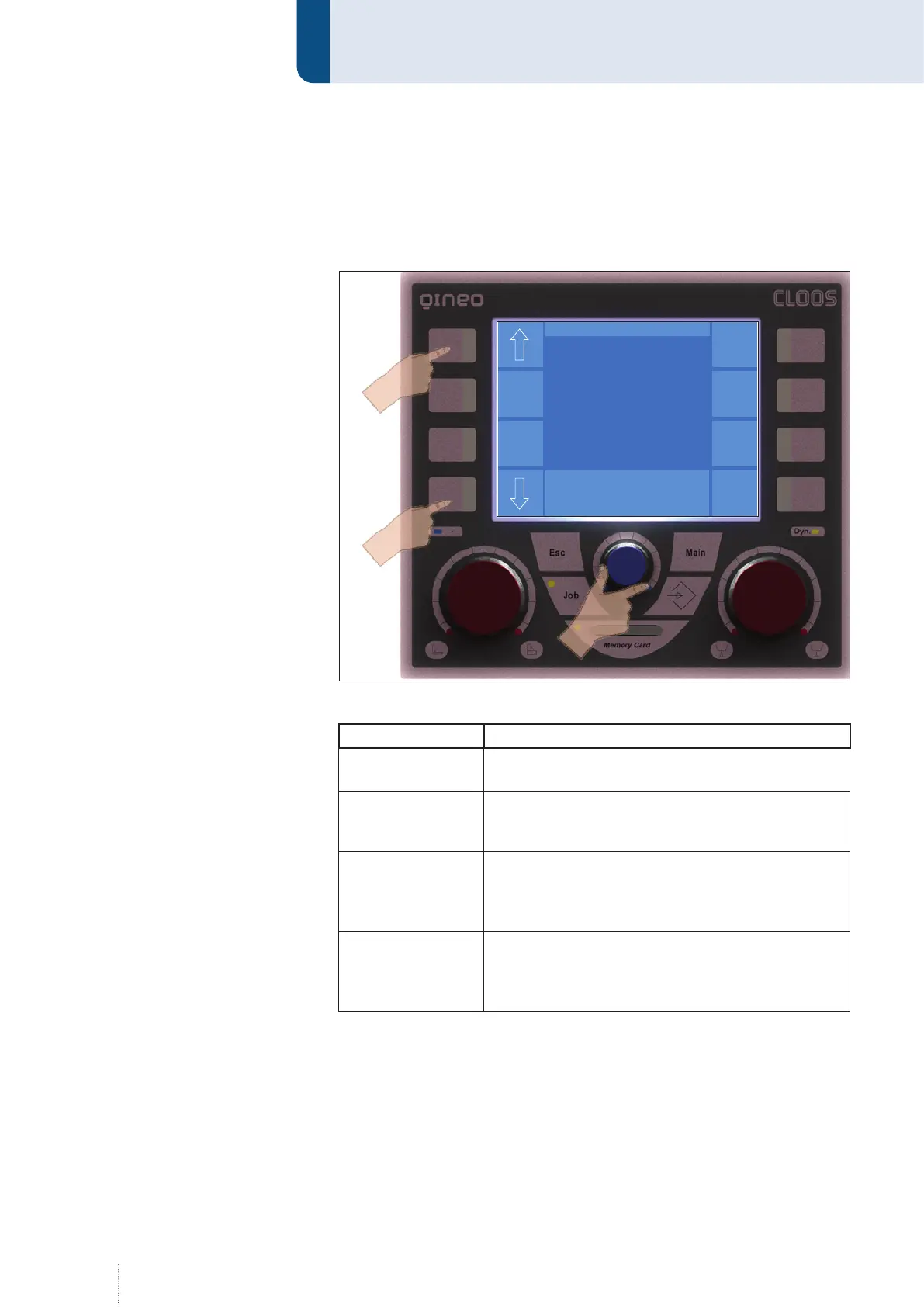

Programmieren – Impulssync.
Programmieren
Impulssynchronisation -
Taktgeber
Puls Extern Job 101
PULS ALTERN.
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
Synchronisations-Modus
Taktgeber
Phasenverschiebung
Alternierend 50%
