Cloos QINEO - Setting Ranges; Input of Setting Ranges

60
MAIN - Progr. (Programming)
7.4 Setting ranges
Setting ranges can be defined for starting power, main power and end
crater power.
Prerequisite for configuring the setting ranges is the "Access management"
or the optional "User management", see section "10.6 Access rights" on
page 83.
7.4.1 Input of setting ranges
In order to be able to input the setting ranges you have to log on as "Con-
figurator" ("MAIN (2)" - "Log on").
The setting ranges are input on the page "MAIN" using the "Progr." func-
tion, see Figure 15.
Use the arrow buttons to select the start, main or end crater power. The
"Setting range" function appears, see Figure 16.
Synergie
Betr.
Verfahren
Funktion
M A I N
Progr.
Messwerte
Anzeige

Puls 4 -Takt
Dyn.
8.5 m / min
-2
4
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
C - Start
Blechdicke 8.5 mm
ASet 230 A
VSet 27.9 V
Synergie
Betr.
Verfahren
Funktion
M A I N
Progr.
Messwerte
Anzeige

Puls 4 -Takt
Dyn.
8.5 m / min
-2
4
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
C - Start
Blechdicke 8.5 mm
ASet 230 A
VSet 27.9 V

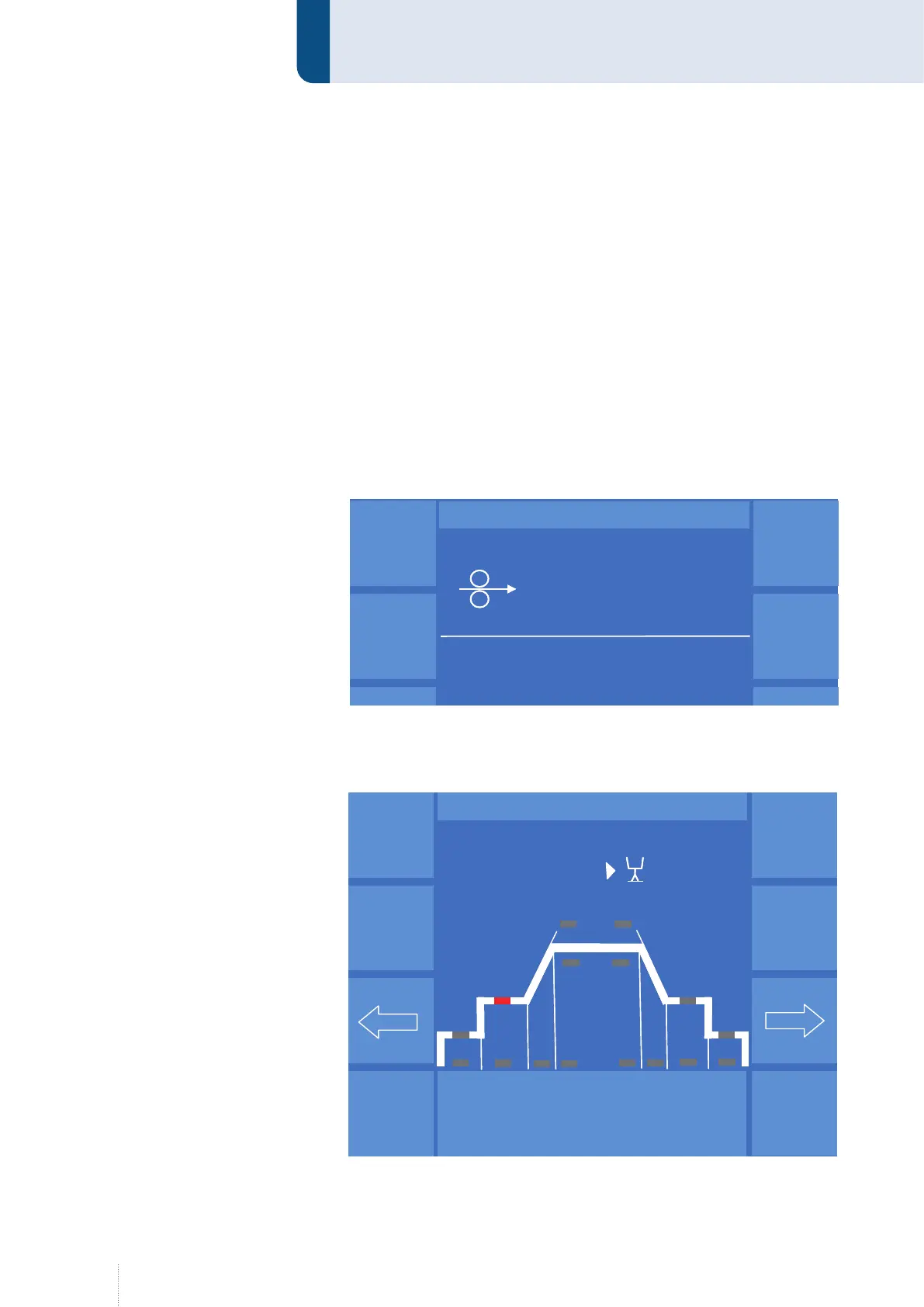

Figure 15. MAIN key Programming
Puls 4 -Takt
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
P R O G R A M M I E R E N
Startleistung
Dyn.
6.0 m/min
-
0 -
6
2
Stell-
bereich
Puls 4 -Takt
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
P R O G R A M M I E R E N
Startleistung
Dyn.
6.0 m/min
-
0 -
6
2
Stell-
bereich
Figure 16. Key F1 Setting range
