QINEO Wire Drive AR4

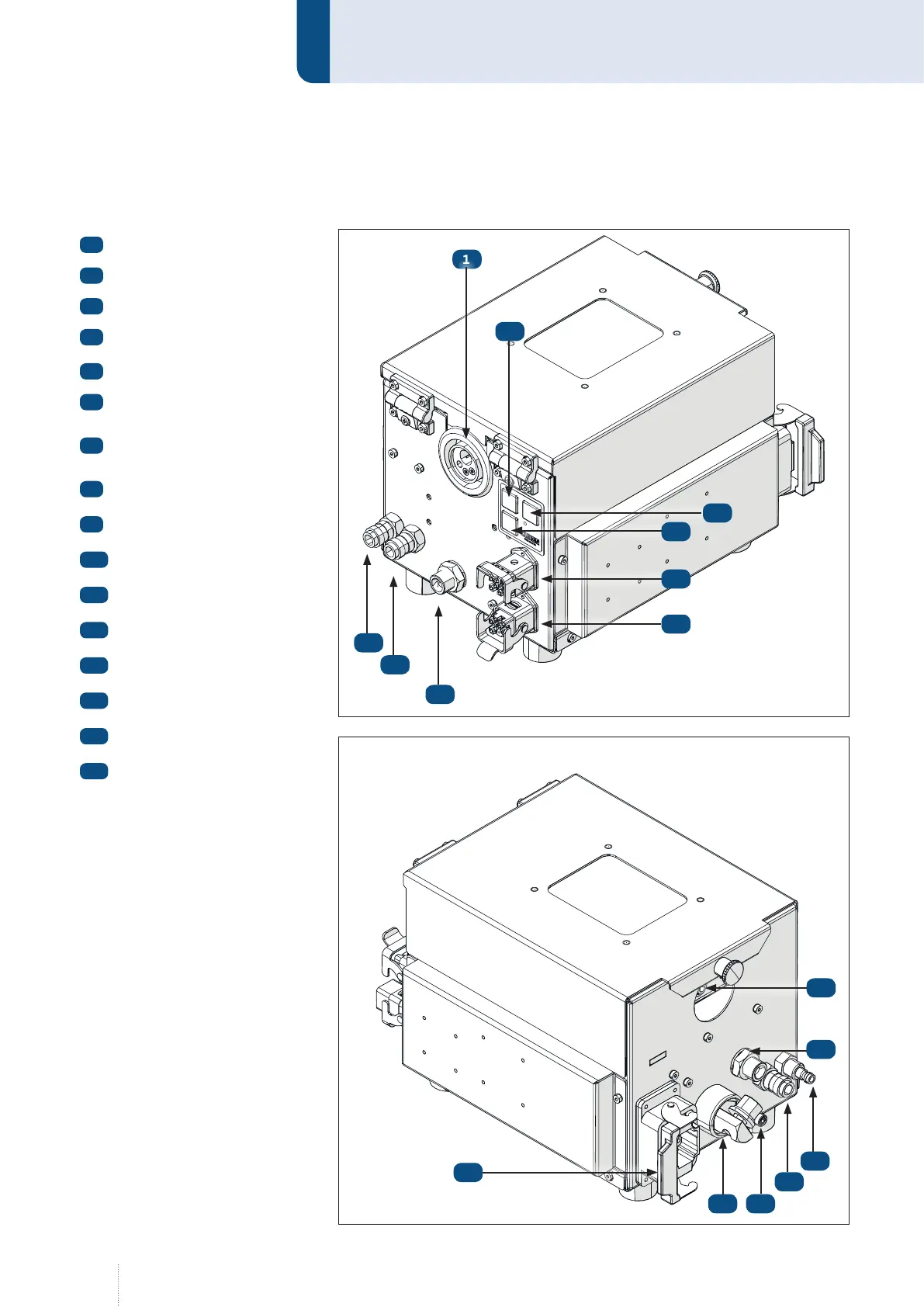

4.1 Connection overview AR4
1
Torch cable assembly connection
2
Button "Wire forward"
3
Button "Gas manually"
4
Button "Wire backward"
5
CDD connection
6
Connection for collision protec-
tion, gas nozzle sensor etc.
7
Connection nipple "blow out"
(optional)
8
Torch cooling flow
9
Torch cooling return
10
Wire inlet
11
Connection nipple "blow out"
12
Cooling water connection
13
Quick coupling water
14
Quick coupling gas
15
Power connection M12x1.5
16
Device connection 24 pole
1
2
3
4
5
6
7
8
9
10
11
12
13
1415
16
