4. Pulse synchronisation
Pulse synchronisation means the time synchronisation of two or more
pulse currents. The pulses are synchronised to constantly reduce the
unavoidable mutual interference to a level as low as possible.
The pulses of the welding power sources can be configured as follows:
• always at the same time (synchronous)
• alternating
• pulses with half of the other pulse frequency
Only the start times of the single pulses are synchronised, not their dura-
tion. This always corresponds to the own pulse time of the machine set by
the synergy characteristic curve.
Every welding power source can set the frequency as pulse generator or, as
pulse receiver, synchronise to the frequency of the pulse generator.
4.1 Configuration

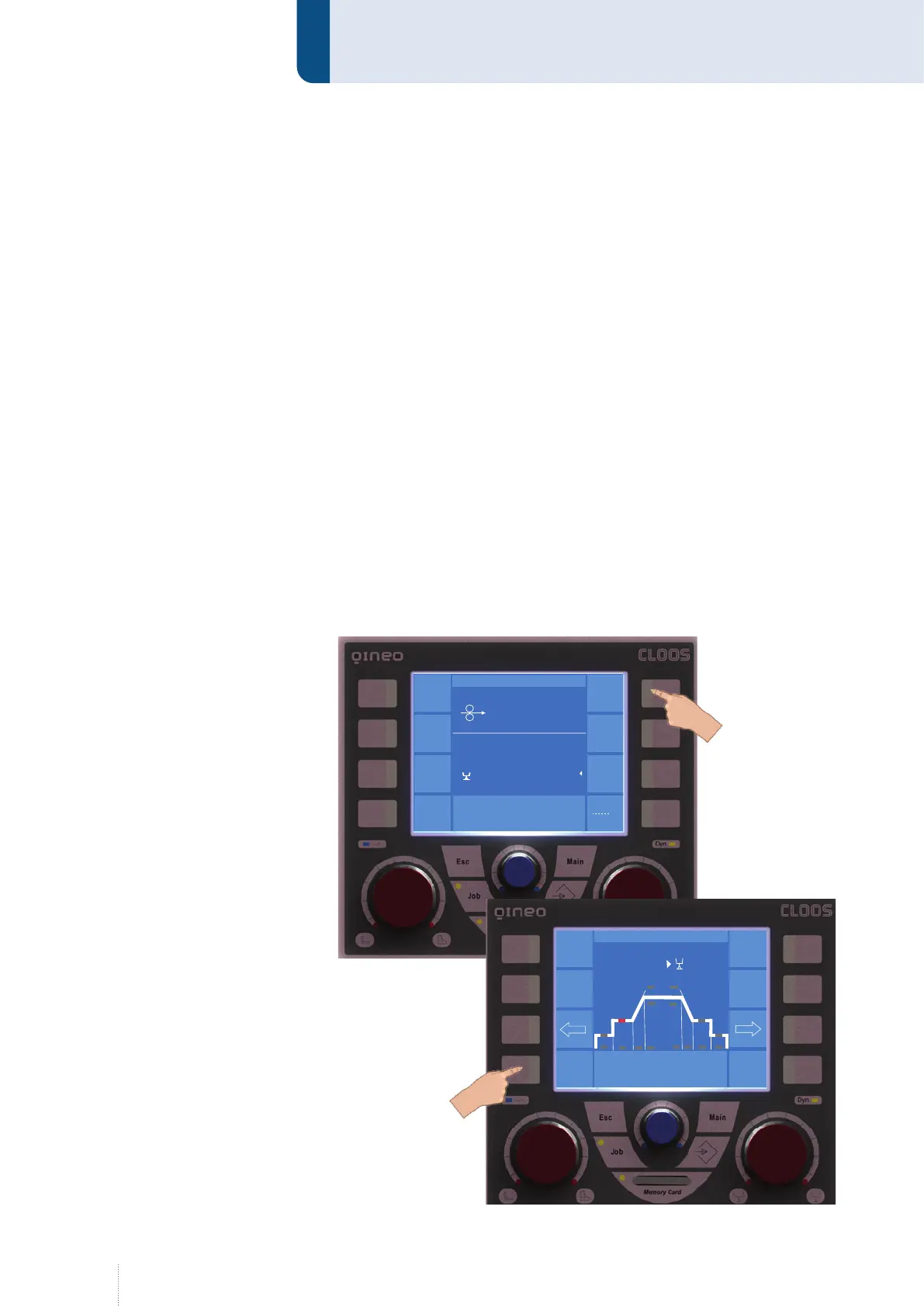

Touch on
"Program"
Touch on
"Pulse Sync."
