This logic rule opens any calling door
Select the Event “Digital input triggered”.
Select the Digital input which is connected to the external door opener switch.
Select Trigger on „Short“. The door open signal is transmitted on closed contact of the switch.
Select the Action “Open SIP Door” 1 (see also ”Example: Door opener function” on page 135) or
“Open Intercom door“ 2 (see also ”Door opener” on page 124).
In the field Open door from origin, enter „Any“.
In the field Door key, select the door key „2“.
➥ Click on Save.
Example 4: Key door opener
After accepting the call, defined doors (A and C) can be opened with the door opener function of the
Duetto device. Door B stays closed. Door B can only be opened witch an “external“ door opener (e.g.
with a mandatory key).
Example “Configuration of determined door opener buttons”
NOTE: Door opener works only with an established connection
To open the door a connection between door station and the DUETTO device has to be established. The
operator has to accept the call before he can use the door opener switch.
NOTE: Open door from origin
Following settings are possible:
Any: The regarding door opener opens for any in the network connected station.
Intercom call number / SIP-URI: The regarding door opener opens only for defined intercom call
number or SIP-URI.
Station 1
Intercom call nr.: 121
or
SIP-URI: 6000@10.10.1.119:5060
Station 2
Intercom call nr.: 122
or
SIP-URI: 6001@10.10.1.122:5060
A B
Door A
Door C
3. Door B opens:
only with door
opener 2
B
3. Door opener 1 opens:
Door A and
Door C
B
A
A
B

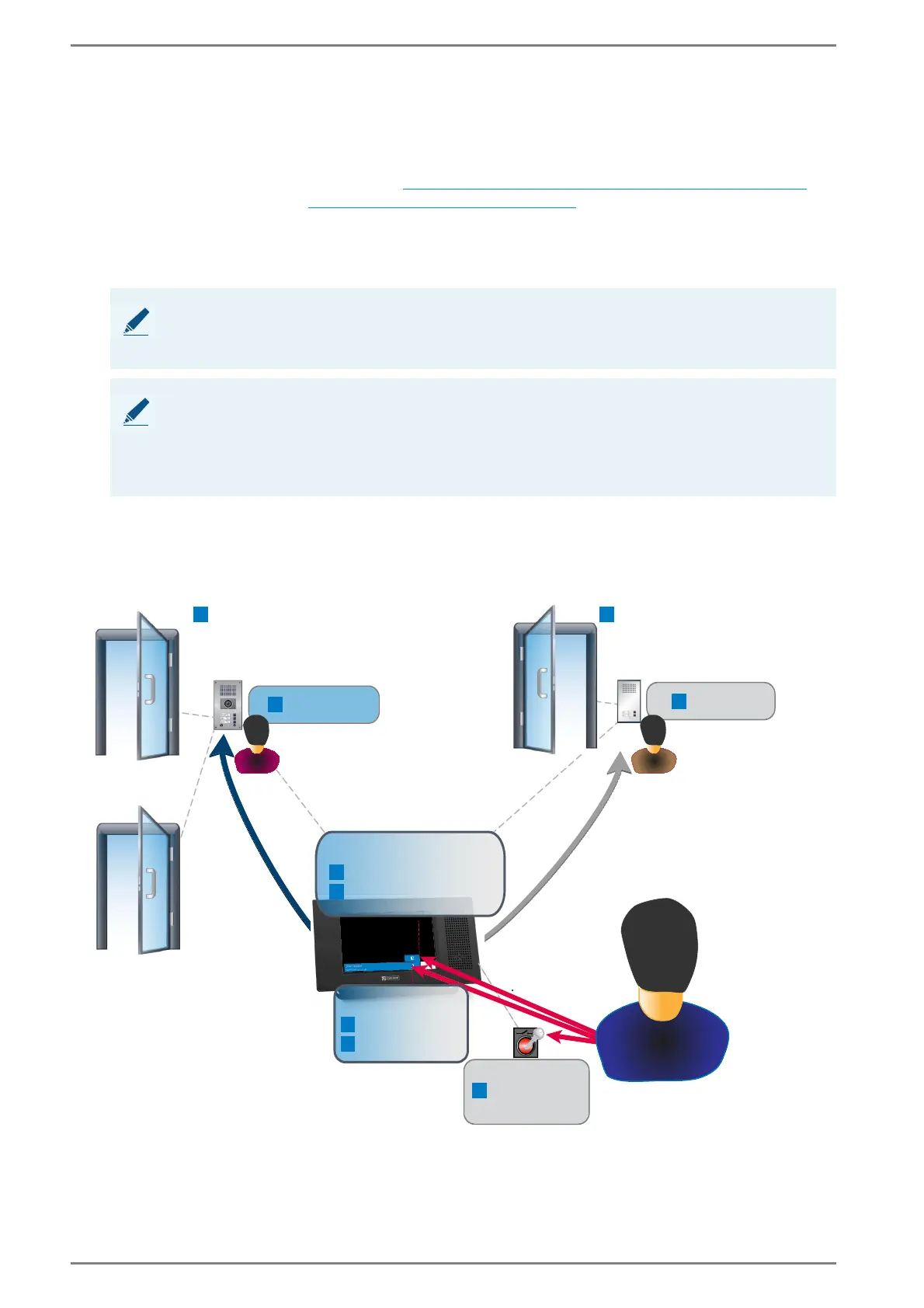

2. Call Acceptance:
of station 1
of station 2
1. Call request
B
1. Call request
A
Door B
