Cooper Security M750 - Option 2-7-3-9 - Built in Tests, Equipment, Test Display; Option 2-7-4: Checking the Status of System Inputs

Engineer Menu 2-7 Engineering Manual
114
Bell Tamp Wards: All
Payment Timer Wards: None
Re-arms Wards: None
Secure Ward Wards: None
Bell & Strobe Wards: All
Foyer Mode Wards: None
Unset Fire Wards: None
...Continued:
Multiply Ack Wards: None
Net
Equipment
(Eng 1-3-1)
All devices All wards
(Eng 1-8-1) Wards All wards
(Eng 1-8-2) Exit Mode Timed Exit
Exit 030 Seconds
Entry 015 Seconds
Bell Delay 000 Seconds
Timers
(Eng 1-8-3)
Bell Duration 015 Minutes
Ward groups
(Eng 1-8-4) Alarm Response Full

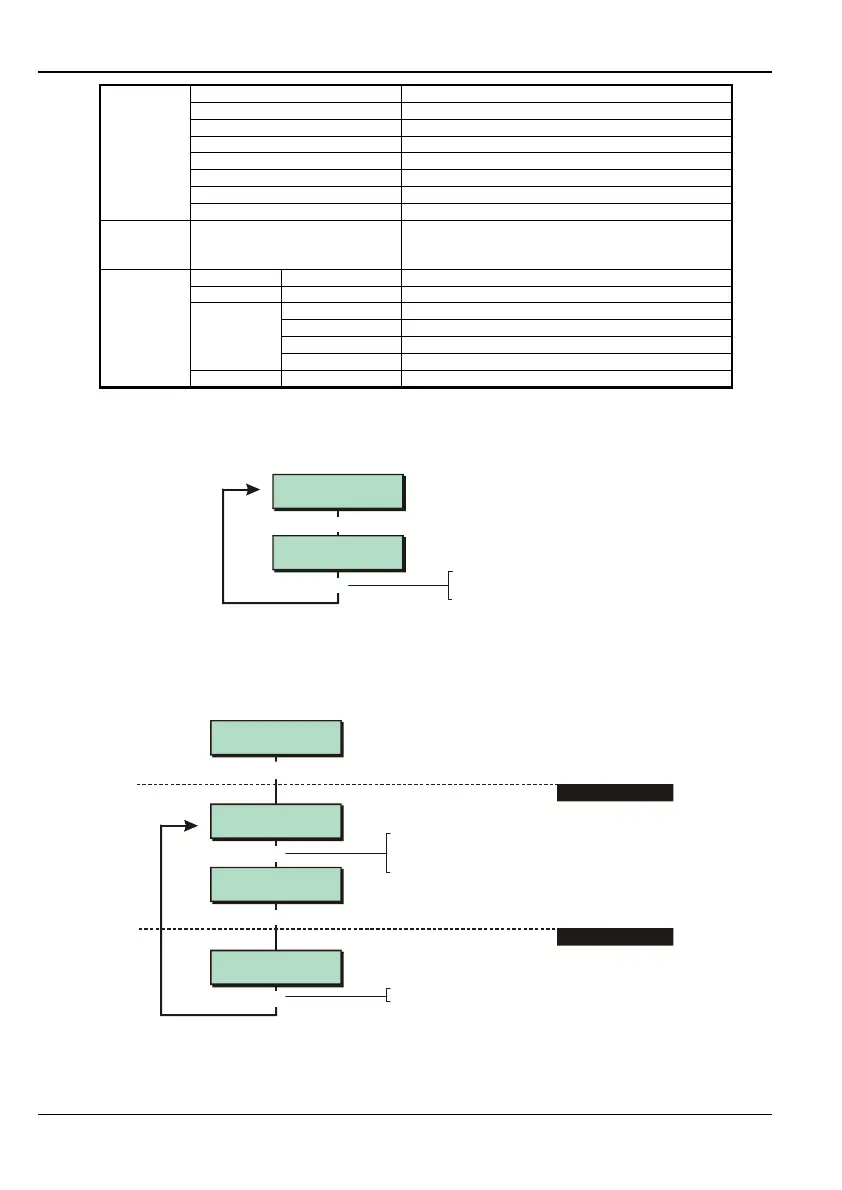

Option 2-7-3-9 – Built In Tests, Equipment, Test Display
Equipment 9
Test Display
[
8888888888888888
8888888888888888
]
Press when you have
finished
[
You can use this option to test the LCD on the keypad you are currently using. The "8"
character should be displayed in each location of the LCD.
Option 2-7-4: Checking the Status of System Inputs
System Inputs 2
Ext L.F. Status
Ext L.Flt Status
PASS
[
1234567890123456
1234567890123456
Built In Tests 4
System Inputs
System Inputs 1
PSTN Line Status
[
|
e.g.
To select input type:
Press or
"
"
|¬ to scroll, or
Press the hot key (1-5)
1. SELECT INPUT TYPE
2. VIEW STATUS
]
Press when you have finished ]
This option enables you to check the status of inputs to the control panel (e.g. the PSTN line
status and the panel lid tamper).
 The PSTN Line Status option is not relevant to M550 and M750 panels.
